LED Mounting Spacer CM00624375 Equivalent & Substitute Parts

Part Overview

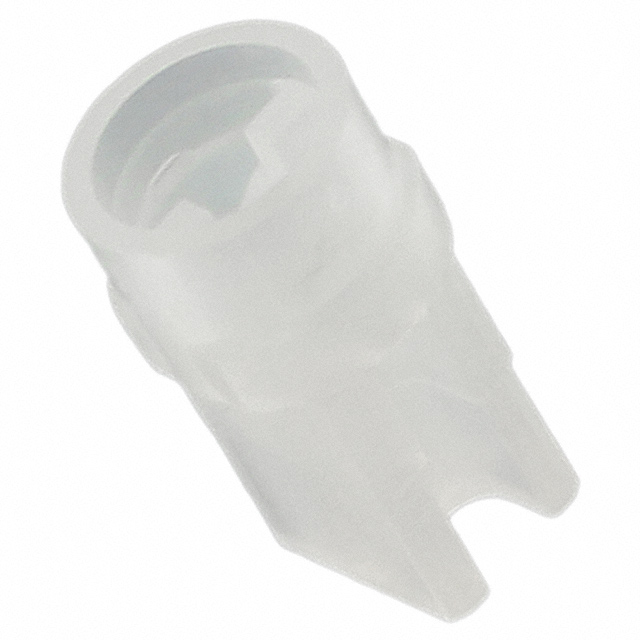

The CM00624375 is a T1/T1 3/4 LED standoff spacer manufactured by Visual Communications Company (VCC). This component functions as a mounting accessory for LED assemblies, providing precise vertical spacing and alignment in electronic applications. The part is constructed from natural nylon material and measures 0.375" (9.53mm) in length.

The CM00624375 carries an Obsolete product status. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or repair requirements for systems utilizing this component.

Substiute Parts

CM00624375

Visual Communications Company - VCCIn Stock: 931CM00624375 Datasheet

Current PartRFQ

461-360

Bivar Inc.In Stock: 932461-360 Datasheet

Parametric EquivalentRFQ

461-380

Bivar Inc.In Stock: 3707461-380 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the CM00624375 are identified based on strict parametric equivalence within the following criteria:

Primary Matching Parameters:

• LED Type Compatibility: T1, T1 3/4
• Material: Nylon
• Color: Natural
• RoHS Compliance: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

Secondary Consideration:

• Length tolerance: Substitute parts must maintain dimensional compatibility within the mechanical constraints of the target application. The CM00624375 specifies 0.375" (9.53mm); substitute parts with lengths of 0.360" (9.14mm) and 0.380" (9.65mm) represent minor dimensional variations acceptable for equivalent mounting functionality.

Both identified substitutes are manufactured by Bivar Inc., carry Active product status, and maintain full compliance with applicable regulatory standards.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Closest Dimensional Match): The 461-380 (Bivar Inc.) provides the closest dimensional equivalence to the CM00624375, with a length of 0.380" (9.65mm) compared to the original 0.375" (9.53mm). This represents a 0.005" (0.127mm) variance. The 461-380 maintains Active product status, ensuring ongoing availability and supply chain support.

For Alternative Spacing Requirements: The 461-360 (Bivar Inc.) offers a length of 0.360" (9.14mm), representing a 0.015" (0.381mm) reduction from the original specification. This part is suitable for applications where reduced standoff height is acceptable or required.

Compliance Verification: Both substitute parts satisfy ROHS3 compliance and MSL 1 (Unlimited) requirements, matching the regulatory profile of the obsolete CM00624375. Selection between 461-360 and 461-380 should be based on specific mechanical clearance and spacing requirements of the target application.

Frequently Asked Questions (FAQ)

Q: Can the 461-360 and 461-380 be used interchangeably with the CM00624375?

A: Both parts share identical LED type compatibility (T1, T1 3/4), material (nylon), color (natural), and regulatory compliance. The primary difference is length: 461-360 measures 0.360" (9.14mm) and 461-380 measures 0.380" (9.65mm), compared to the original 0.375" (9.53mm). Interchangeability depends on the mechanical tolerance of the specific application. The 461-380 provides the closest dimensional match.

Q: Why are there two substitute parts with different lengths?

A: The 461-360 and 461-380 represent the available Bivar Inc. product line for T1/T1 3/4 LED standoffs in natural nylon. Both maintain parametric equivalence in material, color, LED compatibility, and compliance standards. The length variation allows selection based on specific application requirements.

Q: What is the significance of the Active product status for the substitute parts?

A: The 461-360 and 461-380 carry Active product status, indicating current manufacturing and availability. This contrasts with the CM00624375 (Obsolete status), which is no longer produced. Active status ensures reliable supply chain access for ongoing production or repair applications.

Q: Are there packaging differences between the main part and substitutes?

A: The substitute parts (461-360 and 461-380) are packaged in bags. The original CM00624375 packaging specification is not provided in the technical data. Packaging format should be verified against procurement requirements.

Q: Do the substitute parts meet the same regulatory requirements?

A: Yes. Both 461-360 and 461-380 are ROHS3 Compliant and carry MSL 1 (Unlimited) ratings, matching the regulatory profile of the CM00624375. Both parts are suitable for applications requiring equivalent compliance standards.
