CL4490-200-05 Equivalent & Substitute Parts Reference

Part Overview

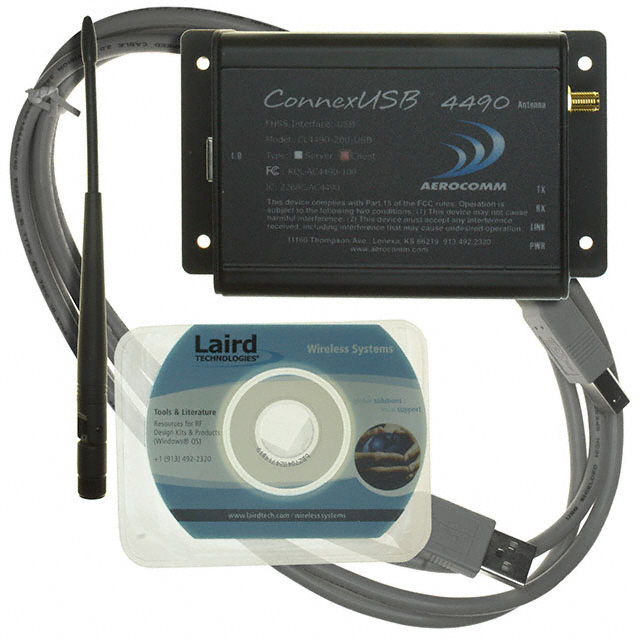

The CL4490-200-05 is an RF transceiver module manufactured by Laird Connectivity Inc., operating in the 902MHz to 928MHz ISM band with FHSS and FSK modulation protocols. This module integrates USB interface connectivity with integrated antenna and delivers 200mW output power at 115.2kbps data rate. The product is classified as obsolete, necessitating identification of active equivalent or substitute components for new designs or ongoing system support.

Substiute Parts

CL4490-200-05

Laird Connectivity Inc.In Stock: 819CL4490-200-05 Datasheet

Current PartRFQ

CL4490-1000-UPR-SP

Laird Connectivity Inc.In Stock: 769CL4490-1000-UPR-SP Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the CL4490-200-05 is determined by the following critical parameters:

Mandatory Compatibility Parameters:

• Frequency band: 902MHz ~ 928MHz (ISM band)
• Modulation protocols: FHSS and FSK support
• Function: RF transceiver capability
• Sensitivity: -99dBm (receiver performance threshold)

Interface and Application Parameters:

• Original interface: USB
• Substitute interfaces: RS-232, RS-485 (alternative serial protocols within same product family)

Performance Trade-offs:

• Power output: 200mW (original) vs. 1000mW (substitute) — higher output available
• Data rate: 115.2kbps (original) vs. 76.8kbps (substitute) — reduced in substitute
• Supply voltage: 5V (original) vs. 7V ~ 18V (substitute) — wider range in substitute

The CL4490-1000-UPR-SP operates within the same Connexlink™ series and maintains core RF parameters (frequency, modulation, sensitivity) while offering active product status and improved environmental compliance.

Parameter Comparison

Engineering Selection Recommendations

For Obsolete Product Replacement:

The CL4490-200-05 is classified as obsolete and no longer in active production. The CL4490-1000-UPR-SP is the active equivalent within the Connexlink™ product family, maintaining identical RF performance specifications (frequency band, modulation protocols, and receiver sensitivity).

Compliance and Regulatory Status:

The CL4490-1000-UPR-SP holds RoHS Compliant certification and EAR99 export classification, providing superior regulatory standing compared to the obsolete status of the original part. The substitute demonstrates improved environmental compliance with MSL 1 (Unlimited) versus MSL 2 (1 Year).

Interface Consideration:

The primary difference is interface protocol: USB (original) versus RS-232/RS-485 (substitute). System integration requires interface adapter or redesign of host communication architecture. This is a design-level decision, not a direct pin-compatible substitution.

Power and Data Rate Trade-off:

The substitute provides 5× higher RF output power (1000mW vs. 200mW) but operates at reduced maximum data rate (76.8kbps vs. 115.2kbps). Applications requiring higher transmit power benefit from the substitute; applications requiring maximum data throughput may require alternative evaluation.

Frequently Asked Questions (FAQ)

Q: Can the CL4490-1000-UPR-SP directly replace the CL4490-200-05 without modification?

A: Direct pin-compatible replacement is not possible due to interface differences (USB vs. RS-232/RS-485). System-level integration changes are required, including host communication protocol adaptation and power supply voltage adjustment (5V to 7V–18V range).

Q: Are the RF performance characteristics identical between these parts?

A: Yes. Both parts operate in the 902MHz–928MHz frequency band, support FHSS and FSK modulation, and deliver -99dBm receiver sensitivity. RF link performance is equivalent.

Q: What is the significance of the MSL rating difference?

A: The CL4490-200-05 has MSL 2 (1 Year shelf life under controlled humidity), while the CL4490-1000-UPR-SP has MSL 1 (Unlimited shelf life). The substitute offers superior moisture tolerance and longer storage capability.

Q: Why does the substitute have lower maximum data rate?

A: The CL4490-1000-UPR-SP operates at 76.8kbps maximum, compared to 115.2kbps for the original. This is a design characteristic of the RS-232/RS-485 interface variant. Applications requiring 115.2kbps throughput must evaluate alternative solutions.

Q: Is the substitute suitable for new product designs?

A: Yes. The CL4490-1000-UPR-SP is active product status with RoHS compliance and EAR99 classification, making it appropriate for new designs. The original CL4490-200-05 is obsolete and unsuitable for new development.

Q: What power supply voltage is required for the substitute?

A: The CL4490-1000-UPR-SP requires 7V to 18V supply, compared to 5V for the original. System power architecture must be adjusted accordingly.
