CL03C2R2BA3GNNC Equivalent & Substitute Parts

Part Overview

The CL03C2R2BA3GNNC is a 2.2 pF ceramic capacitor manufactured by Samsung Electro-Mechanics, rated for 25V with C0G/NP0 temperature coefficient characteristics. This surface mount multilayer ceramic capacitor (MLCC) in 0201 package form factor is designed for general-purpose applications requiring stable capacitance across the operating temperature range of -55°C to 125°C. The part maintains Active product status with 979 units currently in stock. Equivalent and substitute parts are identified to support procurement flexibility, supply chain continuity, and design optimization across multiple manufacturers while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Value	Unit
Capacitance	2.2	pF
Tolerance	±0.1	pF
Voltage - Rated	25	V
Temperature Coefficient	C0G, NP0	—
Operating Temperature Range	-55 to 125	°C
Package / Case	0201 (0603 Metric)	—
Size / Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)	—
Thickness (Max)	0.013"	(0.33mm)
Mounting Type	Surface Mount, MLCC	—
RoHS Status	ROHS3 Compliant	—
Moisture Sensitivity Level (MSL)	1 (Unlimited)	—

Substitute Part Grouping Explanation

Substitution eligibility for the CL03C2R2BA3GNNC is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

Capacitance: 2.2 pF
Tolerance: ±0.1 pF
Voltage Rating: 25V or higher
Temperature Coefficient: C0G or NP0
Operating Temperature Range: -55°C to 125°C
Package / Case: 0201 (0603 Metric)
Physical Dimensions: 0.024" L x 0.012" W (0.60mm x 0.30mm)
Thickness (Max): 0.013" (0.33mm)
Mounting Type: Surface Mount, MLCC
RoHS Compliance: ROHS3 Compliant
Moisture Sensitivity Level: 1 (Unlimited)

Substitute Classification:

Direct Manufacturer Equivalents (identical electrical and mechanical specifications):

GRM0335C1E2R2BA01D (Murata Electronics, 25V rated)

Parametric Equivalents with Higher Voltage Rating (all parameters match or exceed requirements):

GRM0335C1H2R2BA01D (Murata Electronics, 50V rated)

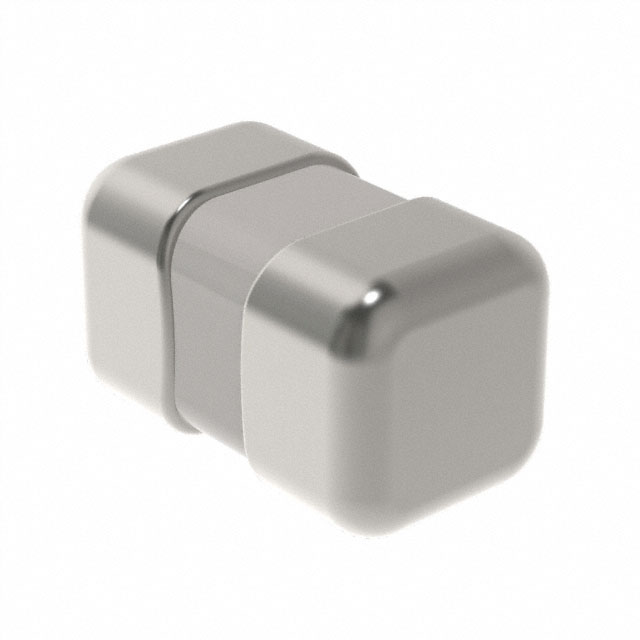

885392004005 (Würth Elektronik, 25V rated)
CBR02C229B3GAC (KEMET, 25V rated)
CC0201BRNPO8BN2R2 (YAGEO, 25V rated)
CQ0201BRNPO8BN2R2 (YAGEO, 25V rated)
GMC02CG2R2B25NT (Cal-Chip Electronics, 25V rated)

All listed substitutes maintain identical capacitance, tolerance, temperature coefficient, package dimensions, and compliance certifications. Voltage rating variations are noted where applicable; higher voltage ratings provide additional design margin without affecting circuit performance in 25V applications.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Capacitance (pF)	Tolerance (pF)	Voltage (V)	Temp Coeff	Package	Size (mm)	Thickness (mm)	RoHS	MSL	Inventory (Pcs)
CL03C2R2BA3GNNC	Samsung Electro-Mechanics	2.2	±0.1	25	C0G, NP0	0201	0.60 x 0.30	0.33	ROHS3	1	979
GRM0335C1E2R2BA01D	Murata Electronics	2.2	±0.1	25	C0G, NP0	0201	0.60 x 0.30	0.33	ROHS3	1	5290
GRM0335C1H2R2BA01D	Murata Electronics	2.2	±0.1	50	C0G, NP0	0201	0.60 x 0.30	0.33	ROHS3	1	91296
885392004005	Würth Elektronik	2.2	±0.1	25	C0G, NP0	0201	0.60 x 0.30	0.33	ROHS3	1	1407
CBR02C229B3GAC	KEMET	2.2	±0.1	25	C0G, NP0	0201	0.60 x 0.30	0.33	ROHS3	1	48070
CC0201BRNPO8BN2R2	YAGEO	2.2	±0.1	25	C0G, NP0	0201	0.60 x 0.30	0.33	ROHS3	1	6099
CQ0201BRNPO8BN2R2	YAGEO	2.2	±0.1	25	C0G, NP0	0201	0.60 x 0.30	0.33	ROHS3	1	98249
GMC02CG2R2B25NT	Cal-Chip Electronics	2.2	±0.1	25	C0G, NP0	0201	0.60 x 0.30	0.33	RoHS	1	481154

Engineering Selection Recommendations

Primary Selection Criteria:

All substitute parts listed maintain Active product status and full compliance with ROHS3 certification requirements. Selection among equivalent parts should be based on the following factors:

Availability and Lead Time: CQ0201BRNPO8BN2R2 (YAGEO) offers the highest inventory level at 98,249 units, followed by GMC02CG2R2B25NT (Cal-Chip Electronics) at 481,154 units. GRM0335C1H2R2BA01D (Murata Electronics) provides 91,296 units with a 50V rating, offering additional voltage margin.

Voltage Rating Consideration: GRM0335C1H2R2BA01D operates at 50V, exceeding the 25V requirement of the original part. This higher rating is electrically compatible with 25V circuit designs and provides enhanced reliability margin in applications subject to transient overvoltage conditions.

Manufacturer Diversity: Substitutes span multiple manufacturers including Murata Electronics, Würth Elektronik, KEMET, YAGEO, and Cal-Chip Electronics, enabling supply chain resilience and reducing single-source dependency.

Moisture Sensitivity: All parts maintain MSL 1 (Unlimited) classification, indicating no moisture sensitivity constraints during storage or handling.

Compliance Status: All substitute parts maintain ROHS3 compliance and REACH Unaffected status, ensuring regulatory alignment with CL03C2R2BA3GNNC.

Frequently Asked Questions (FAQ)

Q: Can GRM0335C1H2R2BA01D (50V rated) be used in place of CL03C2R2BA3GNNC (25V rated)?

A: Yes. The 50V rating of GRM0335C1H2R2BA01D exceeds the 25V requirement and is electrically compatible. All other parameters—capacitance, tolerance, temperature coefficient, package dimensions, and operating temperature range—are identical. The higher voltage rating provides additional design margin without affecting circuit performance.

Q: Are all substitute parts identical in physical dimensions?

A: Yes. All substitute parts conform to the 0201 package specification with dimensions of 0.024" L x 0.012" W (0.60mm x 0.30mm) and maximum thickness of 0.013" (0.33mm). They are mechanically interchangeable on PCB layouts designed for the CL03C2R2BA3GNNC.

Q: What is the difference between C0G and NP0 temperature coefficients?

A: C0G and NP0 designations refer to identical temperature coefficient characteristics. C0G is the EIA standard designation, while NP0 is the IEC standard designation. Both indicate zero temperature coefficient performance across the -55°C to 125°C operating range. The terms are used interchangeably by different manufacturers.

Q: Which substitute part offers the best availability?

A: GMC02CG2R2B25NT (Cal-Chip Electronics) provides the highest inventory at 481,154 units. CQ0201BRNPO8BN2R2 (YAGEO) offers 98,249 units with equivalent specifications. GRM0335C1H2R2BA01D (Murata Electronics) provides 91,296 units with a 50V rating option.

Q: Are all substitute parts RoHS compliant?

A: Yes. All listed substitute parts maintain ROHS3 compliance or equivalent RoHS compliance status, ensuring regulatory alignment with environmental and hazardous substance restrictions.

Q: Can these parts be used in RF or microwave applications?

A: The primary CL03C2R2BA3GNNC is specified for general-purpose applications. However, substitute parts CBR02C229B3GAC (KEMET) and 885392004005 (Würth Elektronik) are specifically rated for RF, Microwave, and High Frequency applications. These variants feature High Q, Low Loss, and Ultra Low ESR characteristics suitable for demanding RF circuit designs while maintaining identical electrical parameters.

Q: What is the significance of MSL 1 (Unlimited) rating?

A: MSL 1 (Unlimited) indicates that the component has no moisture sensitivity constraints. These parts do not require special moisture-controlled storage conditions and can be stored and handled under standard industrial conditions without risk of moisture-induced degradation or solderability issues.
