CJUD688TGWH Equivalent & Substitute Parts

Part Overview

The CJUD688TGWH is a CAT6 modular jack keystone connector insert manufactured by Panduit Corp, designed for 8-position 8-conductor (8p8c) RJ45 Ethernet applications with IDC pressdown termination. The part features a 45-degree angled design for wire management in telecommunications installations. This product is classified as obsolete, necessitating identification of active equivalent alternatives that maintain functional and electrical compatibility for ongoing system deployments and maintenance requirements.

Substiute Parts

CJUD688TGWH

Panduit CorpIn Stock: 1128CJUD688TGWH Datasheet

Current PartRFQ

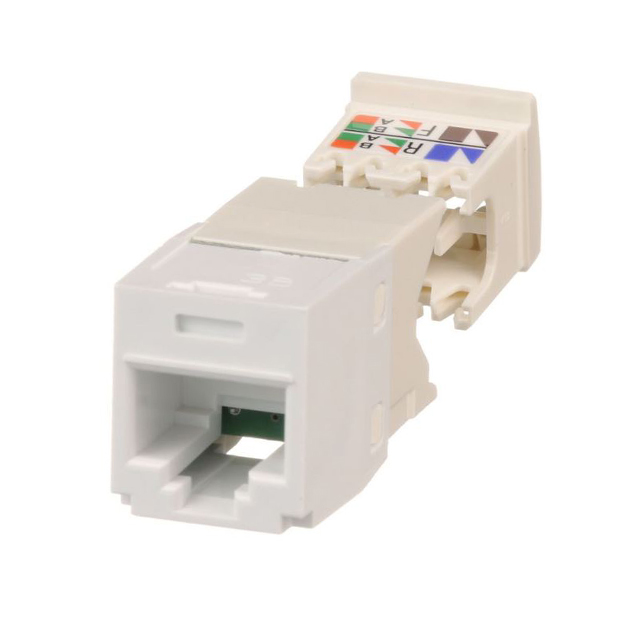

CJ688TGWH

Panduit CorpIn Stock: 1594CJ688TGWH Datasheet

MFR RecommendedRFQ

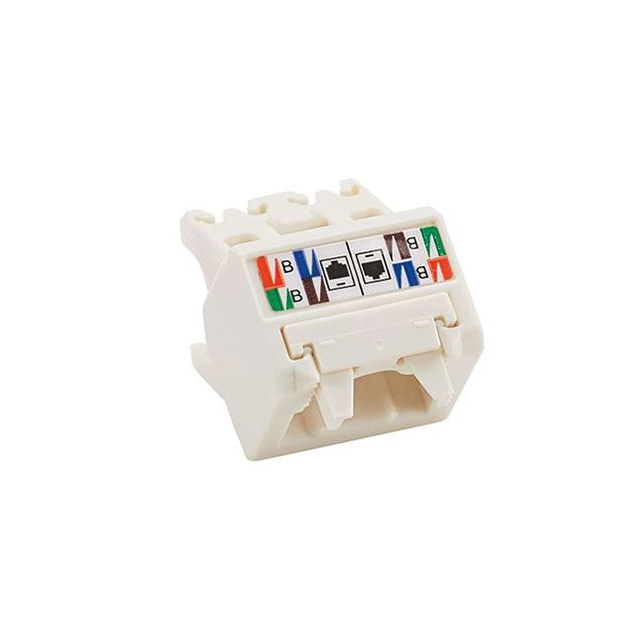

CJUDCAPIW-X

Panduit CorpIn Stock: 1056CJUDCAPIW-X Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the CJUD688TGWH are qualified based on the following electrical and mechanical parameters:

• Connector type: Modular Jack 8p8c (RJ45, Ethernet)
• Termination method: IDC, Pressdown, Punchdown Block
• Electrical rating: Cat6
• Housing color: White
• Operating temperature range: -10°C ~ 65°C or compatible
• RoHS compliance: ROHS3 Compliant
• Manufacturer: Panduit Corp

Two active substitute parts meet these criteria and are available as direct replacements for the obsolete CJUD688TGWH.

Parameter Comparison

Engineering Selection Recommendations

CJ688TGWH is the primary recommended substitute for CJUD688TGWH. Both parts share identical connector type, termination method, Cat6 rating, white housing color, and operating temperature range. CJ688TGWH is manufactured by Panduit Corp with active product status and ROHS3 compliance, ensuring continued availability and regulatory conformance. The part belongs to the Mini-Com® TX6™ PLUS series, representing an active product line evolution.

CJUDCAPIW-X is a secondary substitute option, also manufactured by Panduit Corp with active product status and ROHS3 compliance. This part maintains Cat6 rating and white housing color. However, specific connector and termination type parameters are not provided in the available data, requiring verification against installation requirements before selection.

Both substitute parts are ROHS3 compliant and manufactured by the original equipment manufacturer, supporting regulatory requirements and supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Why is the CJUD688TGWH classified as obsolete? A: The CJUD688TGWH has been discontinued by Panduit Corp. Active substitute parts are available to maintain system compatibility and support ongoing installations.

Q: Can CJ688TGWH directly replace CJUD688TGWH? A: Yes. Both parts are Modular Jack 8p8c (RJ45, Ethernet) connectors with IDC pressdown termination, Cat6 rating, white housing, and identical operating temperature ranges. CJ688TGWH is the recommended direct replacement.

Q: What is the difference between the two substitute parts? A: CJ688TGWH is a fully specified Cat6 RJ45 keystone insert with documented connector and termination types. CJUDCAPIW-X maintains Cat6 rating and white housing but has limited parameter documentation. CJ688TGWH is the preferred choice when full technical specification alignment is required.

Q: Are both substitute parts RoHS compliant? A: Yes. Both CJ688TGWH and CJUDCAPIW-X are ROHS3 compliant, meeting regulatory requirements for electronic component manufacturing.

Q: What is the operating temperature range for substitute parts? A: CJ688TGWH operates within -10°C ~ 65°C, matching the original CJUD688TGWH specification. CJUDCAPIW-X operating temperature is not specified in available documentation.

Q: Are these parts available in bulk packaging? A: Yes. Both substitute parts are available in bulk packaging with current inventory: CJ688TGWH (1495 pcs) and CJUDCAPIW-X (1043 pcs).
