CFM1005S Equivalent & Substitute Parts Reference

Part Overview

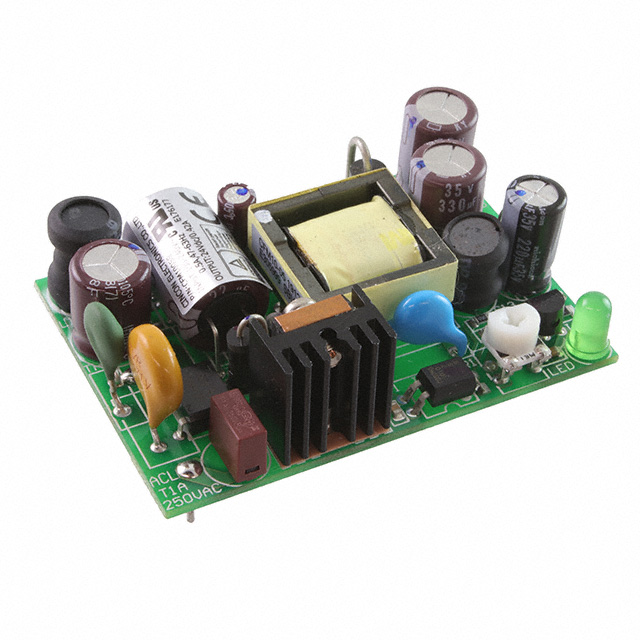

CFM1005S is an open frame AC/DC converter manufactured by Cincon Electronics Co. LTD, primarily designed for ITE (Commercial) applications. It provides a single 24V output at up to 420mA with universal AC input (85–264 VAC) and is rated for 10W continuous power. The product status is Obsolete. Because CFM1005S is no longer in active production, it is necessary to identify suitable substitute models that match the main key electrical and mechanical parameters to maintain compatibility in existing designs.

Substiute Parts

CFM1005S

Cincon Electronics Co. LTDIn Stock: 924CFM1005S Datasheet

Current PartRFQ

CFM06S240

Cincon Electronics Co. LTDIn Stock: 842CFM06S240 Datasheet

MFR RecommendedRFQ

CFM12S240

Cincon Electronics Co. LTDIn Stock: 803CFM12S240 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for CFM1005S are selected based on matching strictly the following key parameters: manufacturer (Cincon Electronics), type (open frame), AC input voltage range (encompassing or matching 85~264 VAC), single 24V output, through hole mounting, module package, and RoHS3 compliance. Substitute models in this category (such as CFM06S240 and CFM12S240) ensure similarity in application, electrical performance, and form factor, providing direct compatibility where CFM1005S was originally specified.

Key parameters considered in grouping:

• Manufacturer: Cincon Electronics Co. LTD
• Type: Open Frame
• Voltage - Input: 85~264 VAC minimum
• Voltage - Output 1: 24V
• Number of Outputs: 1
• Mounting Type: Through Hole
• Package / Case: Module
• RoHS Status: ROHS3 Compliant

Parameter Comparison

Engineering Selection Recommendations

Substitute parts CFM06S240 and CFM12S240 are both RoHS3 compliant and currently active in production. Both provide single 24V outputs, universal AC input, through hole mounting, and module packaging, matching CFM1005S category requirements. Approvals (CE, cURus) are present on all models. For direct functional replacement, select a model that matches or exceeds the output current and power requirements of the original design as specified in the provided parameters. Obsolescence of CFM1005S is the primary driver for substitution.

Frequently Asked Questions (FAQ)

Q1: What parameters are critical when selecting a substitute for CFM1005S?
A1: Substitute selection must be based on manufacturer, type (open frame), AC input range, single 24V output, through hole mounting, module package, RoHS3 compliance, and required approvals.

Q2: Are there differences in mounting or package style among substitutes?
A2: CFM1005S and CFM12S240 share the ‘Module’ package style. CFM06S240 is listed as ‘4-DIP Module’. Verify mechanical fit with PCB footprints as specified.

Q3: Can substitutes provide the same regulatory and environmental certifications?
A3: All listed substitutes are RoHS3 compliant and carry major safety approvals such as CE and cURus.

Q4: How does output power affect substitute selection?
A4: Select a substitute based on the maximum output current and total output power required by the application, ensuring these are not exceeded.

Q5: Are all substitutes suitable for the same application environment?
A5: All listed substitutes are suitable for ITE (Commercial) use, with some models also specified for household appliances. Ensure the intended application matches these parameters.
