Part Overview

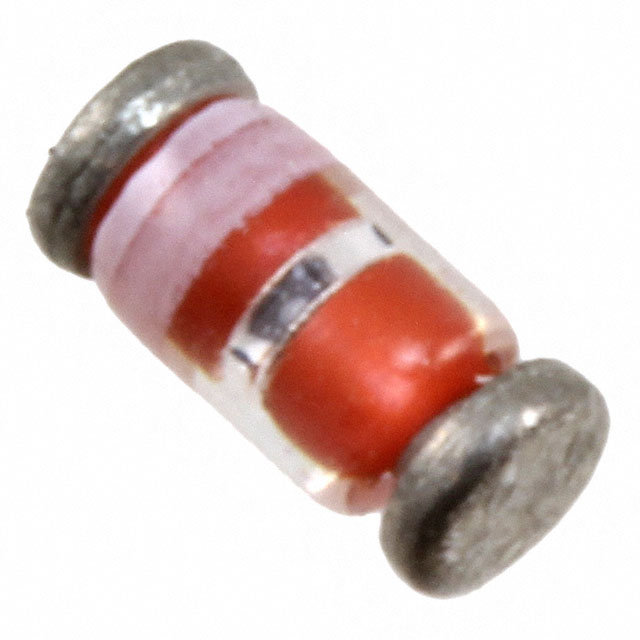

The Microchip Technology CDLL5819E3 is a Schottky diode intended for rectification applications, with a rating of 45 V reverse voltage and 1 A average rectified current in a DO-213AB surface mount, MELF (Glass) package. The product status is Active and suitable for high-speed rectification applications. Selection of alternative models is sometimes necessary to address requirements for military grade, compliance, or specific supply chain considerations while maintaining electrical and mechanical compatibility.

Substiute Parts

CDLL5819E3

Microchip TechnologyIn Stock: 1023CDLL5819E3 Datasheet

Current PartRFQ

JAN1N5819UR-1

Microchip TechnologyIn Stock: 1256JAN1N5819UR-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts are grouped strictly by matching all key parameters, which include diode technology (Schottky), reverse voltage rating, average rectified current, forward voltage drop, reverse leakage, recovery speed, capacitance, mounting type, package/case, and operating temperature range. Compliance and qualification attributes—such as RoHS status and military grade—are included for applications requiring precise certification matching. Only substitute parts with identical electrical and mechanical specifications are considered interchangeable.

Key substitution parameters:

• Technology: Schottky
• Vr (Max): 45 V
• Io: 1A
• Vf @ 1A: 490 mV
• Speed: Fast Recovery ≤ 500ns
• Reverse Leakage @ Vr: 50 µA @ 45 V
• Capacitance: 70pF @ 5V, 1MHz
• Mounting Type: Surface Mount
• Package / Case: DO-213AB, MELF (Glass)
• Operating Temperature: -65°C ~ 125°C
• Compliance: RoHS and REACH status, Qualification (if specified)

Parameter Comparison

Engineering Selection Recommendations

Both CDLL5819E3 and JAN1N5819UR-1 match all key electrical and mechanical parameters required for substitution, including voltage, current, speed, and package. The CDLL5819E3 is ROHS3 compliant, while JAN1N5819UR-1 is RoHS non-compliant but has military qualification (MIL-PRF-19500/586) and a military grade specification. Selection should be based on compliance requirements for RoHS, qualification standards, and inventory status as provided.
