CD214A-FS1150 Equivalent & Substitute Parts Reference

Part Overview

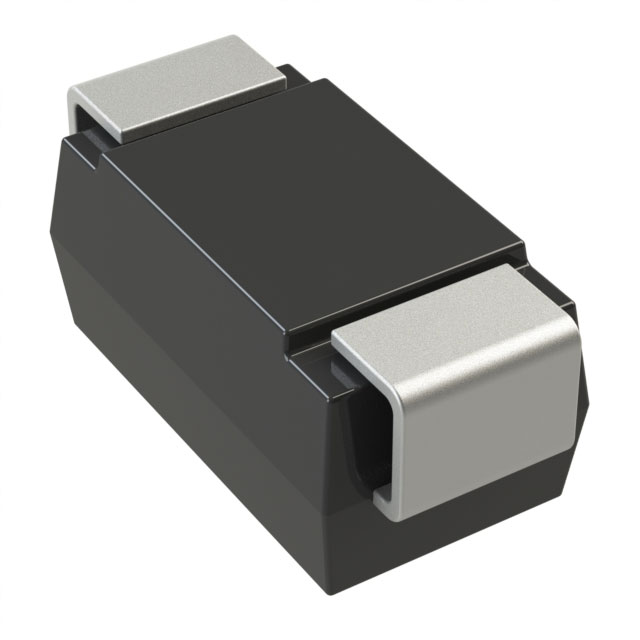

The CD214A-FS1150, manufactured by Bourns Inc., is a diode in the Rectifiers category, specified for a maximum DC reverse voltage of 150 V and an average rectified current of 1 A. It utilizes a DO-214AC (SMA) surface-mount package and is characterized by fast recovery and low reverse leakage. The part status is listed as Obsolete, making the identification and selection of direct equivalent and substitute diodes necessary to ensure continued design support and inventory availability.

Key Parameters

Parameter	Value
Manufacturer Part Number	CD214A-FS1150
Category	Diodes, Rectifiers
Surface Mount Package	DO-214AC (SMA)
Voltage - DC Reverse (Vr) (Max)	150 V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	950 mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	25 ns
Current - Reverse Leakage @ Vr	5 µA @ 150 V
Capacitance @ Vr, F	10pF @ 4V, 1MHz
Mounting Type	Surface Mount
Operating Temperature - Junction	-55°C ~ 150°C
RoHS Status	ROHS3 Compliant
MSL	1 (Unlimited)
REACH Status	REACH Affected

Substitute Part Grouping Explanation

Substitute and equivalent parts for the CD214A-FS1150 are selected strictly on the basis of matching the following key parameters:

Maximum DC reverse voltage of 150 V
Average rectified current of 1 A
Surface mount DO-214AC (SMA) package
Comparable forward voltage at 1 A
Fast recovery speed (recovery time ≤500 ns, >200 mA Io)
Reverse recovery time, reverse leakage current, and capacitance within the specified limit
Operating junction temperature compatible with main part ratings

Parts meeting all of these criteria are included as viable substitutes. Compliance-related parameters (RoHS, REACH, Moisture Sensitivity Level) are also matched where applicable.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Mounting Type	Package / Case	Operating Temperature - Junction	RoHS Status	MSL	REACH Status
CD214A-FS1150	Bourns Inc.	150 V	1A	950 mV @ 1A	≤500ns, >200mA	25 ns	5 µA @ 150 V	10pF @ 4V, 1MHz	Surface Mount	DO-214AC (SMA)	-55°C ~ 150°C	ROHS3 Compliant	1 (Unlimited)	REACH Affected
EGF1C	Fairchild Semiconductor	150 V	1A	1 V @ 1A	≤500ns, >200mA	50 ns	10 µA @ 150 V	15pF @ 4V, 1MHz	Surface Mount	DO-214AC (SMA)	-65°C ~ 175°C	-	-	-
ES1C-E3/5AT	Vishay General Semiconductor	150 V	1A	920 mV @ 1A	≤500ns, >200mA	25 ns	5 µA @ 150 V	10pF @ 4V, 1MHz	Surface Mount	DO-214AC (SMA)	-55°C ~ 150°C	ROHS3 Compliant	1 (Unlimited)	REACH Unaffected
ES1C-E3/61T	Vishay General Semiconductor	150 V	1A	920 mV @ 1A	≤500ns, >200mA	25 ns	5 µA @ 150 V	10pF @ 4V, 1MHz	Surface Mount	DO-214AC (SMA)	-55°C ~ 150°C	ROHS3 Compliant	1 (Unlimited)	REACH Unaffected
ESH1C-E3/61T	Vishay General Semiconductor	150 V	1A	900 mV @ 1A	≤500ns, >200mA	25 ns	1 µA @ 150 V	-	Surface Mount	DO-214AC (SMA)	-55°C ~ 175°C	ROHS3 Compliant	1 (Unlimited)	REACH Unaffected
ES1C	Taiwan Semiconductor	150 V	1A	950 mV @ 1A	≤500ns, >200mA	35 ns	5 µA @ 150 V	16pF @ 4V, 1MHz	Surface Mount	DO-214AC (SMA)	-55°C ~ 150°C	ROHS3 Compliant	1 (Unlimited)	REACH Unaffected
ES1C_R1_00001	Panjit International Inc.	150 V	1A	950 mV @ 1A	≤500ns, >200mA	35 ns	1 µA @ 150 V	7pF @ 4V, 1MHz	Surface Mount	DO-214AC (SMA)	-55°C ~ 150°C	ROHS3 Compliant	1 (Unlimited)	REACH Unaffected

Engineering Selection Recommendations

Select substitute diodes for the CD214A-FS1150 by matching part status (obsolete or active), RoHS compliance, Moisture Sensitivity Level, and REACH status. Diodes ES1C-E3/5AT, ES1C-E3/61T, ESH1C-E3/61T, ES1C, and ES1C_R1_00001 are ROHS3 compliant, have a Moisture Sensitivity Level of 1 (Unlimited), and are listed as active, making them suitable equivalent choices. Ensure that certification parameters match specific project and environmental requirements.

Frequently Asked Questions (FAQ)

Q: What parameters must match when substituting CD214A-FS1150?
A: Substitute diodes must match voltage rating (150 V), current rating (1 A), surface-mount DO-214AC (SMA) package, forward voltage, fast recovery, reverse recovery time, and compliance certifications. All provided substitutes meet these criteria.

Q: Is package compatibility important?
A: Yes, all substitute diodes listed use the DO-214AC (SMA) package, suitable for direct replacement on existing surface mount PCB footprints.

Q: Do all substitute parts have the same operating temperature range?
A: Substitute parts meet or exceed the main part’s junction temperature rating of -55°C to 150°C. Some substitutes offer extended ranges as specified.

Q: How do I confirm RoHS and REACH compliance for substitutes?
A: Refer to each part’s stated RoHS and REACH status. All parts listed, except where unspecified, are ROHS3 compliant and have specified REACH status.

Q: Are there differences in reverse recovery time or capacitance among substitutes?
A: Minor parameter variations exist among substitutes, such as reverse recovery time and capacitance, but all remain within the fast recovery diode category and do not exceed the main part’s specified limits.
