CD11.4599.151 Equivalent & Substitute Parts

Part Overview

The CD11.4599.151 is a Power Entry Connector Receptacle module manufactured by SCHURTER Inc., conforming to IEC 320-C14 specifications. This component functions as a panel-mount power inlet with integrated filtering, switching, and fuse accommodation capabilities for AC power distribution in industrial and commercial applications.

The CD11.4599.151 carries an Obsolete product status. Locating equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or field replacement requirements for systems utilizing this connector module.

Substiute Parts

CD11.4599.151

SCHURTER Inc.In Stock: 906CD11.4599.151 Datasheet

Current PartRFQ

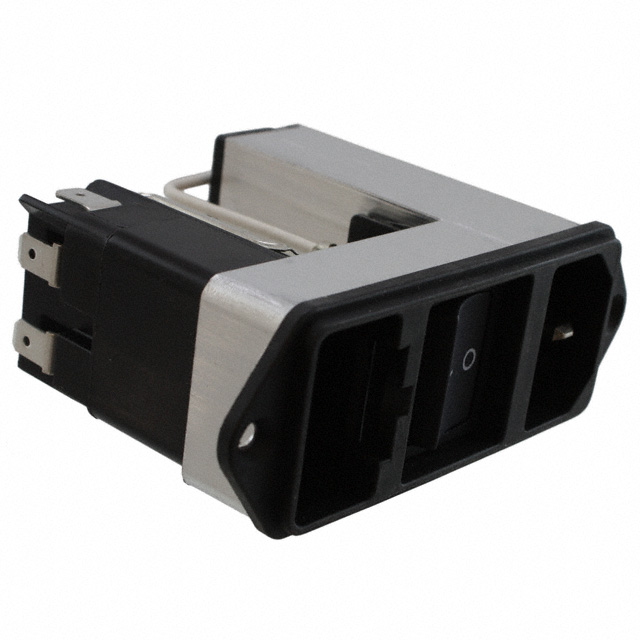

CD14.4101.151

SCHURTER Inc.In Stock: 1564CD14.4101.151 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the CD11.4599.151 is determined by strict equivalence across the following critical parameters:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades - Module
• Current Rating - Appliance Inlet: 10A
• Voltage Rating - Appliance Inlet: 250VAC
• Number of Positions: 3
• Filter Type: Filtered (EMI, RFI) - Commercial
• Current Rating - Filter: 1A
• Switch Features: Switch On-Off
• Mounting Type: Panel Mount, Flange
• Termination: Quick Connect - 0.189" (4.8mm)
• Material Flammability Rating: UL94 V-0
• Ingress Protection: IP40

The CD14.4101.151 meets all specified electrical and mechanical parameters, maintaining functional and dimensional compatibility with the obsolete CD11.4599.151. Both components are manufactured by SCHURTER Inc. and share identical core specifications for power handling, filtering, switching, and panel integration.

Parameter Comparison

Engineering Selection Recommendations

The CD14.4101.151 is the direct substitute for the obsolete CD11.4599.151. Both components maintain identical electrical ratings, filtering specifications, switching functionality, and mechanical mounting characteristics. The substitute part carries Active product status, ensuring ongoing availability and supply chain support.

Both parts comply with ROHS3 requirements and hold ENEC certification. The CD14.4101.151 carries cULus approval, providing equivalent regulatory compliance to the original part's cURus designation. Selection of the CD14.4101.151 eliminates obsolescence risk while preserving all functional and dimensional compatibility requirements for panel-mount power entry applications.

Frequently Asked Questions (FAQ)

Q: Can CD14.4101.151 be used as a direct replacement for CD11.4599.151?

A: Yes. Both components share identical specifications across all critical electrical and mechanical parameters: IEC 320-C14 connector style, 10A current rating, 250VAC voltage rating, filtered EMI/RFI design, on-off switching, panel mount flange configuration, and quick-connect termination. Functional and dimensional compatibility is complete.

Q: What is the primary difference between these two parts?

A: The CD11.4599.151 is Obsolete, while the CD14.4101.151 is Active. The substitute part offers continued availability and supply chain support. Minor differences exist in fuse holder configuration (drawer sold separate vs. fuse holder included) and packaging (bulk vs. unspecified), but core electrical and mechanical function remains identical.

Q: Are regulatory certifications equivalent between the two parts?

A: Both parts hold ENEC certification and ROHS3 compliance. The CD11.4599.151 carries cURus approval, while the CD14.4101.151 carries cULus approval. Both certifications provide equivalent regulatory standing for AC power connector applications in their respective markets.

Q: What panel cutout dimensions are required for installation?

A: The panel cutout dimension is Rectangular - 28.50mm x 67.50mm for both parts. The CD11.4599.151 specifies a panel thickness of 0.315" (8.00mm). Panel thickness specification is not provided for the CD14.4101.151, but mechanical compatibility is maintained across standard industrial panel thicknesses.

Q: Are there inventory considerations when selecting between these parts?

A: The CD14.4101.151 is currently in stock with 1481 pieces available as new original inventory. The CD11.4599.151, being obsolete, has limited availability. For new designs or ongoing production, the CD14.4101.151 is the recommended selection to ensure supply continuity.
