CC45SL3FD150JYVNA Equivalent & Substitute Parts

Part Overview

The CC45SL3FD150JYVNA is a 15 pF ceramic capacitor rated at 3000V (3kV) manufactured by TDK Corporation in the CC45 series. This high-voltage, low-dissipation-factor capacitor is designed for general-purpose applications requiring radial disc configuration with through-hole mounting. The part is currently active in production with 838 units in stock. Alternative models may be required due to inventory constraints, packaging format availability, or voltage rating requirements for specific circuit designs.

Key Parameters

Parameter	Value
Capacitance	15 pF
Tolerance	±5%
Voltage Rating	3000V (3kV)
Temperature Coefficient	SL
Operating Temperature Range	-25°C ~ 125°C
Mounting Type	Through Hole
Package Type	Radial, Disc
Lead Style	Formed Leads - Kinked
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution for the CC45SL3FD150JYVNA is determined by the following criteria:

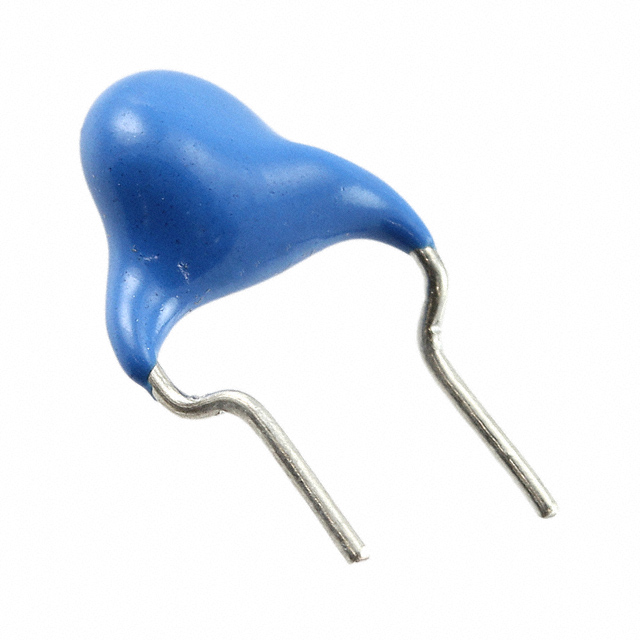

Parametric Equivalents maintain identical electrical specifications: 15 pF capacitance, ±5% tolerance, 3000V voltage rating, SL temperature coefficient, and -25°C ~ 125°C operating range. These parts differ only in packaging format (Bulk) or minor lead configuration variants. Parametric equivalents include CC45SL3FD150JYGNA and CC45SL3FD150JYNNA.

Manufacturer Recommended Substitutes provide higher voltage ratings (6000V) while maintaining the same capacitance value, tolerance, temperature coefficient, and operating temperature range. These parts are CC45SL3JD150JYNNA and CC45SL3JD150JYVNA. The increased voltage rating allows operation in higher-voltage circuit environments. Physical dimensions increase to accommodate the higher voltage rating.

All substitute parts share the same series designation (CC45), through-hole mounting configuration, radial disc package style, and RoHS3 compliance status.

Parameter Comparison

Parameter	CC45SL3FD150JYVNA (Main)	CC45SL3FD150JYNNA	CC45SL3FD150JYGNA	CC45SL3JD150JYNNA	CC45SL3JD150JYVNA
Capacitance	15 pF	15 pF	15 pF	15 pF	15 pF
Tolerance	±5%	±5%	±5%	±5%	±5%
Voltage Rating	3000V	3000V	3000V	6000V	6000V
Temperature Coefficient	SL	SL	SL	SL	SL
Operating Temperature	-25°C ~ 125°C	-25°C ~ 125°C	-25°C ~ 125°C	-25°C ~ 125°C	-25°C ~ 125°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package Type	Radial, Disc	Radial, Disc	Radial, Disc	Radial, Disc	Radial, Disc
Size Diameter	0.217" (5.50mm)	0.217" (5.50mm)	0.217" (5.50mm)	0.295" (7.50mm)	0.295" (7.50mm)
Height - Seated (Max)	0.374" (9.50mm)	0.374" (9.50mm)	0.374" (9.50mm)	0.453" (11.50mm)	0.453" (11.50mm)
Lead Spacing	0.295" (7.50mm)	0.295" (7.50mm)	0.295" (7.50mm)	0.295" (7.50mm)	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked	Formed Leads - Kinked	Formed Leads - Kinked	Formed Leads - Kinked	Formed Leads - Kinked
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Packaging Format	Bulk	Bulk	Bulk	Bulk	Cut Tape (CT)
Inventory Status	838 Pcs	2684 Pcs	1946 Pcs	3569 Pcs	2519 Pcs

Engineering Selection Recommendations

For Direct Replacement (Same Voltage Rating): CC45SL3FD150JYNNA and CC45SL3FD150JYGNA are parametric equivalents suitable for direct substitution in circuits designed for 3000V operation. Both maintain identical electrical characteristics and physical lead spacing. Selection between these options depends on packaging format requirements and inventory availability.

For Higher Voltage Applications: CC45SL3JD150JYNNA and CC45SL3JD150JYVNA provide 6000V voltage rating while maintaining the same 15 pF capacitance and ±5% tolerance. These parts are suitable for circuits requiring enhanced voltage margin or operation in higher-voltage environments. Physical dimensions increase to 0.295" diameter and 0.453" height; verify PCB layout compatibility before selection.

All substitute parts maintain ROHS3 compliance and active product status. Inventory levels are sufficient for production requirements across all options.

Frequently Asked Questions (FAQ)

Q: Can CC45SL3JD150JYNNA or CC45SL3JD150JYVNA be used as direct replacements for CC45SL3FD150JYVNA?

A: These parts are functionally compatible for circuits designed for 3000V operation, as they provide higher voltage rating (6000V) with identical capacitance and tolerance. However, physical dimensions are larger (0.295" diameter vs. 0.217"), requiring PCB layout verification to confirm mounting hole spacing and component clearance compatibility.

Q: What is the difference between CC45SL3FD150JYNNA and CC45SL3FD150JYGNA?

A: Both are parametric equivalents with identical electrical specifications and physical dimensions. The difference lies in internal manufacturing or lead configuration variants. Both are suitable for direct substitution in the same circuit application.

Q: Does packaging format (Bulk vs. Cut Tape) affect electrical performance?

A: No. Packaging format affects only handling, storage, and assembly process compatibility. Electrical and mechanical specifications remain identical. CC45SL3JD150JYVNA in Cut Tape format is electrically equivalent to CC45SL3JD150JYNNA in Bulk format.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All listed substitute parts, including the main part CC45SL3FD150JYVNA, are ROHS3 compliant and suitable for applications requiring RoHS certification.

Q: What determines whether a part can substitute for CC45SL3FD150JYVNA?

A: Substitution is determined by matching capacitance (15 pF), tolerance (±5%), temperature coefficient (SL), operating temperature range (-25°C ~ 125°C), through-hole mounting type, radial disc package configuration, and lead spacing (0.295"). Voltage rating may be equal or higher. Physical dimensions must be compatible with PCB layout.
