CC45SL3AD331JYNNA Equivalent & Substitute Parts

Part Overview

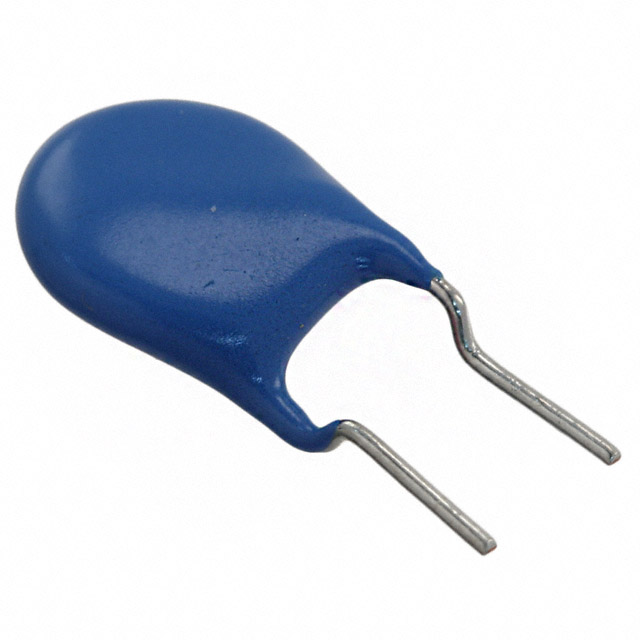

The CC45SL3AD331JYNNA is a 330 pF ceramic capacitor rated at 1000V (1kV) manufactured by TDK Corporation. This through-hole radial disc capacitor is designed for general-purpose applications requiring high voltage performance with low dissipation factor characteristics. The part maintains Active product status with 1445 units currently in stock. Alternative equivalent parts may be required due to inventory constraints, supply chain considerations, or specific procurement requirements.

Substiute Parts

CC45SL3AD331JYNNA

TDK CorporationIn Stock: 1469CC45SL3AD331JYNNA Datasheet

Current PartRFQ

CC45SL3AD331JYVNA

TDK CorporationIn Stock: 2777CC45SL3AD331JYVNA Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the CC45SL3AD331JYNNA is determined by strict equivalence across the following critical parameters:

• Capacitance Value: 330 pF (exact match required)
• Tolerance: ±5% (exact match required)
• Voltage Rating: 1000V (1kV) (exact match required)
• Temperature Coefficient: SL (exact match required)
• Operating Temperature Range: -25°C ~ 125°C (exact match required)
• Mounting Type: Through Hole (exact match required)
• Package Configuration: Radial, Disc (exact match required)
• Lead Style: Formed Leads - Kinked (exact match required)
• Compliance Standards: ROHS3 Compliant, REACH Unaffected (exact match required)

The substitute part CC45SL3AD331JYVNA meets all specified parameters and qualifies as a parametric equivalent.

Parameter Comparison

Engineering Selection Recommendations

Both the CC45SL3AD331JYNNA and CC45SL3AD331JYVNA are Active products manufactured by TDK Corporation within the CC45 series. Both parts maintain identical electrical specifications, mechanical dimensions, and compliance certifications (ROHS3 Compliant, REACH Unaffected). Selection between these parts may be based on inventory availability, with the substitute part currently offering higher stock levels (2740 units versus 1445 units). Both parts are suitable for direct substitution in applications requiring 330 pF capacitance at 1000V with SL temperature coefficient characteristics.

Frequently Asked Questions (FAQ)

Q: Can CC45SL3AD331JYVNA be used as a direct replacement for CC45SL3AD331JYNNA?

A: Yes. Both parts are parametric equivalents with identical capacitance (330 pF), voltage rating (1000V), tolerance (±5%), temperature coefficient (SL), operating temperature range (-25°C ~ 125°C), and physical dimensions. They share the same through-hole radial disc package configuration with kinked formed leads and identical lead spacing (5.00mm).

Q: Are there any differences in compliance or certifications between these parts?

A: No. Both parts carry identical compliance status: ROHS3 Compliant and REACH Unaffected. Both are classified under ECCN EAR99 and HTSUS 8532.24.0060.

Q: What determines substitution eligibility for this capacitor?

A: Substitution requires exact matching of capacitance value, tolerance, voltage rating, temperature coefficient, operating temperature range, mounting type, package configuration, lead style, and compliance certifications. Any deviation in these parameters disqualifies a part from direct substitution.

Q: Are the physical dimensions identical between both parts?

A: Yes. Both parts have identical dimensions: 0.394" diameter (10.00mm), maximum seated height of 0.551" (14.00mm), and lead spacing of 0.197" (5.00mm). Both use formed leads with kinked style.

Q: What is the difference between these two part numbers?

A: The part numbers differ only in the suffix characters (JYNNA versus JYVNA). All electrical, mechanical, and compliance specifications are identical. The difference may reflect internal TDK manufacturing or packaging variations that do not affect functional performance or interchangeability.
