Equivalent & Substitute Parts for CB20220807

Part Overview

The CB20220807 is an 8-circuit barrier block connector manufactured by Eaton - Electronics Division, part of the Magnum® CB2000 series. This terminal block features 0.375" (9.53mm) pitch spacing with screw termination on the top and PC pin termination on the bottom. The component is designed for applications requiring secure wire termination with electrical isolation between circuits.

The CB20220807 maintains Active product status with 726 units in current inventory. Identifying equivalent substitute parts is necessary to ensure supply chain continuity, evaluate alternative sourcing options, and confirm compatibility across different manufacturing environments while maintaining identical electrical and mechanical performance.

Substiute Parts

CB20220807

Eaton - Electronics DivisionIn Stock: 781CB20220807 Datasheet

Current PartRFQ

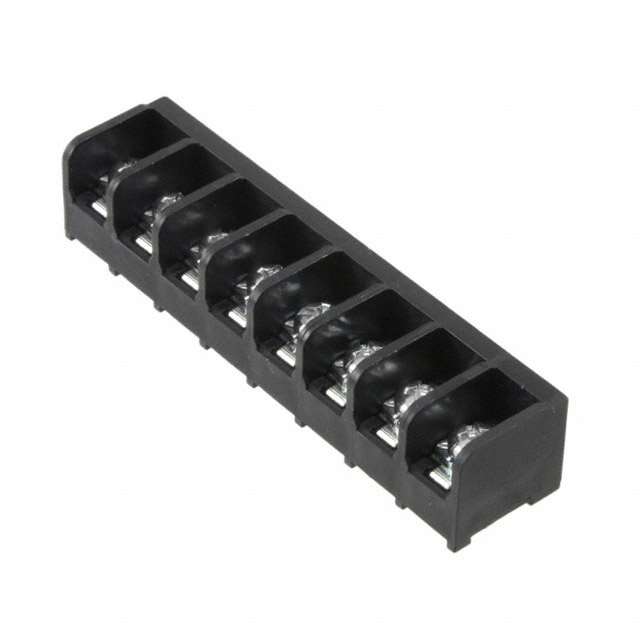

6PCV-08-006

TE Connectivity AMP ConnectorsIn Stock: 74716PCV-08-006 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the CB20220807 are identified based on strict electrical and mechanical compatibility criteria. The following parameters must align for a part to function as a direct substitute:

Critical Matching Parameters:

• Terminal block type (Barrier Block)
• Number of circuits (8)
• Pitch spacing (0.375" / 9.53mm)
• Number of rows (1)
• Wire gauge range (12-22 AWG)
• Voltage rating (300V minimum)
• Bottom termination (PC Pin)
• Barrier type (3 Wall / Tri)
• Mounting type (Through Hole)
• Flammability rating (UL94 V-0)
• RoHS compliance status

The substitute part 6PCV-08-006 manufactured by TE Connectivity AMP Connectors satisfies all critical matching parameters. This part maintains identical circuit count, pitch spacing, wire gauge compatibility, voltage rating, barrier configuration, and regulatory compliance. Variations in current rating and top termination design do not prevent functional substitution when application requirements are within the lower current specification.

Parameter Comparison

Engineering Selection Recommendations

Both the CB20220807 and 6PCV-08-006 maintain Active product status with established supply availability. Selection between these parts is determined by application-specific current requirements and design constraints.

CB20220807 Selection Criteria: The Eaton component is specified when applications require the full 30A current rating or when the captive plate screw termination design is required for mechanical assembly procedures. This part supports the extended operating temperature range of -40°C to 105°C.

6PCV-08-006 Selection Criteria: The TE Connectivity component is suitable for applications with maximum current requirements of 25A or less. This part provides equivalent electrical isolation, voltage rating, and regulatory compliance. The standard screw termination (without captive plate) accommodates alternative assembly methodologies. Operating temperature is rated to 105°C.

Both parts satisfy ROHS3 compliance and UL94 V-0 flammability requirements. Selection should be based on current load specifications, assembly process compatibility, and supply chain availability.

Frequently Asked Questions (FAQ)

Q: Can the 6PCV-08-006 replace the CB20220807 in all applications?

A: The 6PCV-08-006 functions as a direct substitute when application current requirements do not exceed 25A. Both parts provide identical circuit isolation, pitch spacing, wire gauge compatibility, and voltage rating. If the application requires current levels between 25A and 30A, the CB20220807 must be used.

Q: What is the difference between "Screws with Captive Plate" and standard "Screws" termination?

A: The CB20220807 features a captive plate design that retains the screw during assembly, reducing the risk of screw loss during installation. The 6PCV-08-006 uses standard screw termination without the captive feature. Both designs provide equivalent electrical connection and wire retention.

Q: Are both parts compatible with the same PCB footprint?

A: Yes. Both the CB20220807 and 6PCV-08-006 feature identical PC pin bottom termination, 0.375" (9.53mm) pitch spacing, and Through Hole mounting type. PCB layouts designed for one part accommodate the other without modification.

Q: What is the significance of the operating temperature difference?

A: The CB20220807 specifies -40°C to 105°C operating range, while the 6PCV-08-006 specifies 105°C maximum. For applications operating below 0°C, the CB20220807 is required. For applications within 0°C to 105°C range, both parts are suitable.

Q: Do both parts meet the same regulatory compliance standards?

A: Yes. Both the CB20220807 and 6PCV-08-006 are ROHS3 compliant and carry UL94 V-0 flammability ratings. Both parts satisfy identical regulatory requirements for electrical safety and environmental compliance.

Q: What wire gauge range is supported by both parts?

A: Both parts accept wire gauges from 12 AWG to 22 AWG. This range accommodates standard industrial wiring applications without modification to the terminal block design.
