CA18CLF08TC Equivalent & Substitute Parts

Part Overview

The CA18CLF08TC is an active capacitive proximity sensor manufactured by Carlo Gavazzi Inc., designed for industrial sensing applications requiring detection at 8mm (0.315") sensing distance. This cylindrical, threaded M18 sensor operates on 20 VAC to 250 VAC supply voltage with SCR-NC, 2-wire output configuration. The product is currently active in production with 1091 units in stock. Alternative models become necessary when application requirements specify different sensing distances, environmental conditions, or when primary inventory is unavailable.

Substiute Parts

CA18CLF08TC

Carlo Gavazzi Inc.In Stock: 1127CA18CLF08TC Datasheet

Current PartRFQ

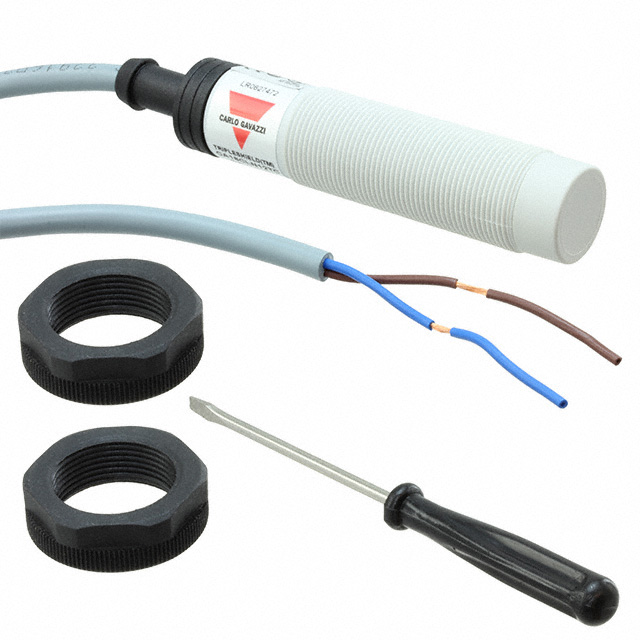

CA18CLN12TC

Carlo Gavazzi Inc.In Stock: 1072CA18CLN12TC Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The CA18CLN12TC qualifies as a substitute for the CA18CLF08TC based on the following allowed electrical and mechanical parameters:

Matching Parameters (Substitution Basis):

• Manufacturer: Carlo Gavazzi Inc. (same manufacturer ensures design compatibility)
• Sensor Type: Capacitive (identical sensing technology)
• Output Type: SCR-NC, 2-Wire (identical output configuration)
• Response Frequency: 10Hz (identical response characteristics)
• Voltage Supply: 20 VAC ~ 250 VAC (identical supply voltage range)
• Operating Temperature: -25°C ~ 80°C (identical temperature range)
• Ingress Protection: IP67, NEMA 1,3,4,6,13 (identical environmental protection)
• Package / Case: Cylinder, Threaded - M18 (identical mechanical form factor)
• Shielding: Shielded (identical shielding configuration)
• Termination Style: Cable Leads (identical connection method)

Differing Parameter:

• Sensing Distance: CA18CLN12TC operates at 0.472" (12mm) versus 0.315" (8mm) for CA18CLF08TC

The substitute relationship is valid when application requirements permit operation at the extended 12mm sensing distance. This parameter difference represents the only electrical or mechanical variance between the two models.

Parameter Comparison

Engineering Selection Recommendations

Both CA18CLF08TC and CA18CLN12TC are active products from Carlo Gavazzi Inc. with equivalent electrical specifications and environmental ratings. Selection between these models depends solely on sensing distance requirements for the specific application. The CA18CLF08TC provides 8mm detection range, while CA18CLN12TC extends this to 12mm. Both models maintain identical supply voltage tolerance, output switching characteristics, temperature performance, and ingress protection ratings. Current inventory availability shows 1091 units for CA18CLF08TC and 1010 units for CA18CLN12TC. Compliance status (REACH Unaffected, ECCN EAR99) is equivalent across both models.

Frequently Asked Questions (FAQ)

Q: Can CA18CLN12TC replace CA18CLF08TC in all applications?

A: Substitution is valid only when the application permits operation at 12mm sensing distance instead of 8mm. All other electrical and mechanical parameters are identical. If the 8mm sensing distance is a critical requirement, substitution is not appropriate.

Q: Are the output switching characteristics identical between these models?

A: Yes. Both models feature SCR-NC, 2-wire output configuration with 10Hz response frequency. Electrical output behavior is identical.

Q: Do both sensors operate on the same supply voltage?

A: Yes. Both CA18CLF08TC and CA18CLN12TC operate on 20 VAC to 250 VAC supply voltage with identical voltage tolerance.

Q: Are the mechanical form factors compatible?

A: Yes. Both sensors use identical M18 threaded cylinder packaging with cable lead termination, allowing direct mechanical interchange in mounting applications.

Q: What is the primary difference between these two models?

A: The sensing distance is the only parameter difference. CA18CLF08TC detects objects at 8mm, while CA18CLN12TC detects at 12mm. All other specifications are equivalent.

Q: Are environmental protection ratings the same?

A: Yes. Both models provide IP67 and NEMA 1,3,4,6,13 ingress protection ratings with identical shielding and operating temperature range (-25°C to 80°C).
