Crystek C3390-4.096 XTAL OSC XO 4.096MHz HCMOS SMD Equivalent & Substitute Parts

Part Overview

The Crystek C3390-4.096 is a 4.096 MHz XO (Standard) HCMOS oscillator operating at 3.3V with Enable/Disable functionality in a 4-SMD, No Lead surface mount package. This component is classified as Active product status and is suitable for applications requiring precise frequency generation with standard stability performance. Substitute parts are identified when equivalent electrical and mechanical specifications are required due to inventory constraints, design optimization, or supply chain considerations.

Substiute Parts

C3390-4.096

Crystek CorporationIn Stock: 988C3390-4.096 Datasheet

Current PartRFQ

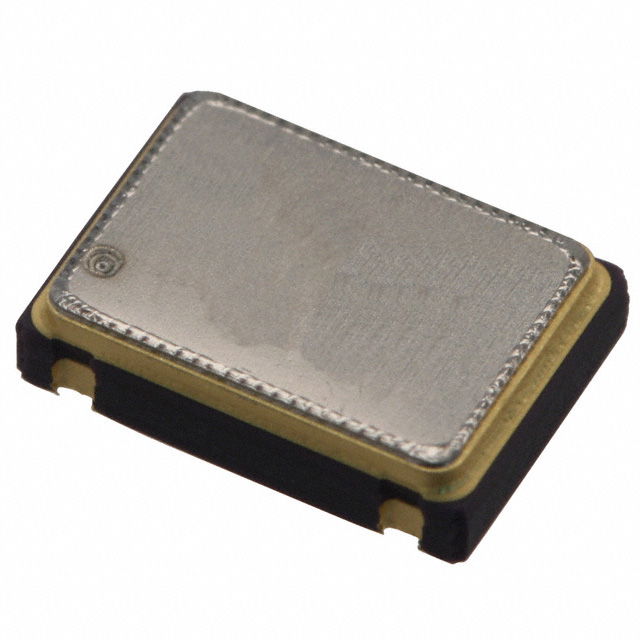

C3391-4.096

Crystek CorporationIn Stock: 4405C3391-4.096 Datasheet

UpgradeRFQ

Key Parameters

Substitute Part Grouping Explanation

The C3391-4.096 is identified as a substitute for the C3390-4.096 based on strict equivalence of the following critical parameters:

• Identical frequency: 4.096 MHz
• Identical output type: HCMOS
• Identical supply voltage: 3.3V
• Identical function: Enable/Disable
• Identical mounting type: Surface Mount
• Identical package: 4-SMD, No Lead
• Identical physical dimensions: 0.283" L x 0.205" W (7.20mm x 5.20mm)
• Identical height: 0.071" (1.80mm)
• Identical operating temperature range: 0°C ~ 70°C
• Identical maximum supply current: 18mA
• Identical compliance certifications: ROHS3 Compliant, REACH Unaffected
• Identical moisture sensitivity level: MSL 1 (Unlimited)

The primary difference between these parts is frequency stability: the C3391-4.096 provides ±25ppm stability compared to the C3390-4.096's ±100ppm stability. This represents an improvement in frequency accuracy while maintaining all other electrical and mechanical specifications.

Parameter Comparison

Engineering Selection Recommendations

Both the C3390-4.096 and C3391-4.096 maintain Active product status from Crystek Corporation and are fully compliant with ROHS3 and REACH regulations. The C3391-4.096 provides superior frequency stability at ±25ppm, offering enhanced performance for applications requiring tighter frequency tolerance. Both parts are functionally interchangeable at the board level due to identical pinout, package geometry, and electrical interface specifications. Selection between these parts should be based on application frequency accuracy requirements and availability.

Frequently Asked Questions (FAQ)

Q: Can the C3391-4.096 be used as a direct replacement for the C3390-4.096?

A: Yes. Both parts share identical pinout, package dimensions, supply voltage, frequency, output type, and operating temperature range. The C3391-4.096 provides improved frequency stability (±25ppm vs. ±100ppm) while maintaining all other specifications.

Q: What is the primary difference between these two oscillators?

A: The frequency stability specification differs. The C3390-4.096 operates at ±100ppm stability, while the C3391-4.096 operates at ±25ppm stability. All other electrical and mechanical parameters are identical.

Q: Are both parts suitable for the same PCB layout?

A: Yes. Both parts use the 4-SMD, No Lead package with identical dimensions (0.283" L x 0.205" W, 7.20mm x 5.20mm) and height (0.071", 1.80mm). No PCB redesign is required for substitution.

Q: Do both parts require the same supply voltage?

A: Yes. Both the C3390-4.096 and C3391-4.096 operate at 3.3V supply voltage with identical maximum supply current of 18mA.

Q: Are there any compliance differences between these parts?

A: No. Both parts are ROHS3 Compliant, REACH Unaffected, and carry MSL 1 (Unlimited) moisture sensitivity rating.
