BZ-2RW82299-A2 Equivalent & Substitute Parts Reference

Part Overview

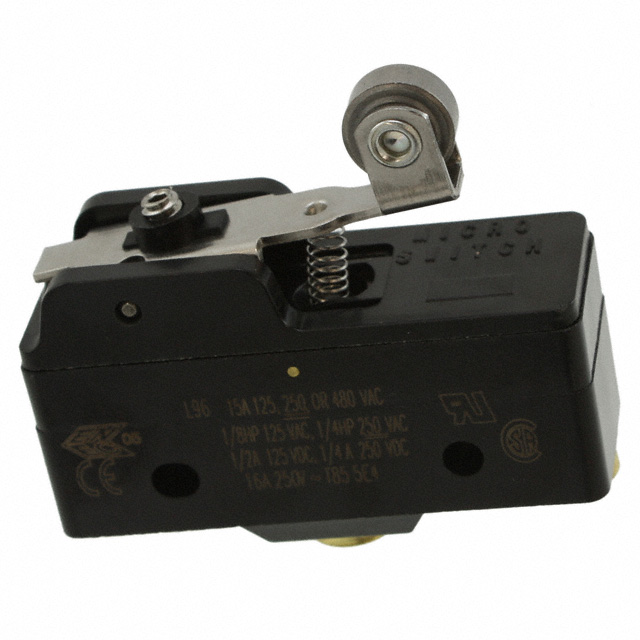

The BZ-2RW82299-A2 is a snap action switch manufactured by Honeywell Sensing and Productivity Solutions. This SPDT (Single Pole Double Throw) switch is rated for 15A at 125V AC and features a lever-roller actuator with chassis mount configuration and screw terminal termination. The switch operates in an On-Momentary function and is classified as Active product status. Substitute parts are identified when equivalent electrical ratings, mechanical specifications, and physical mounting characteristics align within acceptable tolerances for direct component replacement in circuit applications.

Substiute Parts

BZ-2RW82299-A2

Honeywell Sensing and Productivity SolutionsIn Stock: 942BZ-2RW82299-A2 Datasheet

Current PartRFQ

GPTCRM01

ZF ElectronicsIn Stock: 1126GPTCRM01 Datasheet

SimilarRFQ

GPTCRM11

ZF ElectronicsIn Stock: 1005GPTCRM11 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the BZ-2RW82299-A2 are identified based on strict equivalence of the following critical parameters:

Electrical Equivalence Criteria:

• Circuit configuration: SPDT
• Switch function: On-Mom
• Current rating: 15A AC minimum
• Voltage rating: 125V AC minimum

Mechanical Equivalence Criteria:

• Actuator type: Lever with roller
• Mounting type: Chassis mount
• Termination style: Screw terminal
• Operating position: 1.172" (29.8mm)
• Differential travel: 0.020" (0.5mm)
• Mechanical life: 20,000,000 cycles minimum

Compliance Criteria:

• RoHS compliance status
• Moisture sensitivity level: 1 (Unlimited)
• ECCN and HTSUS classifications

The substitute parts GPTCRM01 and GPTCRM11 (both ZF Electronics) meet the core electrical and mechanical requirements for direct substitution. Variations in operating force (158gf vs. 170gf), release force (43gf equivalent), operating temperature range, and pretravel/overtravel specifications are within acceptable engineering tolerances for this switch category.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes: GPTCRM01 and GPTCRM11 (ZF Electronics) are functionally equivalent to BZ-2RW82299-A2 for applications requiring SPDT snap action switches with 15A AC at 125V rating, lever-roller actuation, and chassis mount configuration.

Compliance Status: All three parts maintain active product status and meet RoHS compliance requirements. The BZ-2RW82299-A2 carries RoHS Compliant certification, while GPTCRM01 and GPTCRM11 carry ROHS3 Compliant certification. Both compliance levels are acceptable for equivalent substitution.

Temperature Consideration: The BZ-2RW82299-A2 operates across -55°C to 85°C, while GPTCRM01 and GPTCRM11 operate across 0°C to 55°C. Applications requiring operation below 0°C or above 55°C must retain the BZ-2RW82299-A2.

Mechanical Specifications: Operating force differential (170gf vs. 158gf) and overtravel variation (0.040" vs. 0.094") fall within acceptable tolerances for this switch category. Pretravel specification is provided for ZF Electronics substitutes but not for the Honeywell part.

Inventory Availability: BZ-2RW82299-A2 has 848 units in stock; GPTCRM01 has 1079 units; GPTCRM11 has 907 units.
