BU-PMDP-S-0 Equivalent & Substitute Parts

Part Overview

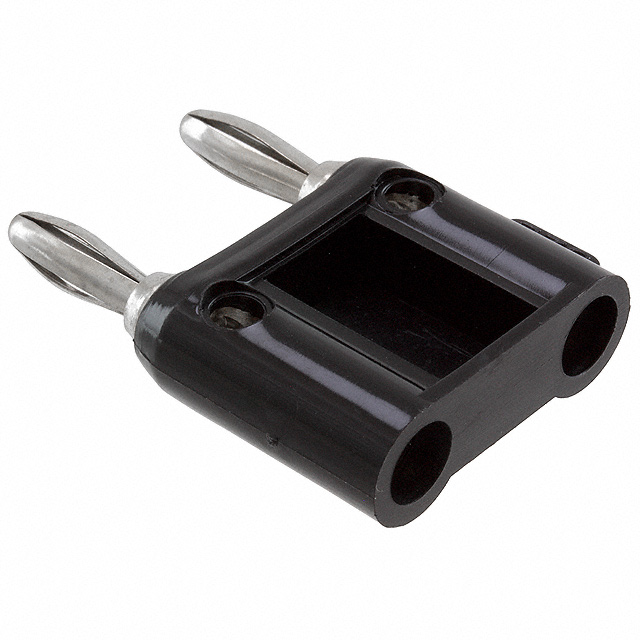

The BU-PMDP-S-0 is a double banana plug connector manufactured by Mueller Electric Co, designed for solderless termination in standard banana applications. This component features a shorting connector configuration with set screw termination, non-mating end insulation, and operates across a temperature range of -50°C to 105°C. The part is currently active in production with 1117 pieces available in stock. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling direct replacement in applications where the core functional requirements remain unchanged.

Substiute Parts

BU-PMDP-S-0

Mueller Electric CoIn Stock: 1226BU-PMDP-S-0 Datasheet

Current PartRFQ

MDP-S-0

Pomona ElectronicsIn Stock: 3426MDP-S-0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The MDP-S-0 manufactured by Pomona Electronics qualifies as a direct substitute based on the following aligned parameters: both connectors are double banana plugs with male gender, standard banana plug diameter, solderless termination, non-mating end insulation, beryllium copper contact material, nickel contact finish, and black color. Both parts maintain the same electrical and mechanical interface specifications required for standard banana connector applications. The substitution is valid where these core parameters define the functional requirement.

Parameter Comparison

Engineering Selection Recommendations

Both the BU-PMDP-S-0 and MDP-S-0 maintain active product status and comply with RoHS and REACH requirements. The MDP-S-0 carries ROHS3 compliance, representing a more recent regulatory standard. Selection between these parts should be based on application-specific requirements regarding connector configuration (shorting versus stackable design) and operating temperature range, where the BU-PMDP-S-0 supports -50°C to 105°C operation. Both parts are suitable for standard banana connector applications requiring solderless termination with beryllium copper contacts and nickel finish.

Frequently Asked Questions (FAQ)

Q: What determines compatibility between BU-PMDP-S-0 and MDP-S-0? A: Both connectors share identical electrical and mechanical interface specifications: standard banana plug diameter, male gender, solderless termination, beryllium copper contacts with nickel finish, and non-mating end insulation. These parameters define functional equivalence in standard banana connector applications.

Q: Are there differences in connector configuration between these parts? A: The BU-PMDP-S-0 features a shorting connector design with set screw termination, while the MDP-S-0 incorporates a stackable design with shorting bar. Both configurations maintain the same mating interface and electrical performance for standard banana applications.

Q: What is the operating temperature difference? A: The BU-PMDP-S-0 operates from -50°C to 105°C. The MDP-S-0 specifies 50°C maximum operating temperature. Applications requiring sub-zero or elevated temperature performance above 50°C should specify the BU-PMDP-S-0.

Q: Do both parts meet current regulatory standards? A: Both parts are RoHS compliant and REACH unaffected. The MDP-S-0 carries ROHS3 compliance, representing alignment with the most current RoHS directive revision.

Q: What packaging is available for these connectors? A: Both the BU-PMDP-S-0 and MDP-S-0 are supplied in bulk packaging.
