Part Overview

The BTM521 is an RF transceiver module manufactured by Laird Connectivity Inc., designed for Bluetooth v2.1 +EDR Class 1 applications operating at 2.4GHz. This module integrates a CC2540 IC with 16MB Flash memory and is configured for surface mount deployment. The BTM521 is classified as obsolete, necessitating identification of functionally compatible alternatives for ongoing design support and component procurement.

Substiute Parts

BTM521

Laird Connectivity Inc.In Stock: 828BTM521 Datasheet

Current PartRFQ

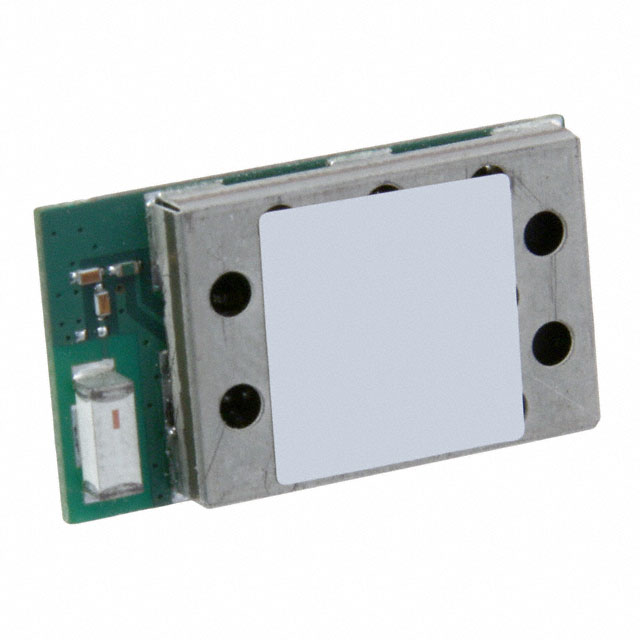

BTM511

Laird Connectivity Inc.In Stock: 1285BTM511 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the BTM521 is determined by the following critical parameters:

Mandatory Compatibility Criteria:

• Manufacturer: Laird Connectivity Inc.
• RF Family/Standard: Bluetooth
• Frequency: 2.4GHz
• Utilized IC: CC2540
• Memory Size: 16MB Flash
• Mounting Type: Surface Mount
• Package/Case: Module

Allowable Parameter Variations: Substitute parts may differ in protocol version (Bluetooth v2.1 +EDR vs. v3.0), power output class (Class 1 vs. Class 2), data rate, supply voltage range, current consumption, operating temperature range, and packaging format, provided the mandatory criteria are satisfied.

The BTM511 meets all mandatory compatibility criteria while introducing protocol and performance variations that define its substitution relationship to the BTM521.

Parameter Comparison

Engineering Selection Recommendations

BTM511 as Substitute for BTM521:

The BTM511 shares identical core architecture with the BTM521, utilizing the same CC2540 IC, 16MB Flash memory configuration, and surface mount module packaging. Both components are classified as obsolete products.

Electrical Compatibility: The BTM511 operates within a narrower supply voltage range (3V ~ 3.6V) compared to the BTM521 (3V ~ 4.2V). Design circuits must accommodate this constraint. The BTM511 demonstrates lower current consumption during both receive (70mA vs. 80mA) and transmit (70mA vs. 80mA) operations.

Protocol and Performance Differences: The BTM511 implements Bluetooth v3.0 with Class 2 power classification, compared to the BTM521's Bluetooth v2.1 +EDR Class 1 specification. This results in reduced transmit power output (4dBm vs. 8dBm) but increased data rate capability (3Mbps vs. 2.1Mbps). The BTM511 supports I2S serial interface in addition to UART, providing expanded integration options.

Environmental Operating Range: The BTM511 extends the operating temperature range to -40°C ~ 85°C, compared to the BTM521's -30°C ~ 70°C specification, offering broader thermal tolerance.

Compliance and Packaging: Both modules carry identical ECCN and HTSUS classifications. The BTM511 is supplied in Tray packaging format. RoHS compliance status is confirmed for the BTM511.

Frequently Asked Questions (FAQ)

Q: Can the BTM511 directly replace the BTM521 in existing designs?

A: Direct replacement requires verification of supply voltage compatibility. The BTM511's narrower voltage range (3V ~ 3.6V) must be accommodated by the power supply circuit. Protocol differences between Bluetooth v2.1 +EDR and v3.0 may require firmware evaluation depending on application requirements.

Q: What are the key electrical differences between these modules?

A: The BTM511 operates at lower transmit power (4dBm vs. 8dBm) and reduced current consumption (70mA vs. 80mA). The BTM521 supports higher power output suitable for Class 1 range requirements. Both maintain identical receiver sensitivity (-86dBm).

Q: Are there interface compatibility considerations?

A: The BTM521 provides UART serial interface only. The BTM511 supports both I2S and UART interfaces, offering additional integration flexibility. Existing UART-based designs are compatible with the BTM511.

Q: How do the operating temperature ranges differ?

A: The BTM521 operates from -30°C to 70°C. The BTM511 extends this range to -40°C to 85°C, providing enhanced thermal performance for demanding environmental applications.

Q: What is the packaging difference?

A: The BTM521 is supplied in standard module packaging. The BTM511 is supplied in Tray format. Both utilize identical surface mount module construction.

Q: Are both modules obsolete?

A: Yes, both the BTM521 and BTM511 are classified as obsolete products. Component procurement should account for limited availability from existing inventory sources.
