BTH-090-01-F-D-A-TR Equivalent & Substitute Parts

Part Overview

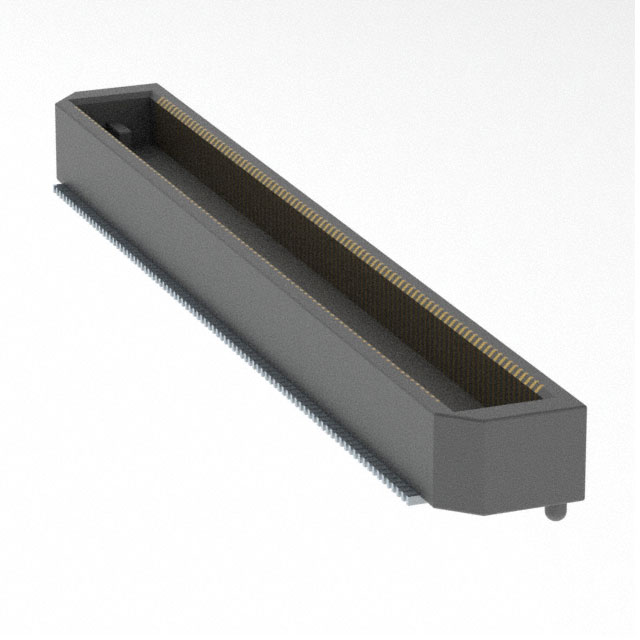

The BTH-090-01-F-D-A-TR is a 180 Position Connector Header manufactured by Samtec Inc., designed for surface mount applications with outer shroud contacts and gold plating. This rectangular connector operates at a 0.020" (0.50mm) pitch with a 2-row configuration and includes board guide features. The part maintains Active product status with full RoHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified based on identical electrical and mechanical specifications while accommodating different packaging formats to support supply chain flexibility and inventory optimization.

Substiute Parts

BTH-090-01-F-D-A-TR

Samtec Inc.In Stock: 879BTH-090-01-F-D-A-TR Datasheet

Current PartRFQ

BTH-090-01-F-D-A

Samtec Inc.In Stock: 1534BTH-090-01-F-D-A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the BTH-090-01-F-D-A-TR are determined by equivalence across all critical electrical and mechanical parameters. The primary substitution criterion is packaging format differentiation. The main part is supplied in Tape & Reel (TR) packaging, while the identified substitute maintains identical connector specifications but is supplied in Tray packaging. Both parts share the same base product number (BTH-090), connector configuration, contact characteristics, and compliance certifications. Substitution is valid when packaging format does not constrain application requirements, allowing component selection based on procurement and assembly process needs.

Parameter Comparison

Engineering Selection Recommendations

Both the BTH-090-01-F-D-A-TR and BTH-090-01-F-D-A maintain Active product status with identical compliance certifications including ROHS3 compliance, REACH Unaffected status, and EAR99 ECCN classification. Selection between these parts is determined by packaging requirements and supply chain logistics rather than electrical or mechanical performance. The Tape & Reel format (TR) is optimized for automated assembly processes, while Tray packaging supports alternative handling and storage methodologies. Both formats are suitable for production environments and maintain equivalent component reliability and performance characteristics.

Frequently Asked Questions (FAQ)

Q: Are BTH-090-01-F-D-A-TR and BTH-090-01-F-D-A electrically and mechanically identical?

A: Yes. Both parts share identical connector specifications including 180 positions, 0.020" pitch, 2-row configuration, gold contact finish, and all mechanical dimensions. Differences are limited to packaging format only.

Q: What is the primary difference between these substitute parts?

A: The BTH-090-01-F-D-A-TR is supplied in Tape & Reel packaging, while the BTH-090-01-F-D-A is supplied in Tray packaging. All connector specifications remain identical.

Q: Can I use BTH-090-01-F-D-A in place of BTH-090-01-F-D-A-TR in my assembly process?

A: Substitution is valid if your assembly process accommodates Tray packaging. Automated pick-and-place systems optimized for Tape & Reel format may require process adjustment for Tray-packaged components.

Q: Do both parts meet the same compliance requirements?

A: Yes. Both parts are ROHS3 compliant, REACH Unaffected, and carry EAR99 ECCN classification with MSL 1 rating.

Q: What is the inventory status for these parts?

A: BTH-090-01-F-D-A-TR has 863 pieces in stock. BTH-090-01-F-D-A has 1437 pieces in stock.
