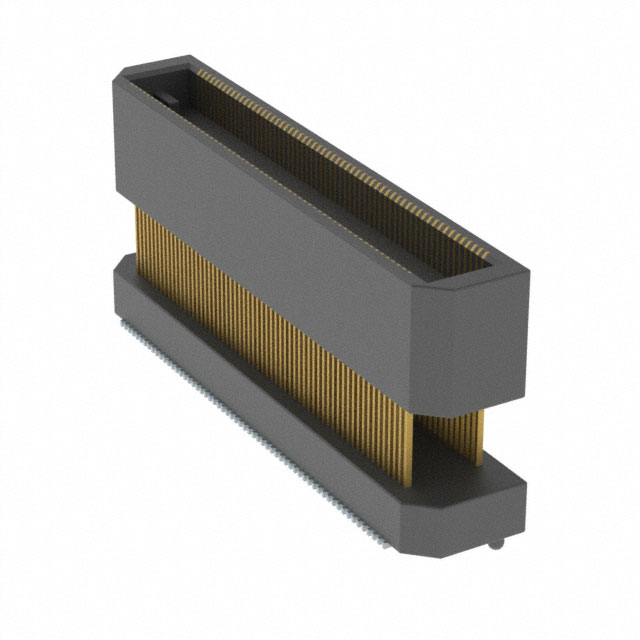

BTH-060-04-L-D-A-TR Equivalent & Substitute Parts

Part Overview

The BTH-060-04-L-D-A-TR is a 120-position rectangular connector header manufactured by Samtec Inc., designed for surface mount applications with outer shroud contacts and gold plating. This connector is classified as an active product with full RoHS3 compliance and unlimited moisture sensitivity rating. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity for this connector series.

Substiute Parts

BTH-060-04-L-D-A-TR

Samtec Inc.In Stock: 748BTH-060-04-L-D-A-TR Datasheet

Current PartRFQ

BTH-060-04-L-D-A-K-TR

Samtec Inc.In Stock: 895BTH-060-04-L-D-A-K-TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the BTH-060-04-L-D-A-TR are identified based on strict equivalence across the following critical parameters:

• Number of Positions: 120
• Pitch: 0.020" (0.50mm)
• Number of Rows: 2
• Connector Type: Header, Outer Shroud Contacts
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 10.0µin (0.25µm)
• Height Above Board: 0.600" (15.24mm)
• Mated Stacking Heights: 16mm
• Features: Board Guide
• Series: BTH
• Packaging: Tape & Reel (TR)
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The identified substitute maintains all electrical and mechanical parameters, ensuring direct interchangeability in applications requiring this connector specification.

Parameter Comparison

Engineering Selection Recommendations

Both the BTH-060-04-L-D-A-TR and BTH-060-04-L-D-A-K-TR are active products with identical electrical and mechanical specifications. Both connectors meet ROHS3 compliance requirements and carry REACH Unaffected status, making them suitable for regulated applications. Selection between these parts may be based on inventory availability and procurement lead times, as they are functionally equivalent for all specified parameters.

Frequently Asked Questions (FAQ)

Q: Are BTH-060-04-L-D-A-TR and BTH-060-04-L-D-A-K-TR directly interchangeable?

A: Yes. Both parts share identical specifications across all electrical and mechanical parameters, including position count, pitch, mounting type, contact finish, and board height. They are direct substitutes.

Q: What determines substitution eligibility for this connector?

A: Substitution is based on equivalence in the following parameters: 120-position count, 0.020" (0.50mm) pitch, 2-row configuration, header with outer shroud contacts, surface mount mounting, gold contact finish at 10.0µin thickness, 0.600" board height, 16mm mated stacking height, and board guide features.

Q: Are both parts available in the same packaging format?

A: Yes. Both BTH-060-04-L-D-A-TR and BTH-060-04-L-D-A-K-TR are supplied in Tape & Reel (TR) packaging.

Q: Do these connectors meet environmental compliance standards?

A: Both parts are ROHS3 compliant and REACH Unaffected, meeting current environmental and regulatory requirements for electronic components.

Q: What is the moisture sensitivity rating for these connectors?

A: Both connectors carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage and handling.
