BTH-060-02-L-D-A-TR Equivalent & Substitute Parts

Part Overview

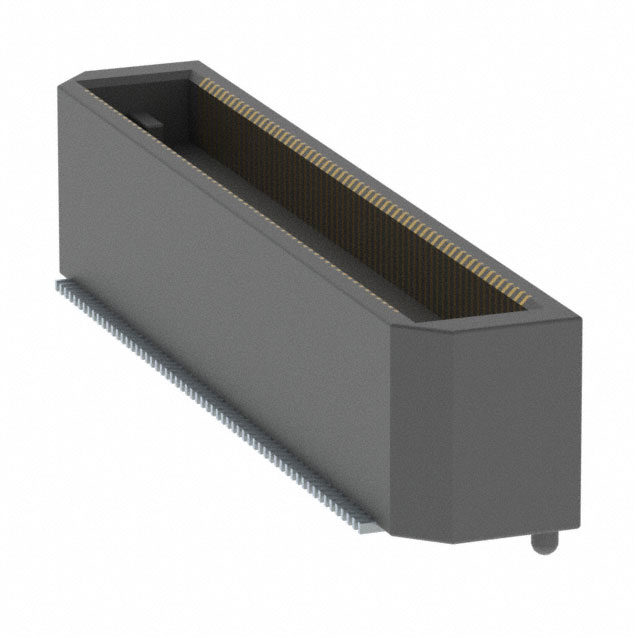

The BTH-060-02-L-D-A-TR is a 120-position rectangular connector header manufactured by Samtec Inc., designed for surface mount applications with outer shroud contacts and gold plating. This connector is classified as an active product with full RoHS3 compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector series, allowing for alternative sourcing options while preserving circuit board compatibility and performance specifications.

Substiute Parts

BTH-060-02-L-D-A-TR

Samtec Inc.In Stock: 1152BTH-060-02-L-D-A-TR Datasheet

Current PartRFQ

BTH-060-02-L-D-A-K-TR

Samtec Inc.In Stock: 2159BTH-060-02-L-D-A-K-TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The BTH-060-02-L-D-A-K-TR qualifies as a parametric equivalent based on the following criteria:

All electrical parameters are identical: 120 positions, 2-row configuration, 0.020" (0.50mm) pitch, gold contact finish with 10.0µin thickness, and 8mm mated stacking height.

All mechanical parameters are identical: surface mount mounting type, outer shroud contacts, board guide feature, and 0.286" (7.26mm) height above board.

All compliance and regulatory parameters are identical: ROHS3 compliant, MSL 1 (unlimited), REACH unaffected, and EAR99 ECCN classification.

The only difference between the main part and substitute is the packaging format: the main part uses Tape & Reel (TR) packaging, while the substitute uses Cut Tape (CT) & Digi-Reel® packaging. This packaging difference does not affect electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both the BTH-060-02-L-D-A-TR and BTH-060-02-L-D-A-K-TR are active products with identical electrical, mechanical, and compliance specifications. Selection between these parts should be based on packaging requirements and supply chain considerations. The Tape & Reel (TR) format is suitable for high-volume automated assembly operations, while Cut Tape (CT) & Digi-Reel® packaging accommodates lower-volume requirements or mixed component sourcing. Both parts maintain ROHS3 compliance and unlimited moisture sensitivity rating, ensuring equivalent performance in end-use applications.
