BTH-060-02-L-D-A-K Equivalent & Substitute Parts

Part Overview

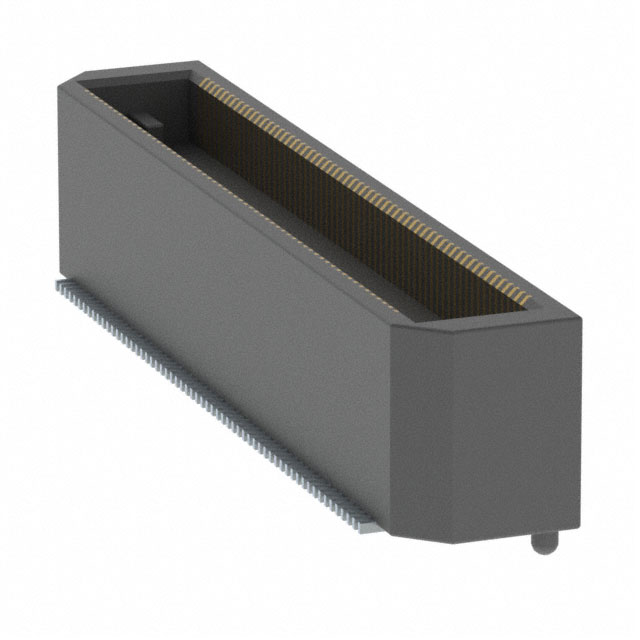

The BTH-060-02-L-D-A-K is a 120-position rectangular connector header manufactured by Samtec Inc., designed for surface mount applications with outer shroud contacts and gold plating. This connector is classified as Active product status and is fully RoHS3 compliant. Substitute parts are identified to provide alternative packaging and procurement options while maintaining identical electrical and mechanical specifications for direct board-level compatibility.

Substiute Parts

BTH-060-02-L-D-A-K

Samtec Inc.In Stock: 773BTH-060-02-L-D-A-K Datasheet

Current PartRFQ

BTH-060-02-L-D-A-K-TR

Samtec Inc.In Stock: 2159BTH-060-02-L-D-A-K-TR Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the BTH-060-02-L-D-A-K are identified based on strict equivalence of the following critical parameters:

• Number of Positions: 120
• Pitch: 0.020" (0.50mm)
• Number of Rows: 2
• Connector Type: Header, Outer Shroud Contacts
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 10.0µin (0.25µm)
• Height Above Board: 0.286" (7.26mm)
• Mated Stacking Heights: 8mm
• Features: Board Guide
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part differs only in packaging configuration, which does not affect electrical or mechanical performance at the board level.

Parameter Comparison

Engineering Selection Recommendations

Both the BTH-060-02-L-D-A-K and BTH-060-02-L-D-A-K-TR are Active product status components manufactured by Samtec Inc. and maintain identical electrical and mechanical specifications. Selection between these parts is determined by packaging and procurement requirements rather than functional performance.

The BTH-060-02-L-D-A-K is supplied in Tray packaging, while the BTH-060-02-L-D-A-K-TR is supplied in Cut Tape (CT) and Digi-Reel® packaging. Both configurations are RoHS3 compliant and REACH unaffected, meeting equivalent regulatory requirements for industrial and commercial applications.

Frequently Asked Questions (FAQ)

Q: Are BTH-060-02-L-D-A-K and BTH-060-02-L-D-A-K-TR electrically and mechanically identical?

A: Yes. Both parts share identical electrical and mechanical specifications, including 120 positions, 0.020" pitch, 2-row configuration, gold contact finish, and surface mount design. The only difference is packaging format.

Q: What is the difference between Tray and Cut Tape (CT) & Digi-Reel® packaging?

A: Tray packaging is used for bulk quantities and manual handling, while Cut Tape and Digi-Reel® packaging is designed for automated pick-and-place assembly equipment. Selection depends on manufacturing process requirements and volume.

Q: Can I substitute BTH-060-02-L-D-A-K-TR for BTH-060-02-L-D-A-K in production?

A: Yes, provided your assembly process supports the Cut Tape and Digi-Reel® packaging format. No board-level design changes are required.

Q: Are both parts RoHS3 compliant?

A: Yes. Both BTH-060-02-L-D-A-K and BTH-060-02-L-D-A-K-TR are RoHS3 compliant and REACH unaffected.

Q: What is the Moisture Sensitivity Level (MSL) for these connectors?

A: Both parts have MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
