BTH-060-01-F-D-A-TR Equivalent & Substitute Parts

Part Overview

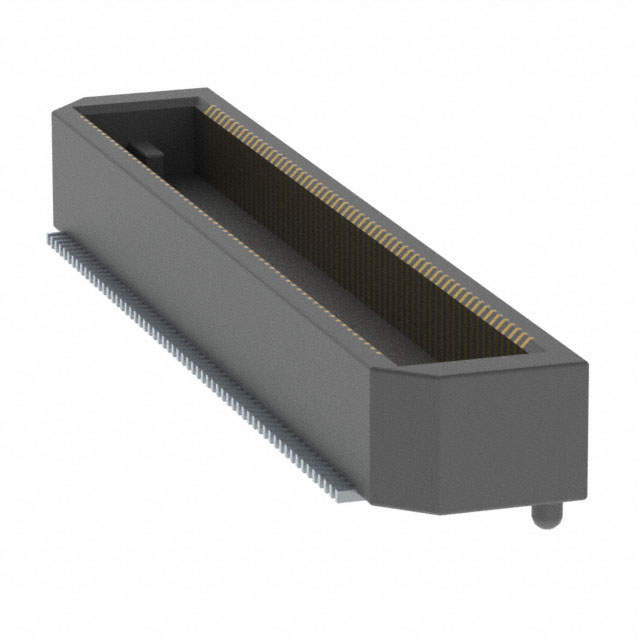

The BTH-060-01-F-D-A-TR is a 120 position connector header manufactured by Samtec Inc., designed for surface mount applications with outer shroud contacts and gold plating. This rectangular connector operates at a 0.020" (0.50mm) pitch across 2 rows and includes board guide features. The part maintains Active product status and is ROHS3 compliant with MSL 1 rating, indicating unlimited moisture sensitivity protection. Substitute parts are identified when packaging formats differ or when equivalent parametric specifications are required for alternative procurement channels or assembly processes.

Substiute Parts

BTH-060-01-F-D-A-TR

Samtec Inc.In Stock: 914BTH-060-01-F-D-A-TR Datasheet

Current PartRFQ

BTH-060-01-F-D-A

Samtec Inc.In Stock: 993BTH-060-01-F-D-A Datasheet

MFR RecommendedRFQ

BTH-060-01-F-D-A-K-TR

Samtec Inc.In Stock: 1783BTH-060-01-F-D-A-K-TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the BTH-060-01-F-D-A-TR are identified based on identical electrical and mechanical parameters while accommodating different packaging and distribution formats. The substitution logic is based on the following critical parameters that must remain constant:

• Number of Positions: 120
• Pitch: 0.020" (0.50mm)
• Number of Rows: 2
• Connector Type: Header, Outer Shroud Contacts
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 3.00µin (0.076µm)
• Height Above Board: 0.168" (4.27mm)
• Mated Stacking Heights: 5mm
• Features: Board Guide
• RoHS Status: ROHS3 Compliant
• MSL Rating: 1 (Unlimited)

Variations in packaging format (Tape & Reel versus Tray) do not affect functional compatibility and represent alternative procurement options for the same base product BTH-060.

Parameter Comparison

Engineering Selection Recommendations

All three parts—BTH-060-01-F-D-A-TR, BTH-060-01-F-D-A, and BTH-060-01-F-D-A-K-TR—maintain Active product status and full ROHS3 compliance. Selection between these parts is determined by packaging requirements and supply chain logistics rather than functional performance.

BTH-060-01-F-D-A-TR and BTH-060-01-F-D-A-K-TR are supplied in Tape & Reel format, suitable for automated pick-and-place assembly processes. BTH-060-01-F-D-A is supplied in Tray packaging, appropriate for manual assembly or alternative handling procedures. All three parts share identical electrical and mechanical specifications, including connector geometry, contact configuration, and compliance certifications.

Frequently Asked Questions (FAQ)

Q: Can BTH-060-01-F-D-A be used in place of BTH-060-01-F-D-A-TR?

A: Yes. Both parts are functionally identical with respect to electrical and mechanical parameters. The difference is packaging format: BTH-060-01-F-D-A uses Tray packaging while BTH-060-01-F-D-A-TR uses Tape & Reel. Selection depends on assembly process requirements and handling procedures.

Q: What is the difference between BTH-060-01-F-D-A-TR and BTH-060-01-F-D-A-K-TR?

A: Both parts are supplied in Tape & Reel packaging and share identical electrical and mechanical specifications. The designation difference reflects internal Samtec product line variations but does not affect functional compatibility or performance characteristics.

Q: Are all three parts ROHS3 compliant?

A: Yes. BTH-060-01-F-D-A-TR, BTH-060-01-F-D-A, and BTH-060-01-F-D-A-K-TR are all ROHS3 compliant with MSL 1 rating.

Q: What determines substitutability for this connector header?

A: Substitutability is determined by maintaining identical specifications for number of positions (120), pitch (0.020"), row configuration (2 rows), connector type (Header with Outer Shroud Contacts), mounting type (Surface Mount), contact finish (Gold at 3.00µin thickness), and physical dimensions. Packaging format variations do not affect functional substitution.

Q: Can these parts be used interchangeably in automated assembly?

A: BTH-060-01-F-D-A-TR and BTH-060-01-F-D-A-K-TR are optimized for automated pick-and-place assembly due to Tape & Reel packaging. BTH-060-01-F-D-A in Tray packaging requires alternative handling procedures. Functional performance is identical across all three parts.
