BTE-060-05-L-D-A-K Equivalent & Substitute Parts

Part Overview

The BTE-060-05-L-D-A-K is a 120-position rectangular connector header manufactured by Samtec Inc., designed for surface mount applications with outer shroud contacts and gold plating. This connector is classified as Active product status and maintains full compliance with ROHS3 and REACH standards. Alternative part numbers may be required due to inventory availability, procurement lead times, or specific supply chain requirements while maintaining identical electrical and mechanical specifications.

Substiute Parts

BTE-060-05-L-D-A-K

Samtec Inc.In Stock: 1090BTE-060-05-L-D-A-K Datasheet

Current PartRFQ

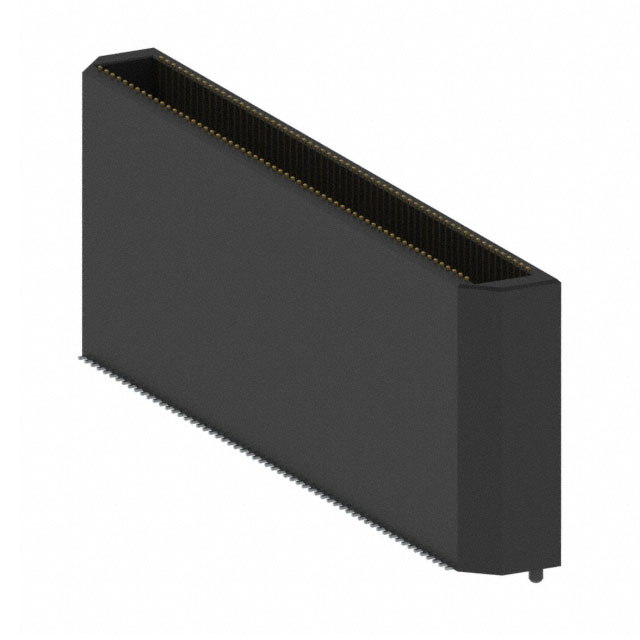

BTE-060-05-L-D-A

Samtec Inc.In Stock: 960BTE-060-05-L-D-A Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The BTE-060-05-L-D-A-K has one identified parametric equivalent: BTE-060-05-L-D-A. This substitution is valid based on the following critical parameters that remain identical across both part numbers:

• Number of Positions: 120
• Pitch: 0.031" (0.80mm)
• Number of Rows: 2
• Connector Type: Header, Outer Shroud Contacts
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 10.0µin (0.25µm)
• Height Above Board: 0.719" (18.26mm)
• Mated Stacking Heights: 19.1mm
• Features: Board Guide
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)
• REACH Status: REACH Unaffected

The difference between BTE-060-05-L-D-A-K and BTE-060-05-L-D-A is limited to packaging designation only, with no impact on electrical or mechanical performance.

Parameter Comparison

Engineering Selection Recommendations

Both BTE-060-05-L-D-A-K and BTE-060-05-L-D-A are Active product status components from Samtec Inc. and maintain full ROHS3 compliance and REACH unaffected status. Selection between these parts should be based on:

• Packaging requirements: BTE-060-05-L-D-A-K is supplied in Tube packaging
• Inventory availability: BTE-060-05-L-D-A-K has 986 pieces in stock; BTE-060-05-L-D-A has 928 pieces in stock
• Supply chain lead times and procurement policies

Both parts are electrically and mechanically interchangeable with no functional differences.

Frequently Asked Questions (FAQ)

Q: Are BTE-060-05-L-D-A-K and BTE-060-05-L-D-A electrically interchangeable?

A: Yes. Both parts have identical electrical specifications including 120 positions, 0.031" (0.80mm) pitch, gold contact finish at 10.0µin (0.25µm) thickness, and identical mating characteristics.

Q: Are these parts mechanically interchangeable?

A: Yes. Both parts share identical mechanical specifications including 2-row configuration, surface mount mounting type, 0.719" (18.26mm) height above board, 19.1mm mated stacking height, and board guide features.

Q: What is the difference between BTE-060-05-L-D-A-K and BTE-060-05-L-D-A?

A: The difference is limited to packaging designation. The "-K" suffix indicates Tube packaging. All electrical and mechanical parameters are identical.

Q: Do both parts meet the same compliance standards?

A: Yes. Both parts are ROHS3 compliant, REACH unaffected, and classified as Active product status with MSL 1 (Unlimited).

Q: Can I use BTE-060-05-L-D-A as a direct replacement for BTE-060-05-L-D-A-K in production?

A: Yes, provided your procurement and assembly processes accommodate the packaging format. The connector specifications are identical.
