BTE-040-04-F-D-A-TR Equivalent & Substitute Parts

Part Overview

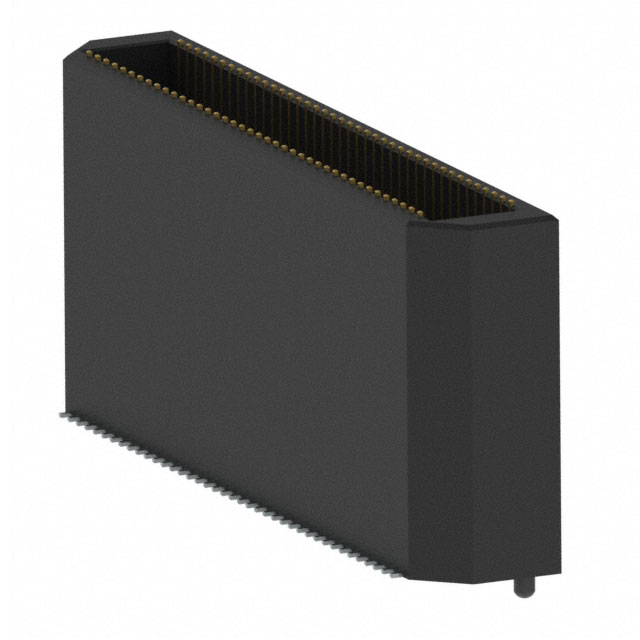

The BTE-040-04-F-D-A-TR is an 80-position rectangular connector header manufactured by Samtec Inc., designed for surface mount applications with outer shroud contacts and gold plating. This connector is classified as Active product status and maintains full compliance with ROHS3 and REACH standards. Alternative part numbers within the same series are identified to support procurement flexibility, inventory management, and supply chain continuity for applications requiring this specific connector configuration.

Substiute Parts

BTE-040-04-F-D-A-TR

Samtec Inc.In Stock: 977BTE-040-04-F-D-A-TR Datasheet

Current PartRFQ

BTE-040-04-F-D-A-K-TR

Samtec Inc.In Stock: 1058BTE-040-04-F-D-A-K-TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the BTE-040-04-F-D-A-TR are identified based on electrical and mechanical parameter equivalence within the BTE series. The substitution criteria are strictly limited to the following parameters:

• Number of Positions: 80
• Pitch: 0.031" (0.80mm)
• Number of Rows: 2
• Connector Type: Header, Outer Shroud Contacts
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 3.00µin (0.076µm)
• Height Above Board: 0.601" (15.27mm)
• Mated Stacking Heights: 16.1mm
• Features: Board Guide
• Base Product Number: BTE-040
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)
• REACH Status: REACH Unaffected

Parts meeting all these parameters are considered direct electrical and mechanical equivalents. Packaging configuration differences do not affect functional compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both the BTE-040-04-F-D-A-TR and BTE-040-04-F-D-A-K-TR maintain Active product status with identical electrical and mechanical specifications. Both parts satisfy ROHS3 compliance and REACH requirements. Selection between these parts is determined by packaging and supply chain requirements rather than functional performance. The BTE-040-04-F-D-A-TR is available in standard packaging, while the BTE-040-04-F-D-A-K-TR is supplied in Tape & Reel (TR) format, which is suitable for automated assembly processes. Current inventory levels support both configurations.

Frequently Asked Questions (FAQ)

Q: Are BTE-040-04-F-D-A-TR and BTE-040-04-F-D-A-K-TR electrically identical?

A: Yes. Both parts share identical electrical specifications including 80 positions, 0.031" pitch, gold contact finish at 3.00µin thickness, and all functional parameters.

Q: What is the difference between these two part numbers?

A: The primary difference is packaging configuration. The BTE-040-04-F-D-A-K-TR is supplied in Tape & Reel (TR) format, optimized for automated pick-and-place assembly. The BTE-040-04-F-D-A-TR uses standard packaging. Both are mechanically and electrically equivalent.

Q: Can I use BTE-040-04-F-D-A-K-TR as a direct replacement for BTE-040-04-F-D-A-TR?

A: Yes, provided your assembly process accommodates Tape & Reel packaging. The connector itself is functionally identical.

Q: Are both parts compliant with current regulatory standards?

A: Yes. Both parts are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements.

Q: What is the Moisture Sensitivity Level for these connectors?

A: Both parts have MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
