BSH-060-01-L-D-A-TR Equivalent & Substitute Parts

Part Overview

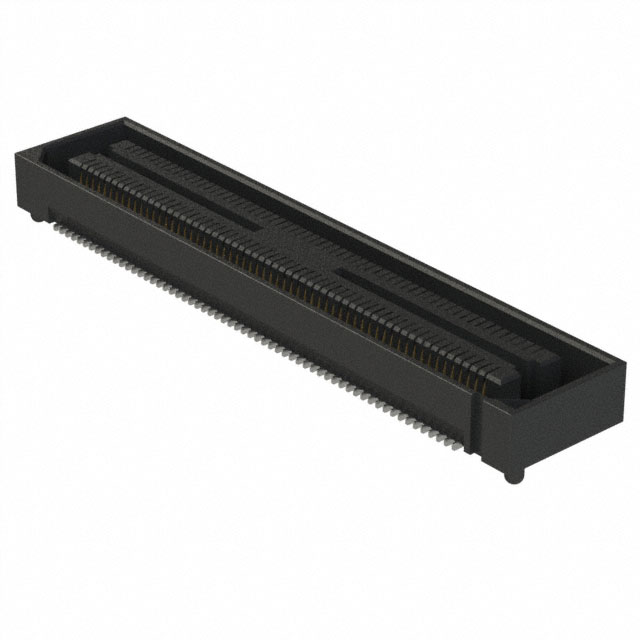

The BSH-060-01-L-D-A-TR is a 120-position rectangular connector socket manufactured by Samtec Inc., designed for surface mount applications with center strip contacts and gold plating. This connector is classified as Active product status and is ROHS3 compliant. Substitute parts are identified when packaging or inventory requirements differ while maintaining identical electrical and mechanical specifications.

Substiute Parts

BSH-060-01-L-D-A-TR

Samtec Inc.In Stock: 92945BSH-060-01-L-D-A-TR Datasheet

Current PartRFQ

BSH-060-01-L-D-A

Samtec Inc.In Stock: 1000157BSH-060-01-L-D-A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the BSH-060-01-L-D-A-TR is determined by equivalence in the following critical parameters: connector type, number of positions, pitch, number of rows, mounting type, contact finish, contact finish thickness, mated stacking height, height above board, and features. The primary difference between the main part and its substitute is packaging format. The BSH-060-01-L-D-A-TR is supplied in Cut Tape (CT) & Digi-Reel® packaging, while the substitute BSH-060-01-L-D-A is supplied in Tray packaging. Both parts share identical electrical and mechanical specifications and are manufactured by Samtec Inc. within the BSH series.

Parameter Comparison

Engineering Selection Recommendations

Both BSH-060-01-L-D-A-TR and BSH-060-01-L-D-A are Active status products manufactured by Samtec Inc. and maintain full ROHS3 compliance and REACH unaffected status. Selection between these parts is based on packaging requirements and inventory availability. The BSH-060-01-L-D-A-TR in Cut Tape & Digi-Reel® packaging is suitable for automated pick-and-place assembly operations. The BSH-060-01-L-D-A in Tray packaging accommodates manual assembly processes or alternative handling systems. Both parts are electrically and mechanically identical and interchangeable at the functional level.

Frequently Asked Questions (FAQ)

Q: Are BSH-060-01-L-D-A-TR and BSH-060-01-L-D-A electrically identical?

A: Yes. Both parts are identical in electrical specifications, including connector type, number of positions, pitch, contact finish, and contact finish thickness.

Q: What is the only difference between these two parts?

A: The packaging format. BSH-060-01-L-D-A-TR is supplied in Cut Tape & Digi-Reel® packaging, while BSH-060-01-L-D-A is supplied in Tray packaging.

Q: Can I use BSH-060-01-L-D-A as a substitute for BSH-060-01-L-D-A-TR?

A: Yes, provided your assembly process accommodates Tray packaging. The connector specifications are identical.

Q: Can I use BSH-060-01-L-D-A-TR as a substitute for BSH-060-01-L-D-A?

A: Yes, provided your assembly process accommodates Cut Tape & Digi-Reel® packaging. The connector specifications are identical.

Q: Are both parts RoHS compliant?

A: Yes. Both BSH-060-01-L-D-A-TR and BSH-060-01-L-D-A are ROHS3 compliant.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts have Moisture Sensitivity Level 1, indicating unlimited shelf life without special storage requirements.
