BSH-050-01-F-D-A-TR Equivalent & Substitute Parts

Part Overview

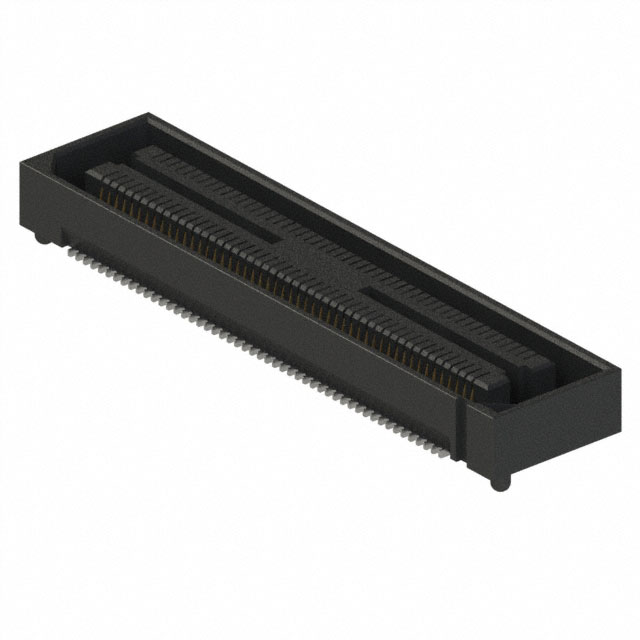

The BSH-050-01-F-D-A-TR is a 100 Position Connector Socket manufactured by Samtec Inc., designed for surface mount applications with center strip contacts and gold plating. This rectangular connector operates at a 0.020" (0.50mm) pitch with a 2-row configuration and includes board guide features. The part maintains Active product status and is ROHS3 compliant with unlimited moisture sensitivity rating (MSL 1).

Alternative part numbers may be required due to packaging availability, inventory constraints, or specific procurement specifications where tape and reel packaging is not suitable for the application workflow.

Substiute Parts

BSH-050-01-F-D-A-TR

Samtec Inc.In Stock: 1570BSH-050-01-F-D-A-TR Datasheet

Current PartRFQ

BSH-050-01-F-D-A

Samtec Inc.In Stock: 988BSH-050-01-F-D-A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The BSH-050-01-F-D-A-TR can be substituted with BSH-050-01-F-D-A based on electrical and mechanical compatibility. Both parts share identical specifications across all critical parameters that determine functional equivalence:

• 100 position socket configuration
• 0.020" (0.50mm) pitch spacing
• 2-row arrangement
• Center strip contact design
• Surface mount technology
• Gold contact finish at 3.00µin thickness
• 5mm mated stacking height
• 0.128" (3.25mm) height above board
• Board guide feature integration
• ROHS3 compliance
• MSL 1 rating

The only difference between these parts is the packaging format: BSH-050-01-F-D-A-TR uses Tape & Reel (TR) packaging, while BSH-050-01-F-D-A uses Tray packaging. This distinction affects handling, storage, and automated assembly processes but does not alter the electrical or mechanical performance of the connector itself.

Parameter Comparison

Engineering Selection Recommendations

Both BSH-050-01-F-D-A-TR and BSH-050-01-F-D-A maintain Active product status with full ROHS3 compliance and REACH unaffected designation. Selection between these parts should be based on packaging requirements and supply chain logistics rather than electrical or mechanical performance criteria.

The Tape & Reel (TR) packaging of BSH-050-01-F-D-A-TR is optimized for high-volume automated assembly operations. The Tray packaging of BSH-050-01-F-D-A accommodates manual assembly workflows or lower-volume production runs. Both packaging formats preserve the connector's MSL 1 rating and do not introduce additional handling constraints.

Frequently Asked Questions (FAQ)

Q: Are BSH-050-01-F-D-A-TR and BSH-050-01-F-D-A electrically identical?

A: Yes. Both parts feature identical electrical specifications including 100 positions, 0.020" pitch, gold contact finish at 3.00µin thickness, and center strip contact design. Electrical performance and signal integrity are equivalent.

Q: What is the functional difference between these parts?

A: The only difference is packaging format. BSH-050-01-F-D-A-TR uses Tape & Reel packaging suitable for pick-and-place assembly machines. BSH-050-01-F-D-A uses Tray packaging suitable for manual handling or alternative assembly processes.

Q: Can I use BSH-050-01-F-D-A in place of BSH-050-01-F-D-A-TR?

A: Yes, provided your assembly process accommodates tray-packaged components. The connector itself is mechanically and electrically identical. Verify that your pick-and-place equipment or manual assembly workflow supports tray feeding.

Q: Do both parts have the same moisture sensitivity requirements?

A: Yes. Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity constraints during storage or handling.

Q: Are both parts ROHS3 compliant?

A: Yes. Both BSH-050-01-F-D-A-TR and BSH-050-01-F-D-A are ROHS3 compliant with REACH unaffected status.
