BSH-030-01-L-D-A-TR Equivalent & Substitute Parts

Part Overview

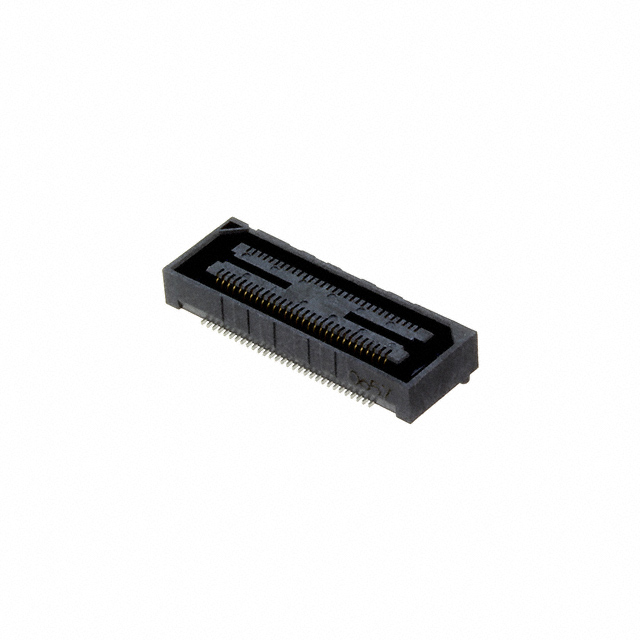

The BSH-030-01-L-D-A-TR is a 60-position rectangular connector socket manufactured by Samtec Inc., designed for surface mount applications with center strip contacts and gold plating. This connector is classified as Active product status and is fully ROHS3 compliant. Finding equivalent and substitute parts is necessary when the tape and reel packaging format is unavailable or when alternative packaging configurations better suit procurement requirements or inventory management strategies.

Substiute Parts

BSH-030-01-L-D-A-TR

Samtec Inc.In Stock: 15198BSH-030-01-L-D-A-TR Datasheet

Current PartRFQ

BSH-030-01-L-D-A

Samtec Inc.In Stock: 80586BSH-030-01-L-D-A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the BSH-030-01-L-D-A-TR is determined by electrical and mechanical compatibility across the following critical parameters:

• Connector type and contact configuration (Socket, Center Strip Contacts)
• Position count and pitch (60 positions at 0.020" / 0.50mm)
• Row configuration (2 rows)
• Surface mount mounting type
• Contact finish specification (Gold at 10.0µin thickness)
• Physical dimensions (5mm mated stacking height, 0.128" height above board)
• Compliance certifications (ROHS3, REACH Unaffected)

The primary difference between the main part and its substitute is the packaging format. The BSH-030-01-L-D-A-TR is supplied in tape and reel (TR) packaging, while the substitute BSH-030-01-L-D-A is supplied in tray packaging. Both parts are functionally and mechanically identical, with all electrical and physical parameters remaining constant.

Parameter Comparison

Engineering Selection Recommendations

Both the BSH-030-01-L-D-A-TR and BSH-030-01-L-D-A are Active product status components manufactured by Samtec Inc. and maintain identical electrical and mechanical specifications. Selection between these parts should be based on packaging requirements and procurement workflow:

The tape and reel format (BSH-030-01-L-D-A-TR) is optimized for automated pick-and-place assembly operations. The tray format (BSH-030-01-L-D-A) is suitable for manual assembly, lower-volume production runs, or when tape and reel packaging is not available.

Both parts satisfy ROHS3 compliance and REACH unaffected status, ensuring regulatory alignment for current manufacturing standards. The MSL rating of 1 (Unlimited) indicates no moisture sensitivity constraints during storage or handling.

Frequently Asked Questions (FAQ)

Q: Are BSH-030-01-L-D-A-TR and BSH-030-01-L-D-A electrically identical?

A: Yes. Both parts are functionally and electrically identical. They feature the same 60-position socket configuration, 0.020" pitch, gold contact finish, and surface mount specifications. The only difference is packaging format.

Q: What is the difference between tape and reel and tray packaging?

A: Tape and reel (TR) packaging supplies components wound on a continuous tape with a reel, designed for automated assembly equipment. Tray packaging supplies components in a static-dissipative tray, typically used for manual assembly or lower-volume applications.

Q: Can I use BSH-030-01-L-D-A in place of BSH-030-01-L-D-A-TR?

A: Yes, provided your assembly process can accommodate tray-packaged components. The connector itself is identical; only the packaging format differs.

Q: Are there any compliance differences between these parts?

A: No. Both parts carry identical ROHS3 compliance and REACH unaffected status. MSL rating is 1 (Unlimited) for both, indicating no moisture sensitivity requirements.

Q: What is the board guide feature?

A: The board guide is a mechanical feature that aids in proper connector alignment during assembly on the PCB.
