BS-32-6-NB Equivalent & Substitute Parts

Part Overview

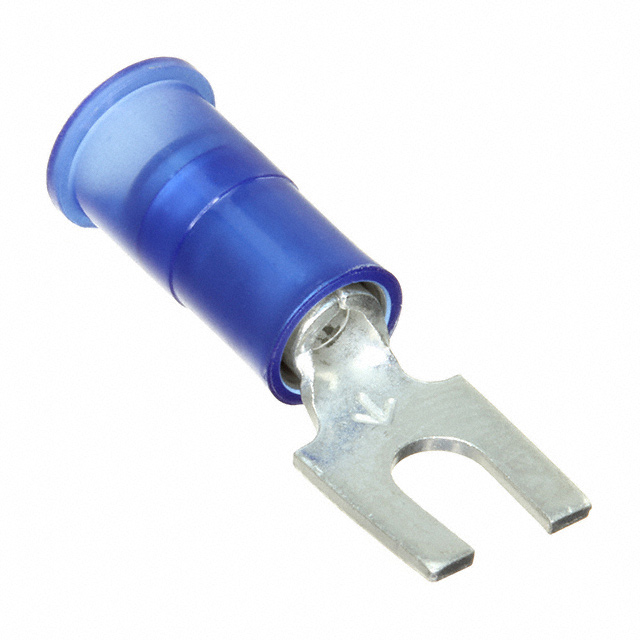

The BS-32-6-NB is a blue insulated spade terminal connector manufactured by 3M, designed for crimp termination of 14-16 AWG wire to a 6 stud configuration. This component is classified as a standard terminal for free-hanging, in-line applications. The part maintains Active product status and is RoHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are met, enabling procurement flexibility and supply chain continuity.

Substiute Parts

BS-32-6-NB

3MIn Stock: 791BS-32-6-NB Datasheet

Current PartRFQ

PNF14-6F-C

Panduit CorpIn Stock: 1123PNF14-6F-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the BS-32-6-NB is determined by strict equivalence across the following critical parameters:

• Wire Gauge: 14-16 AWG
• Stud/Tab Size: 6 Stud
• Terminal Type: Standard
• Termination Method: Crimp
• Insulation Type: Insulated
• Color: Blue
• Material - Insulation: Polyamide (PA), Nylon
• Mounting Type: Free Hanging (In-Line)
• RoHS Status: ROHS3 Compliant
• ECCN Classification: EAR99
• HTSUS Code: 8536.90.4000

The substitute part PNF14-6F-C meets all these criteria and is therefore classified as an equivalent alternative for the BS-32-6-NB.

Parameter Comparison

Engineering Selection Recommendations

Both the BS-32-6-NB and PNF14-6F-C maintain Active product status and are ROHS3 compliant, confirming ongoing manufacturer support and regulatory alignment. The PNF14-6F-C is designated as the MFR Recommended substitute and carries REACH Unaffected status, providing additional regulatory documentation. Selection between these parts should be based on availability, lead time, and procurement requirements, as both meet the specified electrical and mechanical parameters for 14-16 AWG crimp termination to a 6 stud configuration.

Frequently Asked Questions (FAQ)

Q: What determines if PNF14-6F-C can replace BS-32-6-NB?

A: Equivalence is established through matching wire gauge (14-16 AWG), stud size (6 stud), terminal type (standard), termination method (crimp), insulation type (insulated polyamide nylon), color (blue), mounting configuration (free hanging in-line), and regulatory compliance (ROHS3, EAR99, HTSUS 8536.90.4000).

Q: Are there packaging differences between these parts?

A: Both parts are supplied in Bulk packaging. Inventory availability differs: BS-32-6-NB has 754 pcs in stock, while PNF14-6F-C has 1014 pcs in stock.

Q: What is the difference in physical dimensions?

A: PNF14-6F-C provides specified dimensional data: Width - Outer Edges 0.280" (7.11mm), Length - Overall 0.800" (20.32mm), Insulation Diameter 0.162" (4.11mm), and Tongue Inside Opening 0.150" (3.81mm). Corresponding dimensional specifications for BS-32-6-NB are not provided in the product data.

Q: Are both parts RoHS compliant?

A: Yes. Both BS-32-6-NB and PNF14-6F-C are ROHS3 compliant. PNF14-6F-C additionally carries REACH Unaffected status.

Q: Can these parts be used interchangeably in existing assemblies?

A: Interchangeability is confirmed for applications requiring 14-16 AWG crimp spade terminals with 6 stud configuration, insulated blue polyamide construction, and free-hanging in-line mounting. Physical dimensions should be verified against assembly specifications.
