BS-32-10 Equivalent & Substitute Parts

Part Overview

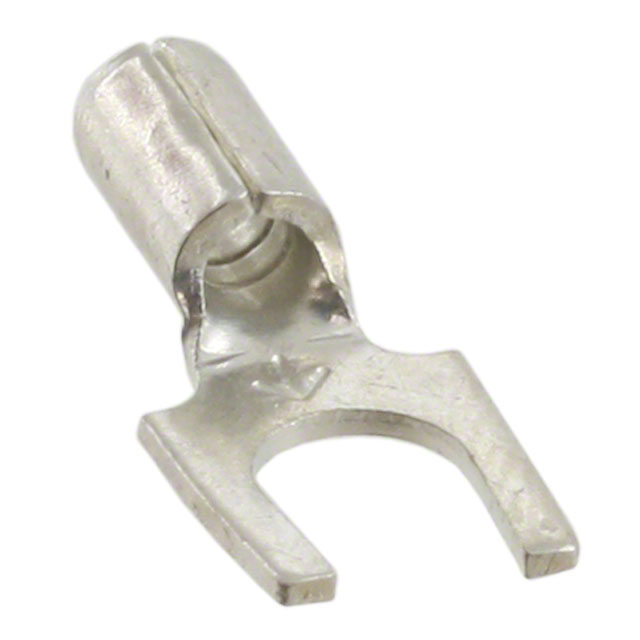

The BS-32-10 is a 10 stud spade terminal connector manufactured by 3M, designed for crimp termination of 14-16 AWG wire. This non-insulated terminal features a tin contact finish on copper (ETP) material and is configured as a free-hanging, in-line connector with a butted seam construction. The part is active in production status and ROHS3 compliant, making it suitable for applications requiring reliable electrical connections in standard industrial and commercial environments. Equivalent and substitute parts are identified to provide procurement flexibility, inventory alternatives, and continuity of supply.

Substiute Parts

BS-32-10

3MIn Stock: 1864BS-32-10 Datasheet

Current PartRFQ

8223

Keystone ElectronicsIn Stock: 194188223 Datasheet

MFR RecommendedRFQ

P14-10F-C

Panduit CorpIn Stock: 1044P14-10F-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the BS-32-10 are identified based on electrical and mechanical compatibility within the following critical parameters:

• Stud/Tab Size: 10 stud configuration (electrical interface requirement)
• Termination Type: Crimp termination (assembly method compatibility)
• Contact Material & Finish: Copper with tin finish (electrical conductivity and corrosion resistance)
• Mounting Configuration: Free hanging, in-line orientation (mechanical fit)
• Insulation Status: Non-insulated design (form factor consistency)
• Regulatory Compliance: ROHS3 compliance (environmental and safety standards)

The substitute parts listed maintain these core parameters while allowing for minor variations in wire gauge range, dimensional tolerances, and seam construction methods, provided the primary electrical and mechanical interfaces remain compatible.

Parameter Comparison

Engineering Selection Recommendations

All three parts—BS-32-10, 8223, and P14-10F-C—maintain active production status and full ROHS3 compliance with REACH unaffected designation, confirming their suitability for current applications requiring environmental and regulatory adherence.

The BS-32-10 (3M) and 8223 (Keystone Electronics) are direct equivalents, sharing identical wire gauge range (14-16 AWG), outer dimensions (0.300" width, 0.650" length), and termination geometry (0.250" ring center to termination and termination length). Both employ tin-finished copper (ETP) contacts and butted/standard seam construction. Selection between these two is based on inventory availability and procurement preference.

The P14-10F-C (Panduit Corp) accommodates an extended wire gauge range (14-18 AWG) and features increased outer dimensions (0.340" width, 0.710" length) with brazed seam and serrated termination construction. This part is suitable for applications where the wider gauge compatibility and enhanced mechanical features are beneficial, provided the larger physical envelope is accommodated within the assembly design.

Frequently Asked Questions (FAQ)

Q: Can P14-10F-C be used as a direct replacement for BS-32-10?

A: P14-10F-C is mechanically and electrically compatible with BS-32-10 for the 14-16 AWG wire range overlap. However, the increased outer dimensions (0.340" vs. 0.300" width; 0.710" vs. 0.650" length) must be verified against space constraints in the target assembly. The extended 14-18 AWG capability and brazed seam construction represent design enhancements rather than limitations.

Q: What is the difference between butted seam and brazed seam construction?

A: Both seam types provide structural integrity for the terminal. Butted seam (BS-32-10, 8223) uses a mechanical joint, while brazed seam (P14-10F-C) employs a metallurgical bond. The choice depends on application requirements for vibration resistance and mechanical durability.

Q: Are all three parts suitable for the same wire gauge applications?

A: BS-32-10 and 8223 are rated for 14-16 AWG wire. P14-10F-C accommodates 14-18 AWG, providing broader compatibility. For applications using 14-16 AWG wire, all three parts are suitable within their specified parameters.

Q: What packaging considerations apply to these parts?

A: All three parts are supplied in bulk packaging. Inventory availability varies: BS-32-10 (1764 pcs), 8223 (19400 pcs), and P14-10F-C (969 pcs). Procurement decisions may be influenced by required order quantities and lead times.

Q: Do these parts require any special handling or storage?

A: All parts carry MSL rating 1 (unlimited) or not applicable, indicating no moisture sensitivity concerns. Standard component storage practices apply.
