BPJJ03 Equivalent & Substitute Parts

Part Overview

The BPJJ03 is an adapter connector manufactured by Switchcraft Inc. that converts Phono (RCA) Jack to Phono (RCA) Jack connections. This panel mount barrel connector is designed for applications requiring female-to-female RCA adapter functionality with bulkhead mounting capability. The part is actively stocked with 774 units available as new original inventory. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained, allowing for alternative sourcing while preserving circuit performance and mechanical fit.

Substiute Parts

BPJJ03

Switchcraft Inc.In Stock: 881BPJJ03 Datasheet

Current PartRFQ

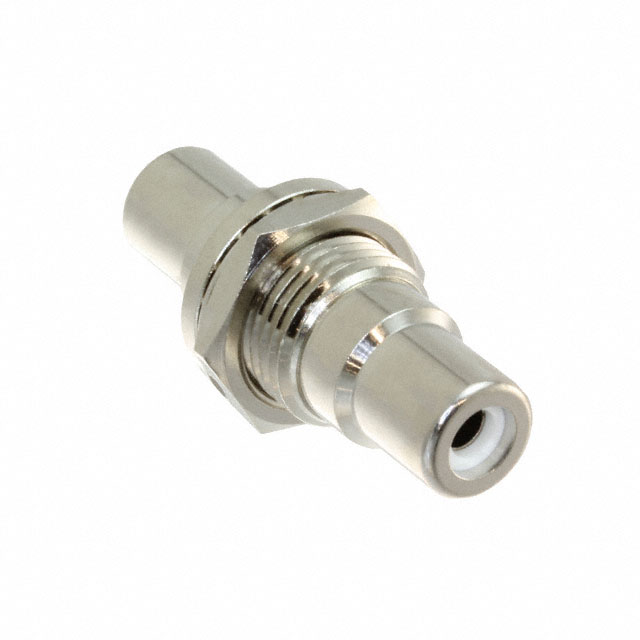

BPJJ03X

Switchcraft Inc.In Stock: 2159BPJJ03X Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the BPJJ03 are identified based on strict equivalence of the following parameters:

• Connector type and gender configuration (Phono RCA Jack to Phono RCA Jack, Female to Female)
• Number of conductors (2 Conductors)
• Mounting type and feature (Panel Mount with Bulkhead Rear Side Nut)
• Body material and finish (Brass with Nickel finish)
• Contact material plating (Nickel)
• Shielding configuration (Unshielded)
• Connector diameter specifications (0.126" ID / 0.327" OD)
• Regulatory compliance (ROHS3 Compliant)

The BPJJ03X is classified as a same-series substitute with identical electrical and mechanical specifications, differing only in packaging configuration (Bulk packaging versus standard packaging).

Parameter Comparison

Engineering Selection Recommendations

Both the BPJJ03 and BPJJ03X maintain identical electrical and mechanical specifications, ensuring direct interchangeability in circuit applications. Selection between these parts should be based on:

• Inventory availability: BPJJ03X has higher stock availability (2055 units) compared to BPJJ03 (774 units)
• Packaging requirements: BPJJ03X is supplied in bulk packaging, suitable for high-volume assembly operations
• Regulatory compliance: Both parts are ROHS3 compliant and suitable for applications requiring environmental compliance
• Product status: Both parts are active products from Switchcraft Inc., ensuring continued availability and support

Frequently Asked Questions (FAQ)

Q: Can BPJJ03X be used as a direct replacement for BPJJ03?

A: Yes. The BPJJ03X is electrically and mechanically equivalent to the BPJJ03. Both parts feature identical connector specifications, mounting configurations, and material compositions. The primary difference is packaging format.

Q: What does "same series" substitution mean?

A: Same series substitution indicates that the substitute part originates from the same product line and maintains all critical electrical and mechanical parameters. The BPJJ03X is designated as the base product number variant with bulk packaging.

Q: Are there any compatibility concerns when switching between BPJJ03 and BPJJ03X?

A: No compatibility concerns exist. Both parts are panel mount adapters with identical bulkhead rear side nut mounting features, conductor count, and connector diameter specifications. They are suitable for the same applications without modification.

Q: What is included with the BPJJ03X?

A: The BPJJ03X includes 3 pieces per connector: 1 connector body, 1 mounting nut, and 1 washer. These components provide complete bulkhead mounting capability.

Q: Are both parts RoHS compliant?

A: Yes. Both BPJJ03 and BPJJ03X are ROHS3 compliant, meeting environmental and regulatory requirements for restricted substance use.
