BNX005-01 Equivalent & Substitute Parts

Part Overview

The BNX005-01 is a 5th order LC EMI filter manufactured by Murata Electronics, designed for EMI suppression in data line applications for mobile devices. This through-hole mounted block filter provides 40dB attenuation across the 1MHz to 1GHz frequency range with dual-channel configuration and 15A current rating.

The BNX005-01 carries an Obsolete product status. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain reliability, and support ongoing production or maintenance requirements for systems utilizing this component.

Substiute Parts

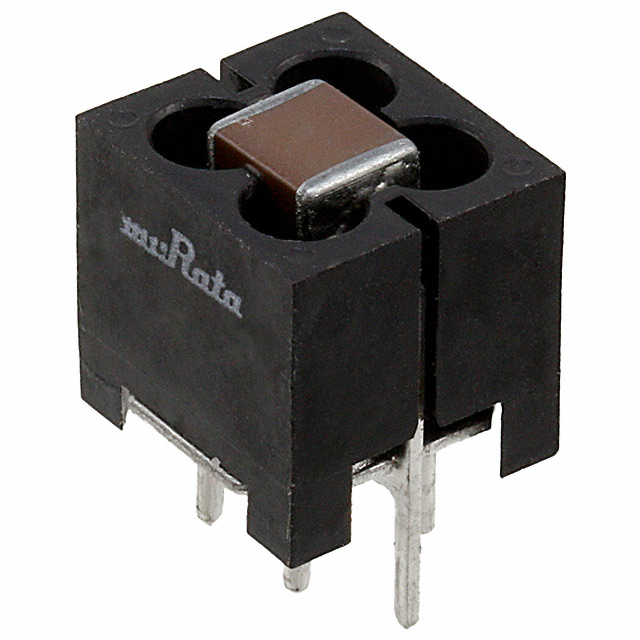

BNX005-01

Murata ElectronicsIn Stock: 1833BNX005-01 Datasheet

Current PartRFQ

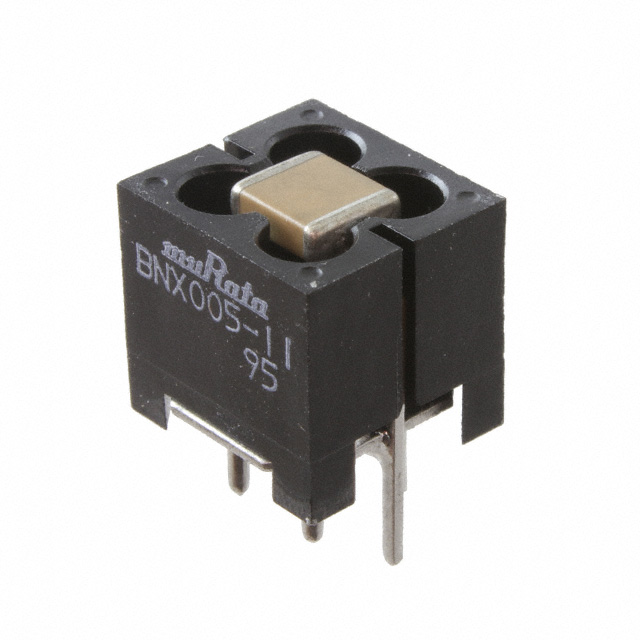

BNX005-11

Murata ElectronicsIn Stock: 2718BNX005-11 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the BNX005-01 is determined by strict equivalence across the following critical parameters:

• Filter configuration: 5th order LC low-pass topology
• Channel count: 2 channels
• Current capacity: 15 A minimum
• Attenuation performance: 40dB @ 1MHz ~ 1GHz
• Voltage rating: 50V minimum
• Mounting method: Through-hole
• Package form factor: Block, 4-lead configuration
• Regulatory compliance: ROHS3 compliance

The BNX005-11 qualifies as a direct substitute based on identical electrical specifications, matching mechanical dimensions within tolerance, and equivalent regulatory certifications. The primary distinction is product status: BNX005-11 maintains Active status with expanded temperature range capability.

Parameter Comparison

Engineering Selection Recommendations

The BNX005-11 is the qualified substitute for the obsolete BNX005-01 based on the following engineering criteria:

Electrical Equivalence: Both parts deliver identical filter performance with 5th order LC topology, 2-channel configuration, 15A current capacity, and 40dB attenuation across the 1MHz to 1GHz band. Voltage rating and ESD characteristics are equivalent.

Mechanical Compatibility: Package form factor, mounting method, and board-level dimensions are identical. Height variance (14.60mm vs. 13.00mm) falls within standard PCB assembly tolerances and does not impact mechanical fit or thermal performance.

Regulatory Compliance: Both parts maintain ROHS3 compliance and identical MSL ratings, ensuring equivalent environmental and manufacturing process compatibility.

Supply Chain Advantage: The BNX005-11 maintains Active product status with documented inventory availability, eliminating obsolescence risk associated with the BNX005-01.

Temperature Range: The BNX005-11 extends the lower operating temperature limit to -40°C, providing enhanced performance margin for applications requiring extended temperature operation.

Frequently Asked Questions (FAQ)

Q: Can BNX005-11 be used as a direct replacement for BNX005-01 in existing designs?

A: Yes. The BNX005-11 is electrically and mechanically equivalent to the BNX005-01. Identical filter specifications, current rating, voltage rating, and package configuration ensure direct substitution without circuit redesign. The minor height difference (0.5mm) is within standard PCB assembly tolerances.

Q: What is the primary reason to substitute BNX005-01 with BNX005-11?

A: The BNX005-01 is classified as Obsolete, creating supply chain risk. The BNX005-11 is an Active product with documented inventory, ensuring long-term availability and manufacturing continuity.

Q: Are there any performance differences between these parts?

A: No performance differences exist in filter characteristics. Both parts provide identical attenuation, frequency response, and current handling. The BNX005-11 offers an extended lower temperature operating limit (-40°C vs. -30°C), which represents an operational advantage.

Q: Do both parts require identical PCB layout and mounting procedures?

A: Yes. Both parts use identical through-hole mounting with 4-lead block configuration. PCB footprint, lead spacing, and assembly procedures are equivalent. The 0.5mm height difference does not affect standard wave or reflow soldering processes.

Q: Are regulatory certifications equivalent?

A: Yes. Both parts maintain ROHS3 compliance and identical MSL ratings. No additional qualification or compliance documentation is required when substituting BNX005-11 for BNX005-01.

Q: What is the inventory status for each part?

A: BNX005-01 (Obsolete): 1807 pcs available. BNX005-11 (Active): 2630 pcs available. The BNX005-11 represents the recommended long-term supply source.
