BLM8G0710S-30PBY Equivalent & Substitute Parts

Part Overview

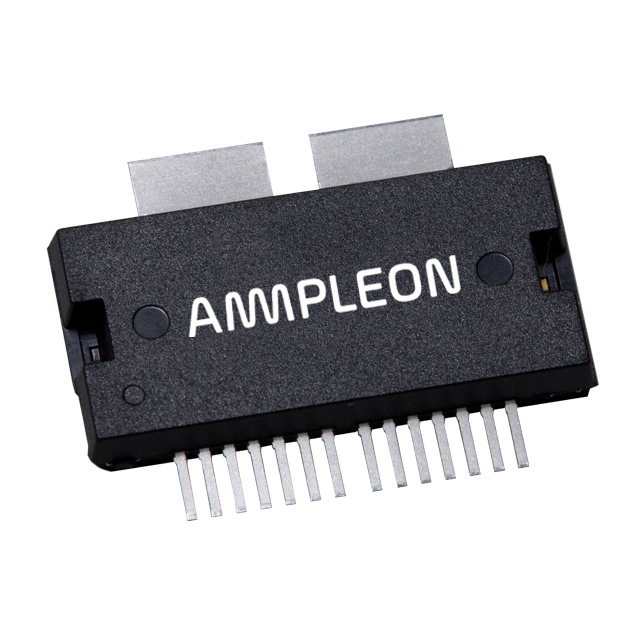

The BLM8G0710S-30PBY is an RF FET LDMOS amplifier IC manufactured by Ampleon USA Inc., designed for RF amplification applications at 957.5MHz with 35dB gain. This device is classified as Last Time Buy, indicating discontinued production with limited inventory availability. Finding equivalent and substitute parts is necessary to ensure design continuity and long-term supply chain reliability for applications requiring RF amplification in this frequency and gain specification range.

Substiute Parts

BLM8G0710S-30PBY

Ampleon USA Inc.In Stock: 806BLM8G0710S-30PBY Datasheet

Current PartRFQ

B10H0710N40DX

Ampleon USA Inc.In Stock: 1150B10H0710N40DX Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the BLM8G0710S-30PBY is determined by the following critical parameters:

• Gain: 35dB (exact match required)
• Frequency Range: 957.5MHz operation capability (must fall within or encompass this frequency)
• Technology: LDMOS FET architecture
• Mounting Type: Surface Mount
• Package Compatibility: Physical and electrical compatibility with SOT-1211-3 footprint or equivalent LGA package

The substitute part B10H0710N40DX meets these criteria through matching gain specification (35dB), overlapping frequency range (700MHz ~ 1GHz encompasses 957.5MHz), identical LDMOS technology, surface mount configuration, and compatible LGA package format.

Parameter Comparison

Engineering Selection Recommendations

The B10H0710N40DX serves as an active substitute for the BLM8G0710S-30PBY based on the following factors:

• Product Status: B10H0710N40DX maintains Active status, ensuring continued availability and supply chain stability compared to the Last Time Buy status of the original part.
• Compliance: BLM8G0710S-30PBY is ROHS3 Compliant; RoHS compliance status for B10H0710N40DX is not specified in available documentation.
• Frequency Coverage: The B10H0710N40DX frequency range of 700MHz ~ 1GHz fully encompasses the 957.5MHz operating point of the original design.
• Gain Specification: Both parts deliver identical 35dB gain, maintaining amplification performance.
• Package Transition: Migration from SOT-1211-3 (16-HSOPF) to 34-TLGA Exposed Pad requires PCB layout redesign and thermal management evaluation due to different package geometries and pin configurations.

Frequently Asked Questions (FAQ)

Q: Can B10H0710N40DX be used as a direct pin-for-pin replacement?

A: No. The BLM8G0710S-30PBY uses a 16-HSOPF package (SOT-1211-3), while the B10H0710N40DX uses a 34-LGA (12x8) package. Pin count, pinout, and physical dimensions differ, requiring PCB redesign.

Q: Are the gain specifications identical between these parts?

A: Yes. Both parts specify 35dB gain, ensuring equivalent amplification performance in RF applications.

Q: Does the frequency range difference affect compatibility?

A: The B10H0710N40DX frequency range of 700MHz ~ 1GHz encompasses the 957.5MHz operating frequency of the original part. The substitute is suitable for this application frequency.

Q: What is the impact of different supply voltage specifications?

A: The original part specifies 28V supply voltage, while the substitute specifies 48V rated voltage with 110V maximum. Circuit design modifications may be required to accommodate different voltage operating points.

Q: Is RoHS compliance maintained with the substitute part?

A: The original BLM8G0710S-30PBY is ROHS3 Compliant. RoHS compliance status for B10H0710N40DX is not specified in the provided documentation and must be verified with the manufacturer.

Q: What thermal considerations apply to the package change?

A: The 34-TLGA Exposed Pad package of the B10H0710N40DX provides different thermal characteristics compared to the 16-HSOPF package. Thermal analysis and PCB layout optimization are necessary to ensure adequate heat dissipation.
