BK/S-8301-4 Fuse Block Cartridge 600V Chassis Mount

Part Overview

The BK/S-8301-4 is a 30 A, 600V cartridge fuse block designed for chassis mount applications with 4 circuits. This component is classified as obsolete, which necessitates identification of active equivalent parts to maintain supply chain continuity and ensure long-term availability for new designs and field replacements.

Substiute Parts

BK/S-8301-4

Eaton - Electronics DivisionIn Stock: 768BK/S-8301-4 Datasheet

Current PartRFQ

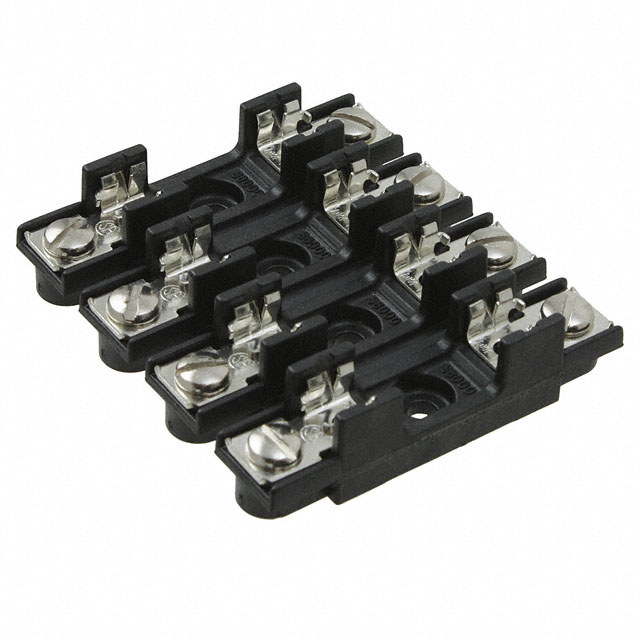

BK/S-8301-4-R

Eaton - Electronics DivisionIn Stock: 1014BK/S-8301-4-R Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the BK/S-8301-4 is determined by strict equivalence across the following critical parameters:

• Current Rating: 30 A (exact match required)
• Voltage Rating: 600V (exact match required)
• Fuse Size: 0.25" Dia x 1.26" L / 6.35mm x 32mm (exact match required)
• Number of Circuits: 4 (exact match required)
• Fuse Type: Cartridge (exact match required)
• Fuseholder Type: Block (exact match required)
• Mounting Type: Chassis Mount (exact match required)
• Termination Style: Screw Terminal (exact match required)
• Contact Material: Spring Bronze (exact match required)
• Contact Finish: Tin-Lead (exact match required)

The substitute part BK/S-8301-4-R maintains identical electrical and mechanical specifications while offering active product status and improved regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

The BK/S-8301-4-R is the direct functional equivalent of the BK/S-8301-4 and is suitable for all applications requiring a 30 A, 600V, 4-circuit cartridge fuse block with chassis mount configuration. Selection of the BK/S-8301-4-R is supported by the following factors:

• Product Status: The substitute part maintains active status, ensuring continued availability and manufacturer support.
• Regulatory Compliance: The BK/S-8301-4-R is ROHS3 compliant and REACH unaffected, meeting current environmental and safety standards.
• Electrical and Mechanical Compatibility: All critical parameters are identical to the original part, ensuring direct functional substitution without circuit redesign or mechanical modification.
• Inventory Availability: The substitute part is available in higher quantity (950 Pcs) compared to the obsolete original (716 Pcs).

Frequently Asked Questions (FAQ)

Q: Can the BK/S-8301-4-R be used as a direct replacement for the BK/S-8301-4?

A: Yes. The BK/S-8301-4-R is electrically and mechanically identical to the BK/S-8301-4 across all specified parameters, including current rating, voltage, fuse size, circuit count, mounting type, and termination style. No circuit modifications or mechanical adjustments are required.

Q: What is the difference between the BK/S-8301-4 and BK/S-8301-4-R?

A: The primary differences are product status and regulatory compliance. The BK/S-8301-4-R is an active product with ROHS3 compliance and REACH unaffected status, while the original BK/S-8301-4 is obsolete and RoHS non-compliant. Electrical and mechanical specifications are identical.

Q: Are there any compatibility concerns when substituting the BK/S-8301-4-R for the BK/S-8301-4?

A: No compatibility concerns exist. Both parts are from the same manufacturer (Eaton - Electronics Division), same series (S-8000), and share identical specifications for current rating, voltage, fuse size, number of circuits, mounting configuration, and termination style.

Q: What fuse types are compatible with these fuse blocks?

A: These fuse blocks are designed for 3AG cartridge fuses with dimensions 1/4" x 1-1/4" (SFE-20 specification).

Q: Is the packaging difference between the two parts significant?

A: The BK/S-8301-4-R is supplied in bulk packaging, while the original part packaging is not specified. This difference does not affect electrical or mechanical performance and relates only to order and storage considerations.
