Equivalent & Substitute Parts for BK/HTB-98M

Part Overview

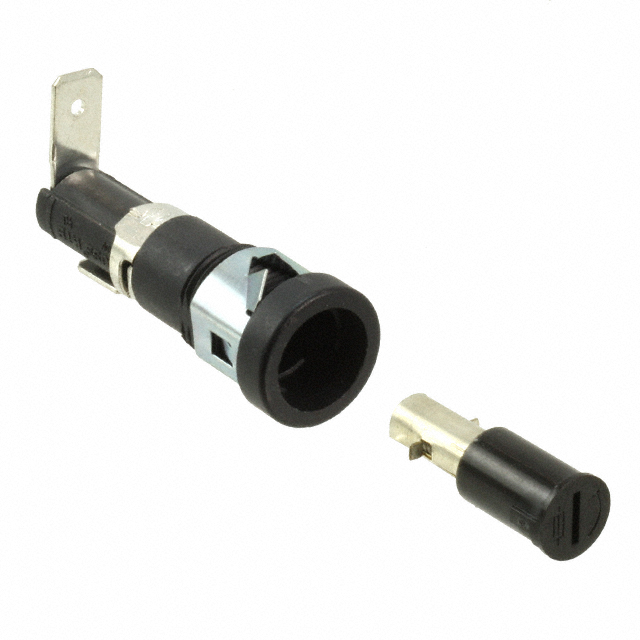

The BK/HTB-98M is a cartridge fuse holder manufactured by Eaton - Electronics Division, designed for 16 A circuits at 250V with panel mount configuration. This component accommodates 5mm x 20mm cartridge fuses and features quick connect termination at 0.250" (6.3mm) spacing.

The BK/HTB-98M is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure procurement availability, and support ongoing system maintenance and repairs where original stock may become depleted.

Substiute Parts

BK/HTB-98M

Eaton - Electronics DivisionIn Stock: 1117BK/HTB-98M Datasheet

Current PartRFQ

BK/HTB-98M-R

Eaton - Electronics DivisionIn Stock: 784BK/HTB-98M-R Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the BK/HTB-98M is determined by strict equivalence across the following electrical and mechanical parameters:

• Current Rating: 16 A (exact match required)
• Voltage Rating: 250V (exact match required)
• Fuse Size: 5mm x 20mm cartridge format (exact match required)
• Mounting Configuration: Panel mount orientation (exact match required)
• Circuit Count: Single circuit (1) (exact match required)
• Termination Interface: Quick Connect - 0.250" (6.3mm) (exact match required)

The substitute part BK/HTB-98M-R meets all specified electrical and mechanical parameters identically to the main part number, establishing direct substitution compatibility.

Parameter Comparison

Engineering Selection Recommendations

BK/HTB-98M-R is the direct substitute for BK/HTB-98M. Both components are manufactured by Eaton - Electronics Division within the HTB series and share identical electrical ratings (16 A, 250V) and mechanical specifications (5mm x 20mm cartridge, panel mount, single circuit, quick connect termination).

The primary distinction between these parts is product status and regulatory compliance:

• BK/HTB-98M: Obsolete product status; RoHS non-compliant
• BK/HTB-98M-R: Active product status; RoHS Compliant

For new designs, system upgrades, or applications requiring RoHS compliance, BK/HTB-98M-R is the appropriate selection. For legacy system maintenance where original specifications must be preserved, BK/HTB-98M remains functionally equivalent where available inventory permits.

Both parts carry identical ECCN (EAR99) and HTSUS (8538.90.8180) classifications and share MSL rating of 1 (Unlimited).

Frequently Asked Questions (FAQ)

Q: Can BK/HTB-98M-R be used as a direct replacement for BK/HTB-98M in existing installations?

A: Yes. BK/HTB-98M-R is electrically and mechanically equivalent to BK/HTB-98M. All critical parameters—current rating (16 A), voltage (250V), fuse size (5mm x 20mm), mounting type (panel mount), circuit count (1), and termination style (quick connect 0.250")—are identical. Physical installation and electrical performance are interchangeable.

Q: What is the difference between BK/HTB-98M and BK/HTB-98M-R?

A: The primary differences are product status and RoHS compliance. BK/HTB-98M is obsolete and RoHS non-compliant, while BK/HTB-98M-R is an active product with RoHS compliance. Functionally and electrically, both components are equivalent.

Q: Are there packaging differences between these part numbers?

A: BK/HTB-98M-R is supplied in bulk packaging, whereas BK/HTB-98M packaging specification is not detailed in available data. For specific packaging requirements, consult procurement documentation or contact the manufacturer directly.

Q: Can I use a different fuse size with these holders?

A: No. Both BK/HTB-98M and BK/HTB-98M-R are designed exclusively for 5mm x 20mm cartridge fuses. Using alternative fuse sizes will result in improper fit and compromised circuit protection.

Q: What termination method do these fuse holders use?

A: Both components feature quick connect termination with 0.250" (6.3mm) spacing. This termination style accommodates standard quick connect terminals and does not require soldering.

Q: Are these fuse holders suitable for 120V applications?

A: No. Both BK/HTB-98M and BK/HTB-98M-R are rated for 250V operation. Using these components in lower voltage applications is acceptable from a safety standpoint, but they are not optimized for voltages below their rated specification.
