Equivalent & Substitute Parts for BK/HTB-82M-R

Part Overview

The BK/HTB-82M-R is a cartridge fuse holder manufactured by Eaton - Electronics Division, designed for panel mount applications with a 16 A current rating at 250V. This component accommodates 5mm x 20mm cartridge fuses and features quick connect termination. The main part number BK/HTB-82M-R is classified as obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity and ensure procurement availability for applications requiring this fuse holder specification.

Substiute Parts

BK/HTB-82M-R

Eaton - Electronics DivisionIn Stock: 1183BK/HTB-82M-R Datasheet

Current PartRFQ

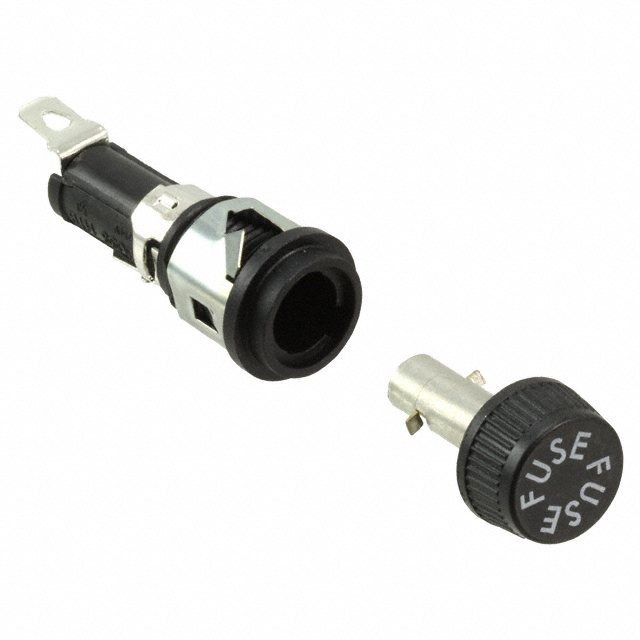

HTB-82M-R

Eaton - Electronics DivisionIn Stock: 886HTB-82M-R Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the BK/HTB-82M-R is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must match the following criteria:

• Current Rating: 16 A
• Voltage Rating: 250V
• Fuse Size: 5mm x 20mm cartridge format
• Number of Circuits: 1
• Mounting Configuration: Panel Mount
• Termination Style: Quick Connect - 0.187" (4.7mm)
• Fuse Type: Cartridge

The substitute part HTB-82M-R (without the BK prefix) meets all specified parameters and is classified as an active product, providing current availability and ongoing manufacturer support.

Parameter Comparison

Engineering Selection Recommendations

The HTB-82M-R substitute part is functionally equivalent to the obsolete BK/HTB-82M-R across all critical electrical and mechanical parameters. The substitute part carries active product status, ensuring ongoing availability and manufacturer support. The HTB-82M-R is RoHS compliant, meeting current environmental regulatory requirements. Both parts share identical ECCN and HTSUS classifications, confirming regulatory equivalence. Selection of the HTB-82M-R substitute is appropriate for applications requiring the 16 A, 250V, 5mm x 20mm cartridge fuse holder specification with panel mount configuration and quick connect termination.

Frequently Asked Questions (FAQ)

Q: What is the primary difference between BK/HTB-82M-R and HTB-82M-R?

A: The BK/HTB-82M-R is classified as obsolete, while HTB-82M-R is an active product. Both parts are electrically and mechanically identical across all specified parameters. The HTB-82M-R substitute provides current procurement availability.

Q: Are the electrical ratings identical between the main part and substitute?

A: Yes. Both parts are rated for 16 A at 250V and accommodate 5mm x 20mm cartridge fuses with identical termination and mounting specifications.

Q: Does the substitute part meet RoHS compliance requirements?

A: The HTB-82M-R substitute is RoHS compliant. RoHS status for the obsolete BK/HTB-82M-R was not specified in the provided data.

Q: Can HTB-82M-R be used as a direct replacement in existing designs?

A: Yes. The HTB-82M-R substitute maintains identical electrical ratings, fuse size compatibility, mounting configuration, and termination style, enabling direct substitution in applications designed for the BK/HTB-82M-R.

Q: What packaging options are available for the substitute part?

A: The HTB-82M-R substitute is available in bulk packaging with 787 pieces in current inventory stock.

Q: Are there any differences in moisture sensitivity or environmental ratings?

A: Both parts share identical Moisture Sensitivity Level (MSL) classification of 1 (Unlimited), indicating no moisture sensitivity restrictions for either component.
