Equivalent & Substitute Parts for BK/HTB-62M

Part Overview

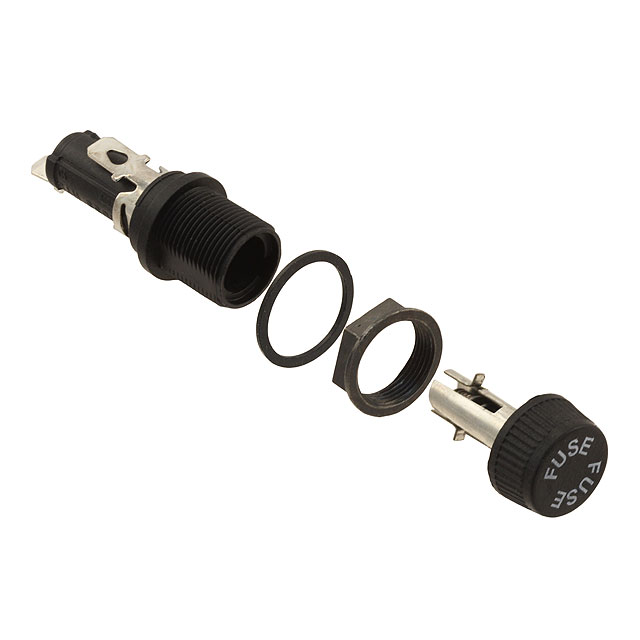

The BK/HTB-62M is a cartridge fuse holder manufactured by Eaton - Electronics Division, designed for 16 A at 250V operation in panel mount applications. This component accommodates 5mm x 20mm cartridge fuses with quick connect termination. The BK/HTB-62M carries an obsolete product status, making identification of equivalent and substitute parts essential for ongoing system maintenance and component procurement.

Substiute Parts

BK/HTB-62M

Eaton - Electronics DivisionIn Stock: 1003BK/HTB-62M Datasheet

Current PartRFQ

BK/HTB-62M-R

Eaton - Electronics DivisionIn Stock: 841BK/HTB-62M-R Datasheet

DirectRFQ

03455RF2H

Littelfuse Inc.In Stock: 106403455RF2H Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the BK/HTB-62M is determined by the following critical parameters:

Direct Equivalency Criteria:

• Fuse size: 5mm x 20mm cartridge format
• Voltage rating: 250V minimum
• Mounting configuration: Panel mount
• Termination interface: Quick connect 0.187" (4.7mm)
• Number of circuits: Single circuit (1)

Current Rating Considerations:

• Direct equivalent: 16 A current rating
• Similar substitute: 10 A current rating (lower capacity, same form factor and interface)

The BK/HTB-62M-R qualifies as a direct equivalent, maintaining identical electrical and mechanical specifications while offering active product status. The Littelfuse 03455RF2H functions as a similar substitute with compatible mechanical and electrical interfaces, though with a reduced current rating of 10 A.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Preferred): The BK/HTB-62M-R is the primary substitute for the obsolete BK/HTB-62M. Both components share identical electrical specifications (16 A, 250V), mechanical form factor (5mm x 20mm cartridge), and termination interface (quick connect 0.187"). The BK/HTB-62M-R carries active product status and ROHS3 compliance, addressing regulatory requirements that the original part does not meet.

For Alternative Applications: The Littelfuse 03455RF2H provides mechanical and electrical compatibility within the same fuse holder category. This part maintains the same voltage rating (250V), fuse size (5mm x 20mm), mounting configuration (panel mount), and termination style (quick connect 0.187"). The current rating difference (10 A versus 16 A) restricts its use to circuits designed for 10 A operation or lower. The 03455RF2H offers ROHS3 compliance and active product status.

Compliance Considerations: Both substitute parts achieve ROHS3 compliance, whereas the original BK/HTB-62M is RoHS non-compliant. Selection should account for system-level regulatory requirements and environmental standards applicable to the end application.

Frequently Asked Questions (FAQ)

Q: Can the BK/HTB-62M-R be used as a direct replacement for the BK/HTB-62M? A: Yes. The BK/HTB-62M-R maintains identical current rating (16 A), voltage rating (250V), fuse size (5mm x 20mm), mounting type (panel mount), and termination interface (quick connect 0.187"). Both are single-circuit cartridge fuse holders. The primary difference is product status: BK/HTB-62M-R is active while BK/HTB-62M is obsolete.

Q: What is the key difference between the BK/HTB-62M-R and the Littelfuse 03455RF2H? A: The primary difference is current rating. The BK/HTB-62M-R is rated for 16 A, while the 03455RF2H is rated for 10 A. All other parameters—voltage (250V), fuse size (5mm x 20mm), mounting (panel mount), and termination (quick connect 0.187")—are identical. The 03455RF2H is suitable only for circuits designed for 10 A operation.

Q: Are there packaging differences between these parts? A: The BK/HTB-62M-R is supplied in bulk packaging. The Littelfuse 03455RF2H is also supplied in bulk packaging. Packaging specifications should be confirmed with the supplier for specific procurement requirements.

Q: Do all three parts support the same fuse cartridge size? A: Yes. All three parts—BK/HTB-62M, BK/HTB-62M-R, and 03455RF2H—accommodate 5mm x 20mm cartridge fuses and use identical quick connect termination (0.187" / 4.7mm).

Q: What is the significance of RoHS compliance in selecting a substitute? A: The BK/HTB-62M is RoHS non-compliant, while both BK/HTB-62M-R and 03455RF2H are ROHS3 compliant. If the application or end market requires RoHS compliance, either substitute part satisfies this requirement. The original part does not.

Q: Can the 03455RF2H be used in a 16 A circuit? A: No. The 03455RF2H is rated for 10 A maximum. Using it in a 16 A circuit exceeds its current rating and violates electrical safety standards. The BK/HTB-62M-R must be used for 16 A applications.
