BISMS02BI-NA Equivalent & Substitute Parts Reference

Part Overview

The BISMS02BI-NA is a Bluetooth v2.0, Class 1 transceiver module manufactured by Laird Connectivity Inc., designed for 2.4GHz RF applications with integrated chip antenna and U.FL connector. This module operates at 3.3V to 7V supply voltage and delivers 6dBm output power with -84dBm sensitivity over UART serial interface.

The BISMS02BI-NA is classified as Obsolete product status. Identification of equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for applications currently utilizing this module.

Substiute Parts

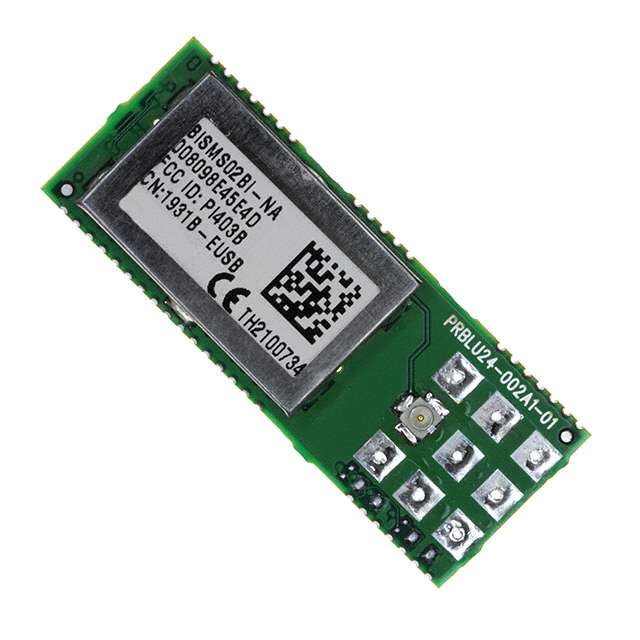

BISMS02BI-NA

Laird Connectivity Inc.In Stock: 1087BISMS02BI-NA Datasheet

Current PartRFQ

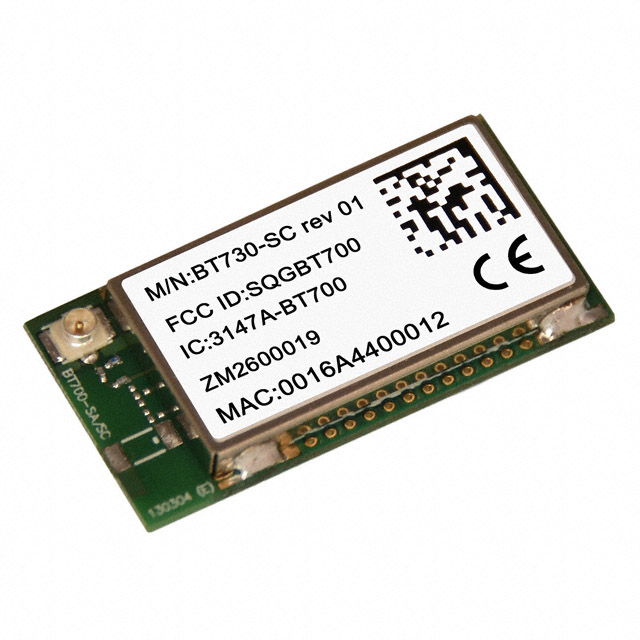

BT730-SC

Laird Connectivity Inc.In Stock: 1333BT730-SC Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the BISM02BI-NA is determined by the following critical parameters:

RF Compatibility Requirements:

• RF Family/Standard: Bluetooth
• Protocol: Bluetooth v2.0, Class 1
• Frequency: 2.4GHz
• Serial Interface: UART

Physical & Environmental Compatibility:

• Mounting Type: Surface Mount
• Package Type: Module
• Operating Temperature Range: -40°C ~ 85°C
• MSL Rating: 3 (168 Hours)

Electrical Interface Compatibility:

• Antenna connector type (U.FL)
• Supply voltage overlap capability
• UART serial communication protocol

The BT730-SC qualifies as a direct substitute based on matching RF standard (Bluetooth v2.0, Class 1), frequency band (2.4GHz), serial interface (UART), surface mount packaging, operating temperature range, and MSL rating. Both parts utilize U.FL antenna connectors and operate within compatible environmental specifications.

Parameter Comparison

Engineering Selection Recommendations

BT730-SC Substitution Basis:

The BT730-SC is a qualified substitute for the BISMS02BI-NA based on the following engineering criteria:

1. RF Protocol Compatibility: Both modules implement Bluetooth v2.0, Class 1 standard at 2.4GHz frequency band with UART serial interface, ensuring protocol-level compatibility.

2. Physical Integration: Both modules are surface-mount packaged with U.FL antenna connectors and identical operating temperature range (-40°C ~ 85°C) and MSL rating (3, 168 Hours).

3. Supply Voltage Overlap: Operating voltage ranges overlap at 3.3V to 5V, enabling direct substitution within this common operating window.

4. Regulatory Compliance: Both parts share identical ECCN (5A002A1 LAI) and HTSUS (8517.62.0090) classifications. BT730-SC carries ROHS3 Compliance certification.

5. Active Product Status: BT730-SC maintains Active product status with confirmed inventory availability (1253 Pcs), addressing supply continuity for obsolete BISMS02BI-NA.

Design Considerations:

• BT730-SC requires external antenna selection and integration, whereas BISMS02BI-NA includes integrated chip antenna. PCB layout modification for antenna matching network is required.
• BT730-SC delivers enhanced performance specifications: 2.1Mbps data rate (versus 300kbps), 18dBm output power (versus 6dBm), and -87dBm sensitivity (versus -84dBm).
• Supply voltage design must operate within 3.3V to 5V range to accommodate BT730-SC specifications.

Frequently Asked Questions (FAQ)

Q: Can BT730-SC directly replace BISMS02BI-NA without PCB modifications?

A: BT730-SC requires external antenna integration. BISMS02BI-NA includes integrated chip antenna. PCB layout modifications are necessary to accommodate antenna matching network and U.FL connector placement for BT730-SC.

Q: Are the UART serial interfaces electrically compatible?

A: Both modules implement UART serial interface. Electrical compatibility is confirmed at the protocol level. Verify baud rate, data format, and handshake signal requirements in application firmware.

Q: What is the voltage supply compatibility window?

A: BISMS02BI-NA operates 3.3V to 7V; BT730-SC operates 3.3V to 5V. Substitution requires system design operating within the overlapping range of 3.3V to 5V.

Q: Does BT730-SC provide backward compatibility with existing firmware?

A: Both modules implement Bluetooth v2.0, Class 1 protocol and UART interface. Firmware compatibility depends on application-specific command sets and timing requirements. Refer to respective module datasheets for detailed command protocol specifications.

Q: What are the antenna connector specifications?

A: Both modules utilize U.FL connectors. BISMS02BI-NA includes integrated chip antenna; BT730-SC requires external antenna selection. Antenna impedance matching (50 ohms) and frequency response (2.4GHz ISM band) must be verified for BT730-SC implementation.

Q: Is RoHS compliance required for substitution?

A: BT730-SC carries ROHS3 Compliance certification. BISMS02BI-NA RoHS status is not specified in provided parameters. Verify RoHS requirements against application regulatory specifications.

Q: What is the inventory status for substitution planning?

A: BISMS02BI-NA: 979 Pcs (Obsolete status). BT730-SC: 1253 Pcs (Active status). BT730-SC provides sustained supply availability for ongoing production requirements.
