Equivalent & Substitute Parts for BC6032S

Part Overview

The BC6032S is a fuse block cartridge designed for 600V, 30A applications with 2-circuit configuration and chassis mount orientation. Manufactured by Eaton - Bussmann Electrical Division, this component is classified as obsolete. Due to its obsolete status, identifying equivalent and substitute parts is essential for system maintenance, repair, and component replacement in existing installations.

Substiute Parts

BC6032S

Eaton - Bussmann Electrical DivisionIn Stock: 927BC6032S Datasheet

Current PartRFQ

BCM603-2S

Eaton - Bussmann Electrical DivisionIn Stock: 777BCM603-2S Datasheet

DirectRFQ

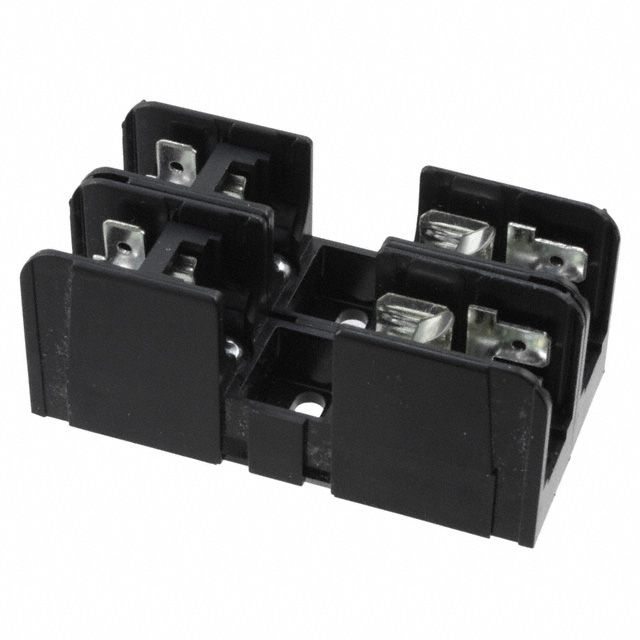

L60030C2SQ

Littelfuse Inc.In Stock: 1993L60030C2SQ Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the BC6032S is determined by strict alignment of electrical and mechanical parameters. The following criteria establish valid substitutes:

Critical Parameters for Substitution:

• Current Rating: 30 A (exact match required)
• Voltage Rating: 600V (exact match required)
• Number of Circuits: 2 (exact match required)
• Fuse Type: Cartridge (exact match required)
• Fuse Size: 0.394" Dia x 1.496" L / 10mm x 38mm (exact match required)
• Mounting Type: Chassis Mount (exact match required)
• Termination Style: Screw Terminal (compatible configuration)

Two substitute parts meet these criteria:

1. BCM603-2S (Eaton - Bussmann Electrical Division) - Direct manufacturer alternative with identical electrical specifications and active product status.

2. L60030C2SQ (Littelfuse Inc.) - Cross-manufacturer equivalent with matching electrical and mechanical parameters, active product status, and enhanced termination flexibility.

Parameter Comparison

Engineering Selection Recommendations

BCM603-2S Selection Criteria:

• Maintains direct manufacturer continuity with Eaton - Bussmann Electrical Division
• Active product status ensures ongoing availability and support
• RoHS Compliant certification meets modern environmental standards
• Recommended for applications requiring manufacturer consistency and established supply chain relationships

L60030C2SQ Selection Criteria:

• Cross-manufacturer equivalent with full electrical and mechanical parameter alignment
• Active product status with higher inventory availability (1972 pcs vs. 721 pcs)
• ROHS3 Compliant certification exceeds baseline RoHS requirements
• REACH Unaffected status provides additional regulatory clarity
• Enhanced termination flexibility with Quick Connect option alongside Screw Terminal
• Suitable for applications where component sourcing flexibility and regulatory compliance are priorities

Both substitutes are classified as active products, ensuring long-term availability compared to the obsolete BC6032S.

Frequently Asked Questions (FAQ)

Q: Can L60030C2SQ be used as a direct replacement for BC6032S? A: Yes. The L60030C2SQ matches all critical electrical parameters (30A, 600V, 2-circuit) and mechanical specifications (10mm x 38mm cartridge, chassis mount, screw terminal). The copper alloy contact material is functionally equivalent to bronze for this application class.

Q: What is the difference between BCM603-2S and L60030C2SQ? A: BCM603-2S maintains manufacturer continuity with Eaton - Bussmann. L60030C2SQ is a Littelfuse equivalent with identical electrical specifications, higher inventory availability, and additional Quick Connect termination option. Both are active products with current compliance certifications.

Q: Does the Quick Connect termination option on L60030C2SQ affect compatibility? A: No. The L60030C2SQ provides both Screw Terminal and Quick Connect termination styles, maintaining full compatibility with BC6032S screw terminal installations while offering additional connection flexibility.

Q: Are there packaging differences between these substitutes? A: Yes. BC6032S packaging is listed as dash (unspecified). BCM603-2S is supplied in Bulk packaging. L60030C2SQ is supplied in Box packaging. Packaging does not affect electrical or mechanical compatibility.

Q: Why is BC6032S classified as obsolete? A: Obsolete status indicates the part is no longer manufactured by Eaton - Bussmann. Both substitute parts (BCM603-2S and L60030C2SQ) are active products, ensuring continued availability for replacement and new installations.

Q: Are there compliance differences between the substitutes? A: BCM603-2S is RoHS Compliant. L60030C2SQ is ROHS3 Compliant and REACH Unaffected. Both meet current environmental and regulatory standards. ROHS3 represents an enhanced compliance level. All three parts share EAR99 ECCN and 8538.90.8180 HTSUS classification.
