BBS-1 Equivalent & Substitute Parts Reference

Part Overview

The BBS-1 is a 1A 600 VAC fast-blow cartridge fuse manufactured by Eaton - Bussmann Electrical Division. This component is designed for electrical and industrial applications requiring overcurrent protection in circuits rated up to 600 VAC. The part is currently active in production with 797 units in stock. Substitute parts may be required due to supply chain constraints, regional availability, or specific application requirements while maintaining equivalent electrical and mechanical performance.

Substiute Parts

BBS-1

Eaton - Bussmann Electrical DivisionIn Stock: 837BBS-1 Datasheet

Current PartRFQ

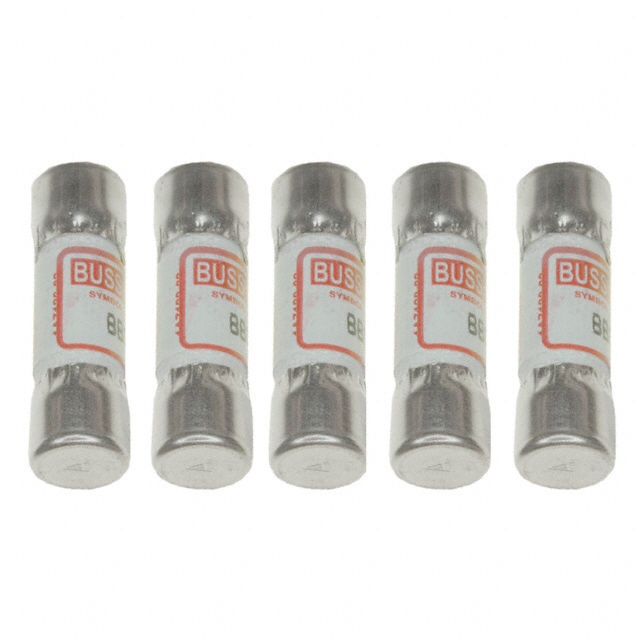

871207

Fluke ElectronicsIn Stock: 905871207 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the BBS-1 is determined by strict equivalence across the following critical parameters:

• Current Rating: 1A (exact match required)
• Voltage Rating: 600 VAC (exact match required)
• Fuse Type: Cartridge (exact match required)
• Response Time: Fast Blow (exact match required)
• Mounting Type: Requires Holder (exact match required)
• Package / Case: Cartridge, Non-Standard (exact match required)

The substitute part 871207 (Fluke Electronics) meets all critical electrical and mechanical parameters. Both parts are rated for identical current and voltage specifications, employ the same cartridge fuse type with fast-blow response characteristics, and share identical physical dimensions and mounting requirements.

Parameter Comparison

Engineering Selection Recommendations

The BBS-1 is the primary component choice, with active product status and full compliance certifications (CE, CSA, UL). The part carries RoHS Compliant status and maintains adequate inventory levels.

The 871207 substitute part is functionally equivalent across all critical electrical and mechanical parameters. However, the following differences should be noted for engineering selection:

• The 871207 is RoHS non-compliant, which may restrict use in applications requiring RoHS-compliant components
• Approval agency certifications are not specified for the 871207
• The 871207 carries Moisture Sensitivity Level 1 (Unlimited), whereas the BBS-1 lists MSL as Not Applicable

Selection between these parts should be based on regulatory requirements of the end application and compliance mandates of the target market.

Frequently Asked Questions (FAQ)

Q: Can the 871207 be used as a direct replacement for the BBS-1?

A: The 871207 is electrically and mechanically equivalent to the BBS-1 across all critical parameters: 1A current rating, 600 VAC voltage rating, fast-blow response, cartridge fuse type, and identical physical dimensions. Direct substitution is possible from a functional standpoint. However, compliance requirements must be evaluated, as the BBS-1 is RoHS Compliant with CE, CSA, and UL certifications, while the 871207 is RoHS non-compliant with unspecified certifications.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution eligibility is determined by exact equivalence in: current rating (1A), AC voltage rating (600 VAC), fuse type (Cartridge), response time (Fast Blow), mounting type (Requires Holder), and physical package dimensions (0.410" Dia x 1.380" L). Any deviation in these parameters disqualifies a part as a substitute.

Q: Are there dimensional compatibility concerns between the BBS-1 and 871207?

A: No dimensional compatibility concerns exist. Both parts share identical cartridge fuse specifications and physical dimensions (0.410" Dia x 1.380" L / 10.41mm x 35.05mm). Both require the same holder type for installation.

Q: What is the significance of the RoHS compliance difference?

A: RoHS compliance is a regulatory requirement in many markets, particularly the European Union and regions with equivalent environmental standards. The BBS-1 is RoHS Compliant, while the 871207 is RoHS non-compliant. Applications subject to RoHS regulations must use the BBS-1 or equivalent RoHS-compliant alternatives.

Q: Does the Moisture Sensitivity Level difference affect substitution?

A: The MSL difference reflects storage and handling requirements. The BBS-1 lists MSL as Not Applicable, indicating no special moisture control is required during storage. The 871207 carries MSL 1 (Unlimited), which also indicates no moisture sensitivity restrictions. This difference does not affect functional substitution.
