BAT54LP-TP Equivalent & Substitute Parts

Part Overview

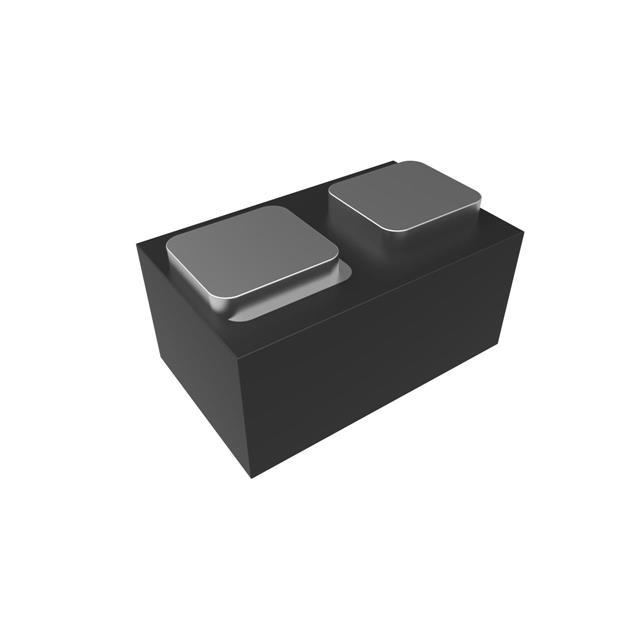

The BAT54LP-TP is a Schottky diode rated for 30 V DC reverse voltage with 200 mA average rectified current, manufactured by Micro Commercial Co. This component is classified as obsolete, necessitating identification of active equivalent parts for ongoing design requirements and procurement needs. The BAT54LP-TP is packaged in SOD-882 surface mount configuration and complies with RoHS3 standards.

Substiute Parts

BAT54LP-TP

Micro Commercial CoIn Stock: 1159BAT54LP-TP Datasheet

Current PartRFQ

BAT54L2-TP

Micro Commercial CoIn Stock: 15538BAT54L2-TP Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the BAT54LP-TP is determined by electrical parameter equivalence across the following criteria:

Electrical Parameters (Must Match):

• Voltage - DC Reverse (Vr) (Max): 30 V
• Current - Average Rectified (Io): 200 mA
• Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
• Reverse Recovery Time (trr): 5 ns
• Current - Reverse Leakage @ Vr: 2 µA @ 25 V
• Capacitance @ Vr, F: 10 pF @ 1 V, 1 MHz
• Operating Temperature - Junction: 125°C

Technology & Compliance (Must Match):

• Technology: Schottky
• RoHS Status: RoHS3 Compliant
• Moisture Sensitivity Level (MSL): 1 (Unlimited)

Mechanical Consideration:

• Mounting Type: Surface Mount (package form factor may differ while maintaining functional equivalence)

The BAT54L2-TP qualifies as a direct electrical substitute, sharing identical electrical specifications and compliance certifications. The primary distinction is the package configuration: BAT54L2-TP uses DFN1006-2L (0402 Metric) versus BAT54LP-TP's SOD-882 package. Both are surface mount technologies suitable for automated assembly.

Parameter Comparison

Engineering Selection Recommendations

The BAT54L2-TP is the direct electrical equivalent for the obsolete BAT54LP-TP. Both components share identical electrical specifications, reverse recovery characteristics, and compliance certifications. The BAT54L2-TP maintains active product status with higher inventory availability (15,460 pcs versus 1,092 pcs), supporting long-term supply chain continuity.

Selection of BAT54L2-TP requires PCB layout modification to accommodate the DFN1006-2L package footprint in place of the SOD-882 footprint. Both packages are surface mount technologies with equivalent thermal and electrical performance characteristics for the specified application parameters.

RoHS3 compliance and MSL 1 (Unlimited) moisture sensitivity rating are maintained across both components, ensuring regulatory and manufacturing process compatibility.

Frequently Asked Questions (FAQ)

Q: Can BAT54L2-TP directly replace BAT54LP-TP without circuit modification?

A: Electrical substitution is direct. The components share identical voltage ratings, current ratings, forward voltage characteristics, and reverse recovery times. PCB layout modification is required due to different package geometries (DFN1006-2L versus SOD-882).

Q: What is the primary difference between BAT54LP-TP and BAT54L2-TP?

A: The primary difference is package configuration. BAT54LP-TP uses SOD-882 packaging, while BAT54L2-TP uses DFN1006-2L (0402 Metric) packaging. All electrical parameters, performance characteristics, and compliance certifications are identical.

Q: Are there thermal performance differences between the two packages?

A: Both packages are surface mount configurations with identical operating temperature ratings (125°C junction temperature). Package-specific thermal characteristics depend on PCB layout and thermal management implementation.

Q: Does BAT54L2-TP maintain RoHS3 compliance?

A: Yes. BAT54L2-TP is RoHS3 compliant with MSL 1 (Unlimited) moisture sensitivity rating, matching the compliance profile of BAT54LP-TP.

Q: Why is BAT54LP-TP classified as obsolete?

A: Product status reflects manufacturer lifecycle decisions. BAT54L2-TP represents the active equivalent within the same base product family (BAT54), providing continued access to equivalent Schottky diode functionality.

Q: What are the key electrical parameters that define substitution compatibility?

A: Substitution compatibility is determined by: 30 V DC reverse voltage rating, 200 mA average rectified current, 1 V forward voltage at 100 mA, 5 ns reverse recovery time, 2 µA reverse leakage current at 25 V, and 10 pF capacitance at 1 V, 1 MHz.
