BAS30LSYL Equivalent & Substitute Parts

Part Overview

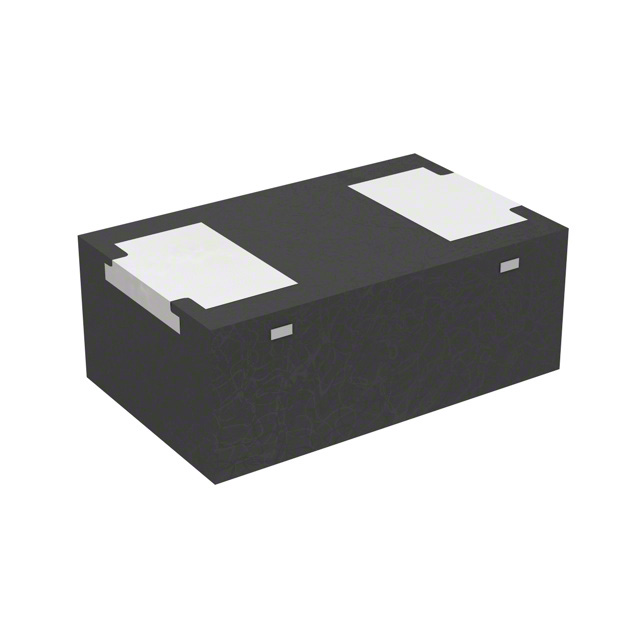

The BAS30LSYL is a general-purpose rectifier diode manufactured by Nexperia USA Inc., rated for 300 V DC reverse voltage and 250 mA average rectified current. This component is packaged in a surface-mount SOD-882 (DFN1006BD-2) configuration and features fast recovery characteristics with a reverse recovery time of 50 ns. The BAS30LSYL is classified as obsolete, which necessitates identification of active equivalent parts for new designs and ongoing production requirements. Substitute parts must maintain identical electrical performance and mechanical compatibility while offering current availability and active product status.

Substiute Parts

BAS30LSYL

Nexperia USA Inc.In Stock: 1135BAS30LSYL Datasheet

Current PartRFQ

BAS30LS-QYL

Nexperia USA Inc.In Stock: 5599BAS30LS-QYL Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the BAS30LSYL is determined by strict equivalence across the following electrical and mechanical parameters:

Electrical Parameters (Must Match):

• Voltage - DC Reverse (Vr) (Max): 300 V
• Current - Average Rectified (Io): 250 mA
• Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 200 mA
• Reverse Recovery Time (trr): 50 ns
• Current - Reverse Leakage @ Vr: 150 nA @ 250 V
• Capacitance @ Vr, F: 2 pF @ 0V, 1MHz

Mechanical Parameters (Must Match):

• Package / Case: SOD-882
• Supplier Device Package: DFN1006BD-2
• Mounting Type: Surface Mount

Compliance Parameters (Must Match):

• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• REACH Status: REACH Unaffected

The BAS30LS-QYL meets all substitution criteria and is classified as an active product with current manufacturer availability.

Parameter Comparison

Engineering Selection Recommendations

The BAS30LS-QYL is the direct electrical and mechanical equivalent of the BAS30LSYL. All critical electrical parameters, including reverse voltage rating, forward voltage drop, reverse recovery time, and leakage current, are identical. Both components share the same SOD-882 package and DFN1006BD-2 supplier device package designation, ensuring pin-for-pin compatibility and identical PCB footprints.

The primary distinction between these parts is product status: the BAS30LSYL is obsolete, while the BAS30LS-QYL is active with current manufacturer availability. The BAS30LS-QYL is supplied in Tape & Reel (TR) packaging, which is standard for production environments, whereas the BAS30LSYL was available in bulk packaging.

The BAS30LS-QYL carries Automotive grade qualification and AEC-Q101 certification, indicating compliance with automotive industry reliability standards. Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying environmental and regulatory requirements.

For applications requiring the BAS30LSYL, the BAS30LS-QYL provides full functional and mechanical substitution with the added benefit of active product status and automotive-grade qualification.

Frequently Asked Questions (FAQ)

Q: Can the BAS30LS-QYL be used as a direct replacement for the BAS30LSYL in existing designs?

A: Yes. The BAS30LS-QYL is electrically and mechanically equivalent to the BAS30LSYL. All electrical parameters, including voltage ratings, current ratings, forward voltage drop, and reverse recovery time, are identical. Both components use the SOD-882 package with DFN1006BD-2 supplier device package designation, ensuring identical PCB footprints and pin compatibility.

Q: What is the difference between the BAS30LSYL and BAS30LS-QYL packaging?

A: The BAS30LSYL was supplied in bulk packaging, while the BAS30LS-QYL is supplied in Tape & Reel (TR) packaging. Tape & Reel packaging is standard for automated assembly processes in production environments. Both parts are surface-mount components with identical physical dimensions and mounting requirements.

Q: Does the BAS30LS-QYL have any additional certifications compared to the BAS30LSYL?

A: The BAS30LS-QYL carries Automotive grade classification and AEC-Q101 qualification, indicating compliance with automotive industry reliability and qualification standards. The BAS30LSYL does not list these certifications. Both parts maintain ROHS3 compliance and REACH unaffected status.

Q: Are there any electrical performance differences between these parts?

A: No. The BAS30LS-QYL and BAS30LSYL have identical electrical specifications. Both are rated for 300 V DC reverse voltage, 250 mA average rectified current, 1.25 V maximum forward voltage at 200 mA, 50 ns reverse recovery time, and 150 nA reverse leakage current at 250 V. Capacitance, operating temperature range, and all other electrical parameters are identical.

Q: Why is the BAS30LSYL classified as obsolete?

A: The BAS30LSYL is listed as obsolete by the manufacturer. The BAS30LS-QYL is the active equivalent part and is recommended for all new designs and ongoing production requirements.

Q: Are both parts compliant with environmental and regulatory standards?

A: Yes. Both the BAS30LSYL and BAS30LS-QYL are ROHS3 compliant and REACH unaffected. Both have Moisture Sensitivity Level (MSL) rating of 1 (Unlimited), indicating no moisture sensitivity restrictions during storage and handling.
