BA-2010 Coaxial Connector Adapter - Equivalent & Substitute Parts

Part Overview

The BA-2010 is an F-type coaxial connector adapter manufactured by CUI Devices, designed to connect two F plug male pin connectors in a straight, free-hanging configuration. This adapter is classified as obsolete, making identification of functionally equivalent substitute parts essential for ongoing system maintenance and component procurement.

The BA-2010 serves applications requiring direct F-to-F male pin adapter connections in RF coaxial systems. Due to its obsolete status, sourcing alternatives from active product lines ensures long-term availability and supply chain continuity.

Substiute Parts

BA-2010

CUI DevicesIn Stock: 906BA-2010 Datasheet

Current PartRFQ

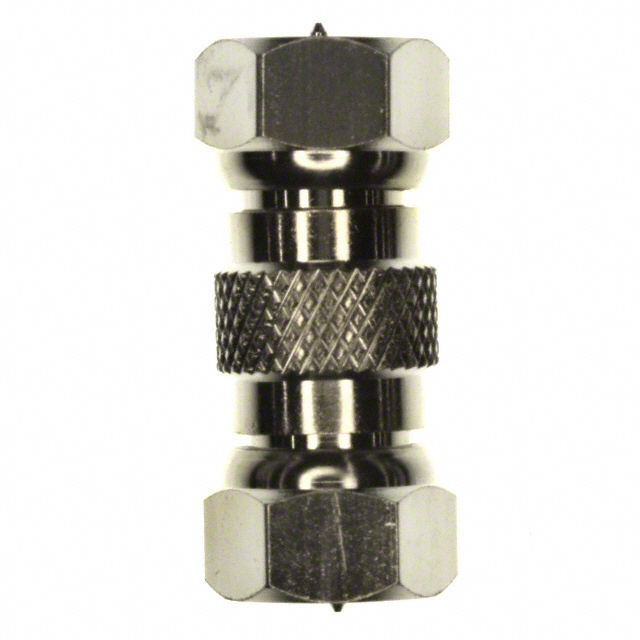

222156

Amphenol RFIn Stock: 1155222156 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the BA-2010 is determined by strict equivalence across the following critical parameters:

• Adapter Configuration: Plug-to-plug topology with identical connector series (F to F)
• Gender Configuration: Male-to-male center pin orientation
• Connector Ends: Both ends must be F plug male pin connectors
• Mounting Style: Straight orientation, free-hanging installation
• Fastening Mechanism: Threaded fastening on both ends

The substitute part 222156 (Amphenol RF) satisfies all mandatory substitution criteria. This part maintains identical adapter topology, connector gender configuration, and mounting characteristics as the BA-2010, enabling direct functional replacement in F-type coaxial systems.

Parameter Comparison

Engineering Selection Recommendations

The 222156 (Amphenol RF) is the direct functional equivalent for the obsolete BA-2010. Selection is based on the following engineering criteria:

Product Status: The 222156 maintains active product status, ensuring ongoing availability and manufacturer support, whereas the BA-2010 is obsolete and subject to supply discontinuation.

Compliance Certifications: Both parts meet RoHS requirements. The 222156 carries ROHS3 Compliant status, representing current regulatory compliance standards. Both parts maintain MSL 1 rating, indicating unlimited moisture sensitivity protection.

Regulatory Alignment: Both parts are classified under ECCN EAR99 and HTSUS 8536.69.4010, maintaining consistent export and tariff classification.

Functional Equivalence: The 222156 provides specified impedance (75 Ohms), operating temperature range (-40°C ~ 85°C), and maximum frequency (2 GHz), offering defined performance parameters for system design verification.

Frequently Asked Questions (FAQ)

Q: Can the 222156 directly replace the BA-2010 in existing installations?

A: Yes. Both adapters share identical connector topology (F plug male-to-male), mounting style (straight, free-hanging), and fastening mechanism (threaded). The 222156 is a direct functional substitute.

Q: What is the significance of the 75 Ohm impedance specification on the 222156?

A: The 222156 specifies 75 Ohm impedance, which is the standard impedance for F-type connectors in video and broadband applications. The BA-2010 does not specify impedance in available documentation. The 222156's impedance specification provides explicit performance definition for system design.

Q: Are there packaging differences between these parts?

A: The BA-2010 packaging is not specified in available data. The 222156 is supplied in bag packaging. Confirm packaging requirements with your procurement specifications.

Q: Do both parts meet current regulatory requirements?

A: Yes. Both parts are RoHS compliant and MSL 1 rated. The 222156 carries ROHS3 Compliant designation, representing current regulatory standards. Both maintain REACH Compliance status appropriate to their respective regulatory jurisdictions.

Q: What is the maximum operating frequency for these adapters?

A: The 222156 specifies a maximum frequency of 2 GHz. The BA-2010 does not provide frequency specification. For applications requiring frequency performance verification, the 222156's specification provides defined operating parameters.
