B5743-106-M-L-3 Equivalent & Substitute Parts

Part Overview

The B5743-106-M-L-3 is a rectangular connector header manufactured by Harwin Inc., part of the Datamate L-Tek series. This through-hole, right-angle connector features 6 positions at 0.079" (2.00mm) pitch with shrouded 4-wall design and solder termination. The part is currently listed as obsolete, necessitating identification of active equivalent components to maintain design continuity and ensure ongoing component availability for production and repair applications.

Substiute Parts

B5743-106-M-L-3

Harwin Inc.In Stock: 879B5743-106-M-L-3 Datasheet

Current PartRFQ

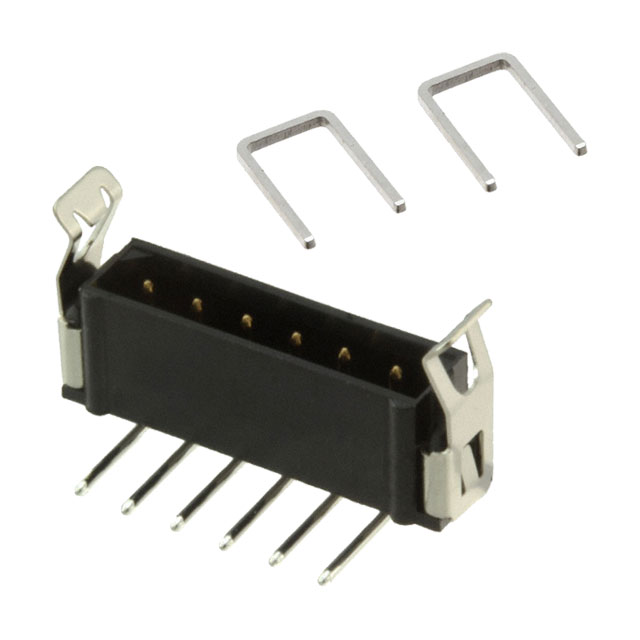

M80-8760622

Harwin Inc.In Stock: 1328M80-8760622 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the B5743-106-M-L-3 is determined by the following critical parameters:

• Connector type (Header), contact type (Male Pin), and pitch (0.079" / 2.00mm)
• Number of positions (6) and row configuration (1 row)
• Mounting style (Through Hole, Right Angle) and shrouding design (Shrouded - 4 Wall)
• Termination method (Solder) and fastening type (Latch Lock)
• Electrical ratings: Current (2.2A) and Voltage (120V)
• Operating temperature range (-55°C ~ 125°C)
• Material specifications: Contact material (Phosphor Bronze), insulation material (PBT, Glass Filled), and flammability rating (UL94 V-0)

The M80-8760622 qualifies as a direct substitute based on matching all critical parameters within the allowed tolerance ranges for this connector category.

Parameter Comparison

Engineering Selection Recommendations

The M80-8760622 is the manufacturer-recommended substitute for the obsolete B5743-106-M-L-3. Both components are manufactured by Harwin Inc. within the same Datamate L-Tek series and maintain identical electrical, mechanical, and environmental specifications. The M80-8760622 is currently in active production status with confirmed inventory availability (1318 pcs), ensuring reliable sourcing for new designs and production requirements.

Both parts maintain equivalent compliance certifications: UL94 V-0 flammability rating, REACH Unaffected status, and identical RoHS non-compliant classification. The substitution presents no compliance or regulatory barriers for applications previously designed with the B5743-106-M-L-3.

Frequently Asked Questions (FAQ)

Q: Can M80-8760622 be used as a direct replacement for B5743-106-M-L-3 in existing designs?

A: Yes. Both connectors share identical pitch (0.079" / 2.00mm), position count (6), mounting configuration (through-hole right-angle), and electrical ratings (2.2A / 120V). The connectors are mechanically and electrically interchangeable.

Q: What is the primary difference between these two part numbers?

A: The B5743-106-M-L-3 is obsolete, while M80-8760622 is an active production part from the same manufacturer and series. Minor variations exist in insulation height (0.142" vs 0.156") and contact finish thickness specifications, which remain within acceptable tolerances for this connector category.

Q: Are there packaging differences between the two parts?

A: The M80-8760622 is supplied in tube packaging, whereas packaging information for the B5743-106-M-L-3 was not specified. This difference affects handling and storage but does not impact functional compatibility.

Q: Do both parts meet the same compliance and certification standards?

A: Yes. Both components carry identical certifications: UL94 V-0 flammability rating, REACH Unaffected status, and RoHS non-compliant classification. Operating temperature range (-55°C ~ 125°C) and moisture sensitivity level (MSL 1 - Unlimited) are identical.

Q: Is the M80-8760622 available in sufficient quantity for production use?

A: Yes. Current inventory for M80-8760622 is 1318 pcs new original in stock, providing adequate supply for production and repair applications.
