B412F-2 Bridge Rectifier Equivalent & Substitute Parts

Part Overview

The B412F-2 is a single-phase bridge rectifier module manufactured by Sensata Technologies, rated for 1.2 kV peak reverse voltage and 12 A average rectified current. This component features a QC terminal mounting configuration and standard diode technology for AC-to-DC conversion applications.

The B412F-2 has reached obsolete product status. Identifying qualified substitute components ensures design continuity and supply chain reliability for applications requiring single-phase bridge rectification at comparable electrical ratings.

Substiute Parts

B412F-2

Sensata TechnologiesIn Stock: 1200B412F-2 Datasheet

Current PartRFQ

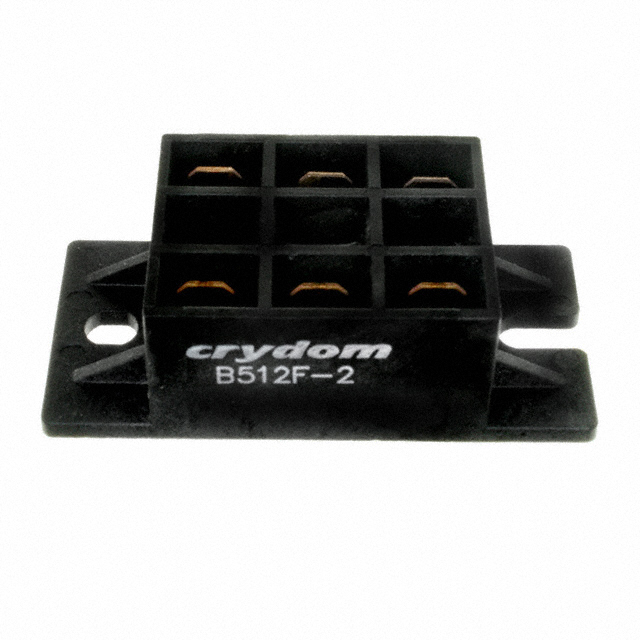

B512F-2

Sensata-CrydomIn Stock: 20324B512F-2 Datasheet

DirectRFQ

B512F-2

Sensata-CrydomIn Stock: 20324B512F-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The B512F-2 is identified as a substitute for the B412F-2 based on the following substitution criteria:

Structural Compatibility: Both components are single-phase bridge modules with QC terminal mounting and module packaging, enabling direct mechanical and electrical interface compatibility.

Functional Overlap: The B512F-2 provides bridge rectification capability through a hybrid SCR/diode configuration (2 SCRs, 2 Diodes), which maintains the single-phase bridge topology required for the original application.

Voltage Rating Relationship: The B512F-2 operates at 600 V off-state voltage, which exceeds the B412F-2 peak reverse voltage of 1.2 kV, providing adequate voltage margin for substitution in applications not requiring the full 1.2 kV rating.

Current Handling: The B512F-2 supports 25 A nominal operation with 250 A non-repetitive surge capability at 60 Hz, exceeding the B412F-2 average rectified current of 12 A.

Active Product Status: The B512F-2 maintains active product status with current manufacturing and inventory availability, addressing the obsolescence of the B412F-2.

Parameter Comparison

Engineering Selection Recommendations

Substitution Feasibility: The B512F-2 qualifies as a functional substitute for the B412F-2 in applications where the 600 V voltage rating provides adequate margin above the circuit operating voltage. The higher current capacity of the B512F-2 (25 A nominal) accommodates the B412F-2 requirement of 12 A average rectified current with design margin.

Compliance Considerations: The B512F-2 maintains active product status with ROHS3 compliance and current manufacturing support, eliminating supply chain risk associated with the obsolete B412F-2. The B512F-2 is REACH Affected, requiring verification of regulatory compliance requirements in the end application.

Mounting Configuration: The B512F-2 specifies Chassis Mount configuration compared to the B412F-2 QC Terminal mounting. Physical integration verification is required to confirm mechanical compatibility within the target assembly.

Technology Transition: The B512F-2 employs SCR/diode hybrid technology versus the standard diode technology of the B412F-2. This transition maintains rectification function while introducing gate-triggerable control capability through the SCR elements, which may be disabled or unused in direct substitution scenarios.

Frequently Asked Questions (FAQ)

Q: Can the B512F-2 directly replace the B412F-2 in existing designs?

A: The B512F-2 provides functional bridge rectification capability with compatible module packaging and QC terminal interface. Verification of mounting configuration (Chassis Mount vs. QC Terminal) and voltage rating adequacy (600 V vs. 1.2 kV) is required for each specific application before implementation.

Q: What is the voltage rating relationship between these components?

A: The B412F-2 specifies 1.2 kV peak reverse voltage. The B512F-2 operates at 600 V off-state voltage. Substitution is valid only in applications where the circuit operating voltage does not exceed 600 V, providing adequate safety margin below the B512F-2 rating.

Q: Are there current capacity differences between these parts?

A: The B412F-2 is rated for 12 A average rectified current. The B512F-2 supports 25 A nominal operation, providing 2.08× current capacity margin. This excess capacity does not prevent substitution and may improve thermal performance in the target application.

Q: What compliance differences exist between the B412F-2 and B512F-2?

A: The B512F-2 is ROHS3 compliant and REACH Affected, while the B412F-2 is REACH Unaffected. Applications subject to ROHS or REACH regulations must verify that the B512F-2 compliance status aligns with end-product requirements.

Q: Does the SCR/diode configuration of the B512F-2 affect substitution compatibility?

A: The B512F-2 employs 2 SCRs and 2 Diodes in bridge configuration, compared to the standard diode bridge of the B412F-2. Both configurations provide single-phase rectification. The SCR gate terminals in the B512F-2 may remain unconnected in direct substitution applications, allowing standard rectifier operation.

Q: What inventory status supports component selection?

A: The B412F-2 is obsolete with 1139 pieces in stock. The B512F-2 maintains active product status with 20299 pieces in current inventory, ensuring long-term supply availability for production and field replacement requirements.
