Switchcraft B3FB Equivalent & Substitute Parts

Part Overview

The Switchcraft B3FB is a 3-position circular connector plug with female sockets, designed for audio and instrumentation applications. It features solder cup termination, stainless steel construction, and a keyed XLR shell size. The B3FB is classified as obsolete, making identification of active equivalent parts essential for procurement and system continuity.

Substiute Parts

B3FB

Switchcraft Inc.In Stock: 1028B3FB Datasheet

Current PartRFQ

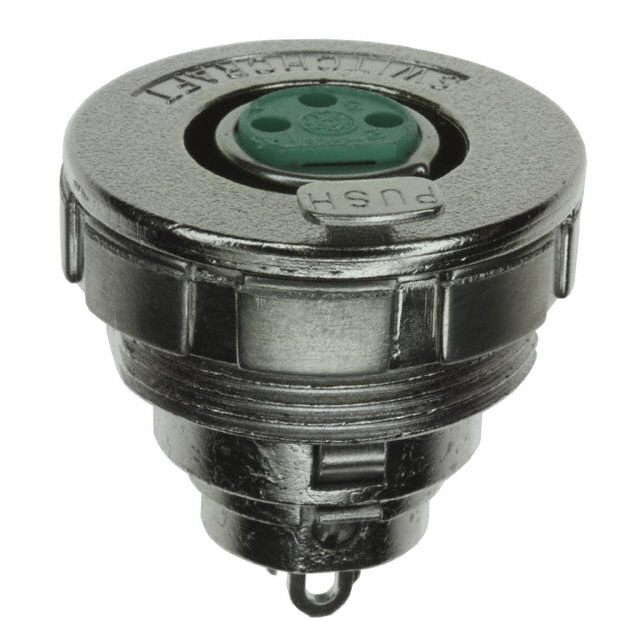

B3F

Switchcraft Inc.In Stock: 844B3F Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the B3FB is determined by strict equivalence across the following critical parameters:

• Connector type: Plug with female sockets
• Number of positions: 3
• Shell size: XLR
• Termination method: Solder cup
• Current and voltage ratings: 15A at 125VAC
• Contact material and finish: Phosphor bronze with silver mating finish
• Shell material: Stainless steel
• Fastening mechanism: Latch lock
• Mounting configuration: Panel mount with bulkhead rear side nut
• Orientation: Keyed

The B3F qualifies as a direct substitute based on identical electrical and mechanical specifications. Differences in product status, packaging, color, and RoHS compliance do not affect functional interchangeability in the specified applications.

Parameter Comparison

Engineering Selection Recommendations

The B3F is the active equivalent for the obsolete B3FB. Both parts maintain identical electrical and mechanical specifications, ensuring direct functional interchangeability in audio and instrumentation applications requiring 3-position XLR female plug connectors with solder cup termination.

The B3F offers the advantage of active product status, ensuring ongoing availability and supply chain continuity. Additionally, the B3F achieves ROHS3 compliance, whereas the B3FB is RoHS non-compliant. For applications subject to RoHS regulatory requirements, the B3F is the appropriate selection.

The B3F is supplied in bulk packaging, compared to the B3FB's unspecified packaging. Color differs between the two parts (silver versus black), which may be relevant for applications with specific aesthetic or identification requirements but does not affect electrical or mechanical performance.

Frequently Asked Questions (FAQ)

Q: Can the B3F directly replace the B3FB in existing designs?

A: Yes. The B3F and B3FB are electrically and mechanically identical across all critical parameters: 3-position XLR female plug configuration, 15A at 125VAC rating, solder cup termination, stainless steel shell, phosphor bronze contacts with silver finish, and keyed latch lock fastening. Direct substitution is supported without design modification.

Q: What is the significance of the B3FB being obsolete?

A: Obsolete status indicates the B3FB is no longer manufactured or actively supported by Switchcraft Inc. The B3F, as the active equivalent, is the recommended procurement choice for new designs and replacement inventory to ensure long-term supply availability.

Q: Does the color difference between B3FB (black) and B3F (silver) affect compatibility?

A: Color is a cosmetic attribute and does not affect electrical or mechanical performance. Selection between black and silver finishes depends on application-specific requirements such as panel aesthetics or identification standards. Functional interchangeability remains unchanged.

Q: What is the impact of RoHS compliance differences?

A: The B3F is ROHS3 compliant, while the B3FB is RoHS non-compliant. For applications or markets subject to RoHS directives, the B3F is the required selection. For applications without RoHS regulatory constraints, both parts are functionally equivalent.

Q: Are there packaging considerations when switching from B3FB to B3F?

A: The B3F is supplied in bulk packaging. If specific packaging requirements exist (such as tape-and-reel or individual packaging), packaging format should be confirmed with the supplier. Bulk packaging is standard for solder cup connectors and is suitable for manual assembly and prototyping applications.

Q: What electrical parameters confirm substitution eligibility?

A: Both the B3FB and B3F maintain identical current and voltage ratings of 15A at 125VAC, identical contact material (phosphor bronze) with silver mating finish, and identical termination method (solder cup). These parameters are the primary determinants of electrical interchangeability.
