B20J2K0 Equivalent & Substitute Parts

Part Overview

The B20J2K0 is a 2 kOhms ±5% 20W through-hole axial wirewound resistor manufactured by Ohmite as part of the Brown Devil® 200 series. This component is designed for applications requiring high power dissipation with flame retardant coating and safety features. The part is currently active in production with 900 pieces available in stock. Substitute parts are necessary to address supply chain flexibility, compliance requirements, or inventory optimization while maintaining identical electrical and mechanical performance.

Substiute Parts

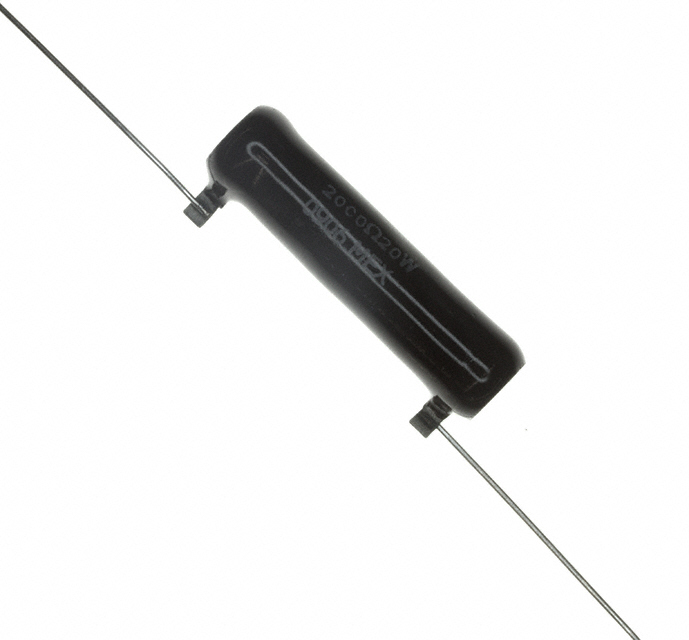

B20J2K0

OhmiteIn Stock: 991B20J2K0 Datasheet

Current PartRFQ

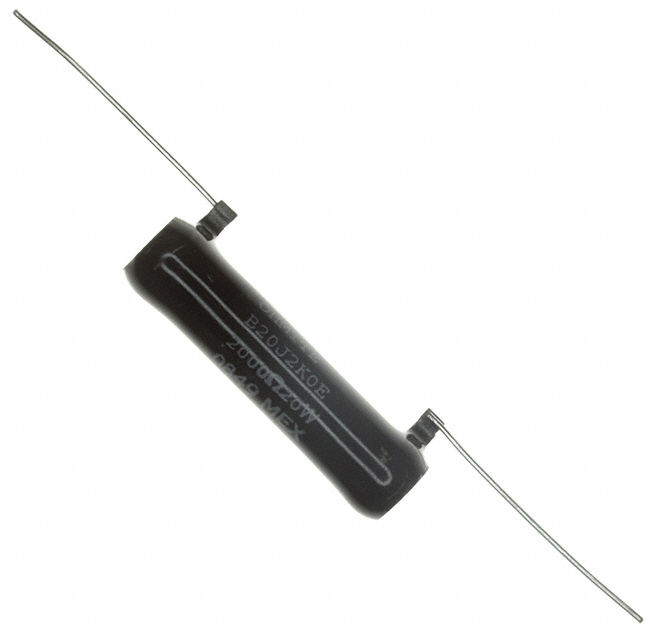

B20J2K0E

OhmiteIn Stock: 1283B20J2K0E Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the B20J2K0 is based on strict equivalence across all critical electrical and mechanical parameters. The substitute part B20J2K0E maintains identical specifications for resistance value, tolerance, power rating, composition, package configuration, temperature coefficient, and physical dimensions. Both parts are manufactured by Ohmite within the same Brown Devil® 200 series, ensuring mechanical and thermal compatibility. The substitution is valid when the following parameters match exactly:

• Resistance: 2 kOhms
• Tolerance: ±5%
• Power Rating: 20W
• Composition: Wirewound
• Package/Case: Axial
• Temperature Coefficient: ±260ppm/°C
• Physical Dimensions: 0.437" Dia x 2.000" L

Parameter Comparison

Engineering Selection Recommendations

Both B20J2K0 and B20J2K0E are active production parts from Ohmite with identical electrical and mechanical specifications. The primary distinction between these parts is regulatory compliance status. The B20J2K0 is RoHS non-compliant, while the B20J2K0E is ROHS3 compliant and REACH unaffected. Selection between these parts should be based on the regulatory requirements of the end application and target market. For applications requiring RoHS3 compliance, B20J2K0E is the appropriate selection. For applications without RoHS compliance requirements, either part is electrically and mechanically equivalent. Current inventory availability shows B20J2K0E at 1269 pieces compared to B20J2K0 at 900 pieces.

Frequently Asked Questions (FAQ)

Q: Can B20J2K0E be used as a direct replacement for B20J2K0?

A: Yes. Both parts are electrically and mechanically identical with matching resistance, tolerance, power rating, composition, package type, temperature coefficient, and physical dimensions. The only difference is RoHS compliance status.

Q: What is the difference between B20J2K0 and B20J2K0E?

A: The B20J2K0E is ROHS3 compliant and REACH unaffected, while the B20J2K0 is RoHS non-compliant. All other specifications are identical.

Q: Are these parts pin-compatible?

A: Yes. Both parts are axial wirewound resistors with 2 terminations and identical physical dimensions (0.437" Dia x 2.000" L), ensuring mechanical and electrical compatibility in any circuit design.

Q: Which part should I select for new designs?

A: Selection depends on regulatory requirements. For applications requiring RoHS3 compliance, use B20J2K0E. Both parts are suitable for applications without specific compliance mandates.

Q: What is the temperature coefficient specification?

A: Both parts have a temperature coefficient of ±260ppm/°C, ensuring stable resistance performance across the operating temperature range.

Q: Are these parts suitable for high-power applications?

A: Yes. Both parts are rated for 20W power dissipation with flame retardant coating and safety features, making them suitable for high-power circuit applications.
