B02B-WPJES-3 (LF)(SN) Equivalent & Substitute Parts

Part Overview

The B02B-WPJES-3 (LF)(SN) is a rectangular connector header manufactured by JST Sales America Inc., designed for through-hole mounting in board-to-cable/wire applications. This 2-position, 5mm pitch connector features shrouded 4-wall construction with solder termination and latch holder fastening. The part is classified as obsolete, making identification of active equivalent alternatives essential for ongoing design support and procurement continuity.

Substiute Parts

B02B-WPJES-3 (LF)(SN)

JST Sales America Inc.In Stock: 1124B02B-WPJES-3 (LF)(SN) Datasheet

Current PartRFQ

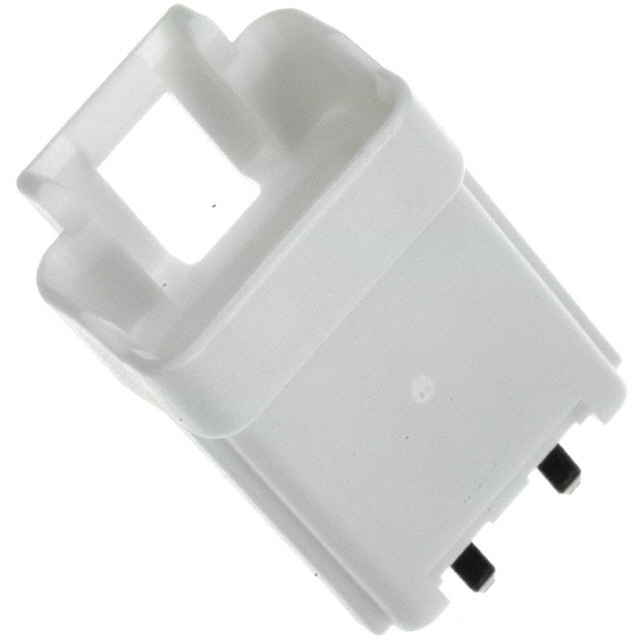

B02B-WPJSS-1

JST Sales America Inc.In Stock: 19723B02B-WPJSS-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the B02B-WPJES-3 (LF)(SN) is determined by strict equivalence across the following critical parameters:

• Connector Series & Type: WPJ series header with male pin contact type
• Electrical Specifications: 7A current rating and 300V voltage rating
• Mechanical Configuration: 2-position, 5mm pitch, through-hole mounting, shrouded 4-wall design
• Termination & Fastening: Solder termination with latch holder fastening
• Environmental Compliance: UL94 V-0 flammability rating, ROHS3 compliance, waterproof ingress protection
• Operating Range: -25°C to 85°C temperature specification

The B02B-WPJSS-1 meets all these criteria and represents the active production equivalent within the WPJ series.

Parameter Comparison

Engineering Selection Recommendations

The B02B-WPJSS-1 is the direct functional equivalent of the B02B-WPJES-3 (LF)(SN). Both parts share identical electrical ratings, mechanical dimensions, and environmental certifications. The primary distinction is product status: the B02B-WPJSS-1 is in active production, whereas the B02B-WPJES-3 (LF)(SN) is obsolete.

For new designs or ongoing procurement, the B02B-WPJSS-1 is the appropriate selection. Both parts maintain ROHS3 compliance and UL94 V-0 flammability certification. The insulation color difference (blue versus natural) is a cosmetic variation that does not affect electrical or mechanical performance.

Frequently Asked Questions (FAQ)

Q: Can the B02B-WPJSS-1 be used as a direct replacement for the B02B-WPJES-3 (LF)(SN)?

A: Yes. Both parts are WPJ series headers with identical electrical ratings (7A, 300V), mechanical configuration (2-position, 5mm pitch, through-hole, shrouded 4-wall), and environmental specifications. The B02B-WPJSS-1 is the active production equivalent.

Q: What is the difference between these two part numbers?

A: The B02B-WPJSS-1 is the current production version of the WPJ series 2-position header. The B02B-WPJES-3 (LF)(SN) is classified as obsolete. Insulation color differs (natural versus blue), but this is a cosmetic distinction without functional impact.

Q: Are there any compatibility concerns when substituting the B02B-WPJSS-1 for the B02B-WPJES-3 (LF)(SN)?

A: No compatibility concerns exist. Both parts conform to identical pitch, position count, mounting type, and electrical specifications. PCB layouts and mating connector requirements remain unchanged.

Q: What packaging is available for the B02B-WPJSS-1?

A: The B02B-WPJSS-1 is supplied in bulk packaging, with 19,627 pieces currently in stock.

Q: Are both parts RoHS compliant?

A: Yes. Both the B02B-WPJES-3 (LF)(SN) and B02B-WPJSS-1 are ROHS3 compliant with UL94 V-0 flammability rating and MSL 1 (unlimited) moisture sensitivity level.
