AYF530665 Equivalent & Substitute Parts

Part Overview

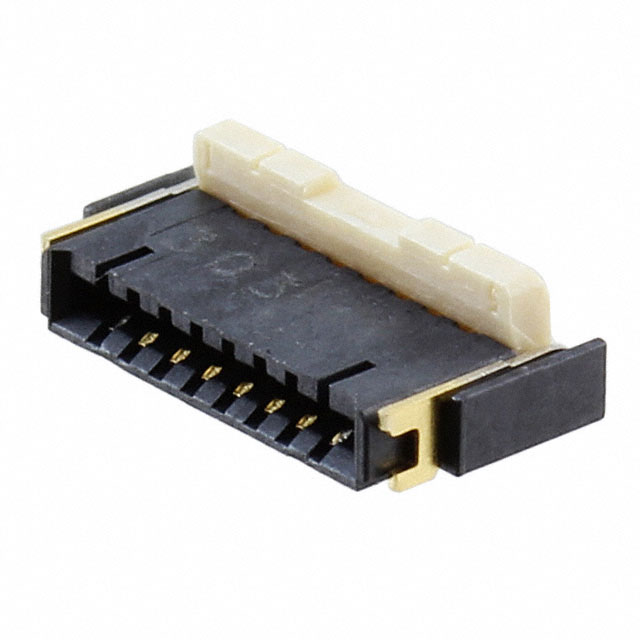

The AYF530665 is a 6-position FPC (Flat Flexible Connector) manufactured by Panasonic Electric Works, designed for surface mount, right-angle applications with 0.5mm pitch contacts. This connector features top and bottom contacts with solder termination, flip lock and backlock locking mechanisms, and is rated for 0.5A per contact at 50V. The part is currently active in production with RoHS compliance and UL94 V-0 flammability rating. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity.

Substiute Parts

AYF530665

Panasonic Electric WorksIn Stock: 850AYF530665 Datasheet

Current PartRFQ

AYF530665T

Panasonic Electric WorksIn Stock: 3113AYF530665T Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the AYF530665 is determined by strict equivalence across the following critical parameters:

• Manufacturer and Series: Panasonic Electric Works Y5BW series
• Electrical Specifications: 6 positions, 0.5mm pitch, 50V rating, 0.5A per contact
• Mechanical Configuration: Surface mount right-angle orientation, top and bottom contacts
• Termination Method: Solder termination
• Locking Mechanism: Flip lock and backlock features
• Compliance: RoHS compliance and UL94 V-0 flammability rating
• Operating Range: -55°C to 85°C

The substitute part AYF530665T meets all these criteria and is classified as a direct equivalent within the same product series.

Parameter Comparison

Engineering Selection Recommendations

Both AYF530665 and AYF530665T are active production parts from Panasonic Electric Works with identical electrical and mechanical specifications. Selection between these parts is based on availability and packaging designation. The AYF530665T variant is designated as a tape and reel packaged part with higher inventory availability (3100 pcs vs 780 pcs). Both parts carry RoHS compliance certification and UL94 V-0 flammability rating, meeting regulatory requirements for industrial and consumer applications. The parts are functionally interchangeable for all applications requiring 6-position, 0.5mm pitch FPC connectors with surface mount right-angle configuration and solder termination.

Frequently Asked Questions (FAQ)

Q: Are AYF530665 and AYF530665T electrically identical? A: Yes. Both parts have identical electrical ratings: 50V voltage rating, 0.5A per contact current rating, and -55°C to 85°C operating temperature range.

Q: What is the difference between AYF530665 and AYF530665T? A: The parts are functionally equivalent. The primary difference is packaging designation and inventory availability. AYF530665T is the tape and reel variant with higher stock levels.

Q: Can I use AYF530665T as a direct replacement for AYF530665 in PCB assembly? A: Yes. Both parts have identical mechanical dimensions, mounting type (surface mount right-angle), contact configuration (top and bottom), and termination method (solder). They are directly interchangeable in PCB designs.

Q: Are both parts RoHS compliant? A: Yes. Both AYF530665 and AYF530665T are RoHS compliant and carry UL94 V-0 flammability certification.

Q: What is the pitch specification for these connectors? A: Both parts feature 0.020" (0.50mm) pitch, which determines compatibility with 0.5mm spaced FPC cables and mating connectors.

Q: How many mating cycles are rated for these connectors? A: Both parts are rated for 20 mating cycles, defining the expected mechanical durability for connection and disconnection operations.

Q: What is the moisture sensitivity level for these parts? A: Both parts have MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage and handling.
