AXW1164A Equivalent & Substitute Parts

Part Overview

The AXW1164A is a 16-position rectangular connector housing manufactured by Panasonic Industrial Automation Sales. This socket housing component is designed for 0.100" (2.54mm) pitch applications and operates within the -65°C to 105°C temperature range. The part is currently in active inventory with 697 units available as new original stock. Equivalent and substitute parts are identified to support procurement flexibility, supply chain continuity, and design standardization across compatible connector systems.

Substiute Parts

AXW1164A

Panasonic Industrial Automation SalesIn Stock: 786AXW1164A Datasheet

Current PartRFQ

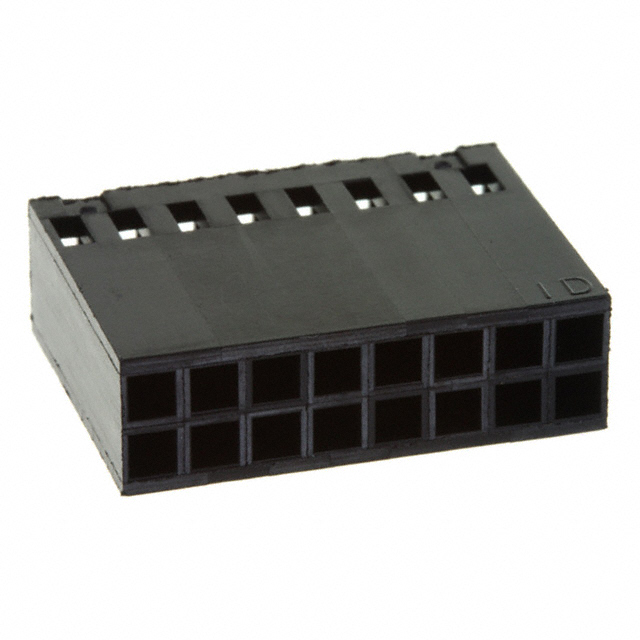

1-87456-1

TE Connectivity AMP ConnectorsIn Stock: 42681-87456-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the AXW1164A is determined by the following critical parameters:

• Number of Positions: 16 positions (fixed requirement)
• Pitch Specification: 0.100" (2.54mm) (fixed requirement)
• Number of Rows: 2 rows (fixed requirement)
• Row Spacing: 0.100" (2.54mm) (fixed requirement)
• Operating Temperature Range: -65°C ~ 105°C (minimum acceptable range)
• Connector Type Compatibility: Socket housing to receptacle housing compatibility
• Contact Termination Method: Crimp termination (standard for this category)
• Insulation Material: Polyamide (PA), Nylon, Glass Filled (acceptable material class)

The substitute part 1-87456-1 meets all critical dimensional and electrical parameters required for functional equivalence within rectangular connector housing applications.

Parameter Comparison

Engineering Selection Recommendations

Both the AXW1164A and 1-87456-1 are active products suitable for 16-position, 2.54mm pitch rectangular connector applications. The substitute part 1-87456-1 carries ROHS3 compliance certification and MSL Level 1 rating, providing additional regulatory documentation for applications requiring environmental compliance verification. Selection between these parts should be based on:

• Existing connector system architecture and series compatibility requirements
• Supply chain availability and lead time considerations
• Regulatory compliance documentation requirements for the end application
• Mechanical mounting and fastening interface requirements within the assembly

Frequently Asked Questions (FAQ)

Q: Can the AXW1164A be directly replaced with 1-87456-1?

A: Both parts share identical critical parameters: 16 positions, 0.100" (2.54mm) pitch, 2-row configuration, and equivalent operating temperature range. Substitution is mechanically and electrically valid when connector system architecture supports cross-manufacturer compatibility.

Q: What is the difference between socket and receptacle housing types?

A: The AXW1164A is specified as a socket housing, while 1-87456-1 is a receptacle housing. Both are housing components designed to accept crimp contacts. Compatibility depends on the mating connector type and system design requirements.

Q: Are there packaging differences between these parts?

A: The AXW1164A packaging is not specified in available documentation. The 1-87456-1 is supplied in bulk packaging. Packaging format may affect handling, storage, and integration into assembly processes.

Q: What does MSL Level 1 mean for the 1-87456-1?

A: MSL (Moisture Sensitivity Level) 1 indicates unlimited shelf life without moisture control requirements. This classification simplifies storage and handling procedures compared to higher MSL ratings.

Q: Is RoHS compliance required for both parts?

A: The AXW1164A RoHS status is not specified. The 1-87456-1 is ROHS3 compliant. Applications requiring documented RoHS compliance should reference the 1-87456-1 specification or obtain RoHS documentation for the AXW1164A from the manufacturer.
