AXT420124 Equivalent & Substitute Parts Reference

Part Overview

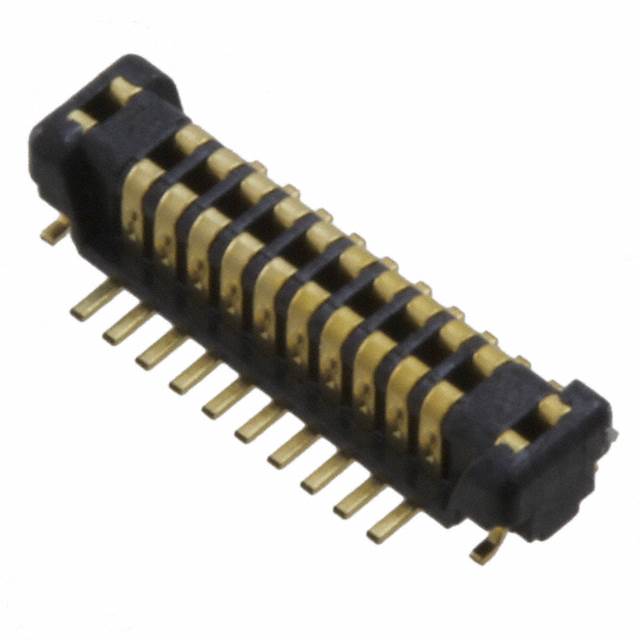

The AXT420124 is a 20-position rectangular connector header manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as an active product with full RoHS compliance and MSL Level 1 rating, indicating unlimited moisture exposure tolerance during storage and handling.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across connector position count, pitch spacing, mounting technology, contact finish, and physical stacking heights. Alternative packaging configurations may be necessary due to inventory availability or supply chain requirements while preserving functional compatibility in circuit board assembly.

Substiute Parts

AXT420124

Panasonic Electric WorksIn Stock: 8940AXT420124 Datasheet

Current PartRFQ

AXT420124A

Panasonic Electric WorksIn Stock: 1209AXT420124A Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXT420124 is determined by strict equivalence across the following critical parameters:

• Connector Position Count: 20 positions (non-negotiable)
• Pitch Spacing: 0.016" (0.40mm) center-to-center (non-negotiable)
• Row Configuration: 2 rows (non-negotiable)
• Connector Type: Header with center strip contacts (non-negotiable)
• Mounting Technology: Surface mount (non-negotiable)
• Contact Finish: Gold plating (non-negotiable)
• Physical Dimensions: Height above board 0.049" (1.25mm); mated stacking heights 1.5mm and 2.5mm (non-negotiable)
• Compliance: RoHS compliant; MSL Level 1 (non-negotiable)

The identified substitute part AXT420124A maintains all electrical and mechanical parameters identical to the main part. The only variance is packaging configuration: the main part is supplied in Tape & Reel (TR) format, while the substitute is supplied in Strip format. Both originate from the same manufacturer series (P4S) and share the same base product number (AXT420).

Parameter Comparison

Engineering Selection Recommendations

Both AXT420124 and AXT420124A are active products from Panasonic Electric Works with identical RoHS compliance and MSL Level 1 certification. Selection between these parts is determined by assembly process requirements and packaging handling capabilities.

The AXT420124 in Tape & Reel packaging is optimized for automated pick-and-place assembly operations, providing controlled component feeding and reduced manual handling. The AXT420124A in Strip packaging accommodates manual assembly workflows or lower-volume production runs where automated reel handling is not required.

Both parts satisfy identical electrical and mechanical interface requirements. Substitution between these variants does not affect circuit board layout, PCB footprint design, or mating connector compatibility. The choice between packaging formats is a manufacturing logistics decision rather than a functional compatibility issue.
