AXT330264 Equivalent & Substitute Parts

Part Overview

The AXT330264 is a 30-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with gold-plated contacts and solder retention features. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing production and design continuity. The substitute part AXT330224 provides functional equivalence while maintaining active product status and full compliance with current regulatory requirements.

Substiute Parts

AXT330264

Panasonic Electric WorksIn Stock: 1018AXT330264 Datasheet

Current PartRFQ

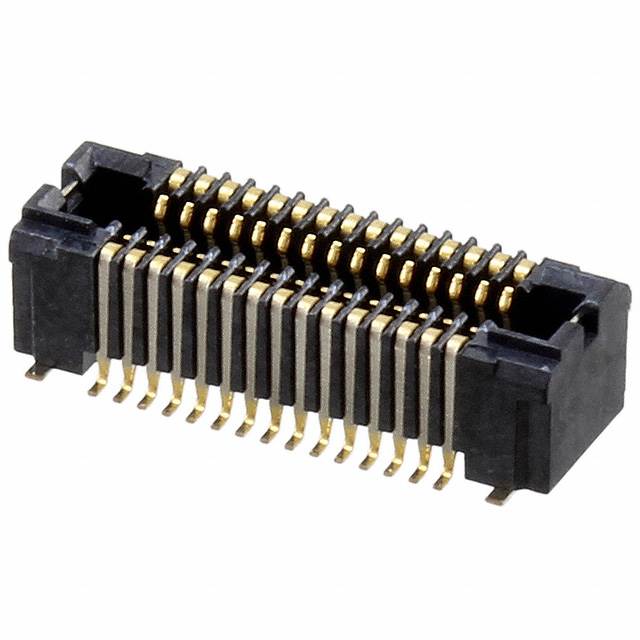

AXT330224

Panasonic Electric WorksIn Stock: 2619AXT330224 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The AXT330224 qualifies as a direct substitute for the AXT330264 based on identical electrical and mechanical parameters. Both components share the same base product number (AXT330), connector configuration, position count, pitch spacing, mounting methodology, and contact specifications. The substitution is valid across all critical dimensions: 30-position socket configuration, 0.40mm pitch, dual-row arrangement, surface mount technology, gold contact finish, and 2.45mm height above board. The primary distinction between these parts is product status and packaging format, not functional capability.

Parameter Comparison

Engineering Selection Recommendations

The AXT330224 is the appropriate selection for new designs and production continuity. This part maintains identical electrical and mechanical specifications to the AXT330264 while offering active product status, ensuring long-term availability and supply chain stability. The AXT330224 provides RoHS compliance certification, meeting current environmental and regulatory standards. Tape & Reel packaging of the AXT330224 supports automated assembly processes, offering manufacturing efficiency advantages over bulk packaging. Both components share identical contact configuration, pitch spacing, and mounting characteristics, enabling direct substitution without circuit board redesign or assembly process modification.

Frequently Asked Questions (FAQ)

Q: Can AXT330224 replace AXT330264 in existing designs? A: Yes. Both parts are identical in electrical and mechanical specifications, including connector type, position count, pitch, mounting type, contact finish, and board height. Direct substitution is valid without design modification.

Q: What is the primary reason for substitution? A: The AXT330264 is obsolete. The AXT330224 provides the same functionality with active product status, ensuring continued availability and supply chain support.

Q: Are there packaging differences between these parts? A: Yes. The AXT330264 is supplied in bulk packaging, while the AXT330224 is supplied in Tape & Reel format. Tape & Reel packaging is optimized for automated surface mount assembly processes.

Q: Does the AXT330224 meet current compliance requirements? A: Yes. The AXT330224 is RoHS compliant, meeting current environmental and regulatory standards. Both parts share identical Moisture Sensitivity Level 1 (Unlimited) ratings.

Q: Are the physical dimensions identical? A: Yes. Both parts have identical height above board (0.096" / 2.45mm), mated stacking heights (2.5mm, 3mm), pitch (0.40mm), and row configuration (2 rows, 30 positions).

Q: Can these parts be used interchangeably in assembly? A: Yes. Identical mounting type (surface mount), contact finish (gold), and solder retention features enable direct interchangeability in PCB assembly without process changes.
